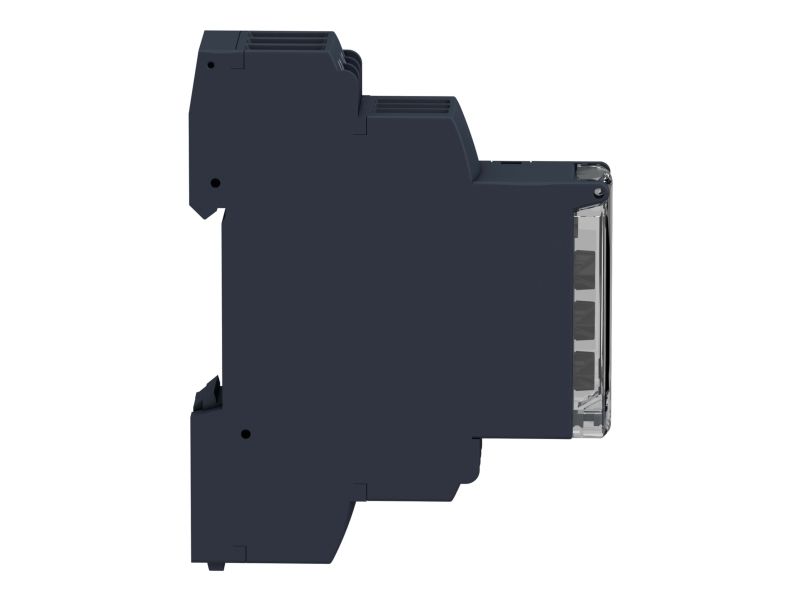

SCHNEIDER ELECTRIC Jänniterele RM17-U 3x208-480VAC 2CO

RM17 UB3 and RM35 UB3 Three-Phase Voltage Control Relay
Schneider Electric RM17/35 UB measurement and control relays for 3 phase supplies, monitor correct sequences of phases L1, L2 and L3. It also monitors total loss of one or more phases, asymmetry, and over and undervoltage with independent adjustments. In the event of voltage fault, the relay opens at the end of the time delay set by the user, if the device is switched on with a measured fault, the relay remains open.
Checks its own power supply
Clear hinged front cover
Potentiometer selects voltages between phases
LED display of output status
DIN Rail mounting
Standards
NF EN 60255-6 and IEC 60255-6
Approvals
UL, CSA, GL, C-Tick, GOST
Schneider Electric Harmony Control Series Monitoring Relay, SPDT Contact Configuration, Voltage Monitoring Application - RM17UB310
This monitoring relay is designed for voltage oversight in three-phase electrical systems. It identifies overvoltage and undervoltage scenarios, ensuring efficient operation of electrical equipment. By offering real-time feedback, this device helps safeguard against potential damage, enhancing system reliability.
Features & Benefits
- Adjustable time delay from 0.3 to 30 seconds provides flexibility
- Monitors phase voltage to avert system failures
- SPDT relay configuration accommodates various applications
- Compact DIN rail mounting simplifies installation
- Operating temperature range of -20?°C to +50?°C supports diverse conditions
- High maximum voltage sensing of 528V AC enhances dependability
Applications
- Suitable for three-phase supply systems for voltage monitoring
- Used in industrial control systems to improve automation
- Applicable in machinery to protect against power fluctuations
- Employed in electrical panels for proactive fault notification
What is the best way to install the device on a DIN rail?
The device can be securely mounted on a standard 35mm DIN rail for optimal operation.
How can the sensitivity settings be adjusted?
The relay has adjustable thresholds for voltage detection, allowing configuration directly from the front panel.
What maintenance is required to ensure proper functioning?
Regular checks should be performed to ensure secure connections and inspect for any signs of wear.
How does it indicate operational status?
The relay features LED indicators for power and relay status, providing clear visual confirmation of its operational state.
