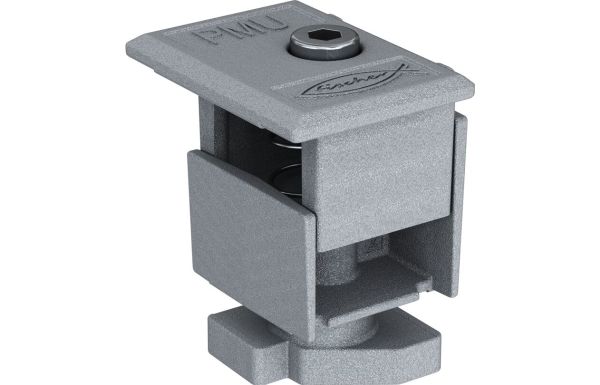

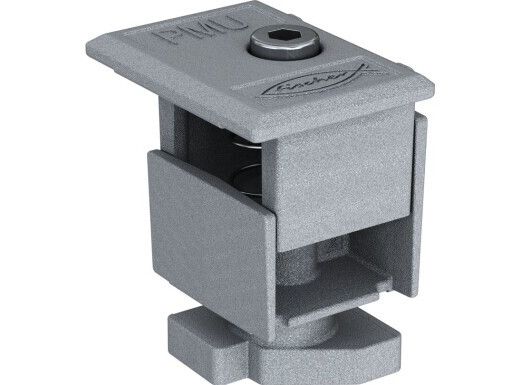

Fischer 519784, Päätypuristin, Alumiini, 10 kpl

Universal end clamp for PV panels with aluminium frame from 30 to 50 mm thick
Advantages
- Full range: the PM U pre-assembled universal clamp can fix all photovoltaic modules with a thickness of 30 mm to 50 mm.
- Versatile: the PM U pre-assembled universal clamp can be used both as an end clamp and as a central clamp.
- Fixing: thanks to the smart nut, the PM U pre-assembled universal clamp can be quickly hooked and locked at any point on the support rail.
- Compact: the recessed screw in the element avoids shadowing on adjacent modules.
- Convenient: thanks to the spring, the PM U pre-assembled universal clamp remains raised during the tightening phases.
- Complete: the PM U pre-assembled universal clamp does not require additional elements (for example: screws, gaskets, nuts).

PM U is the universal clamp for PV panels from 30 to 50 mm thickness, which can be used both as central clamp or end clamp. PM U fits quickly inside the profiles by simply rotating it. Compatible with SolarLight, SolarFish, SolarMid, SolarFlat and SolarMetal rails.

Properties
- Clamp in EN AB 46100 aluminium alloy in accordance with EN 755-2:2013.
- A2-70 stainless steel Allen screw in accordance with EN ISO 3506-1/2:2009.

Functionality
- Insert the lower part of the PM U pre-assembled universal clamp into the upper groove of the rail.
- Turn the PM U pre-assembled universal clamp clockwise to use it as an end clamp and anticlockwise to use it as a central clamp.
- Lock the PV module by applying a tightening torque of 10 Nm to the Allen screw (TCEI).
