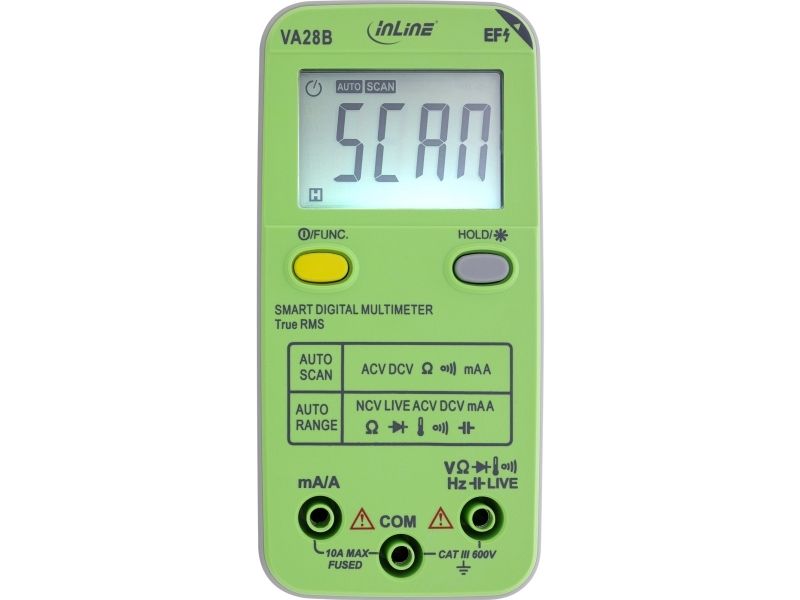

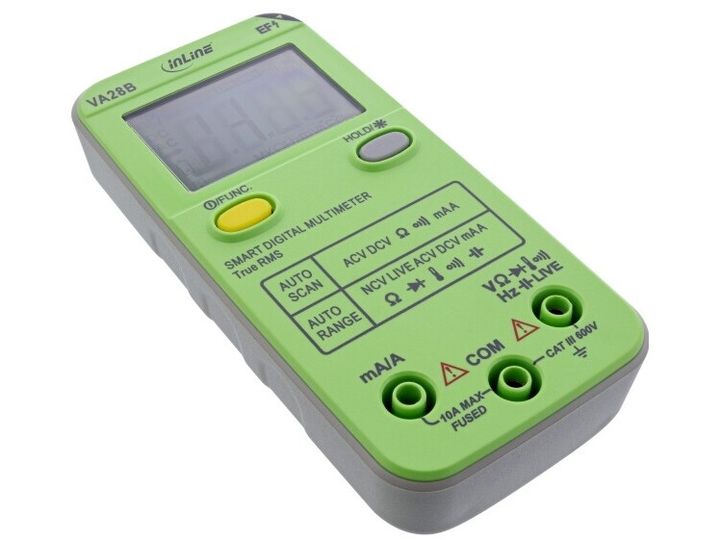

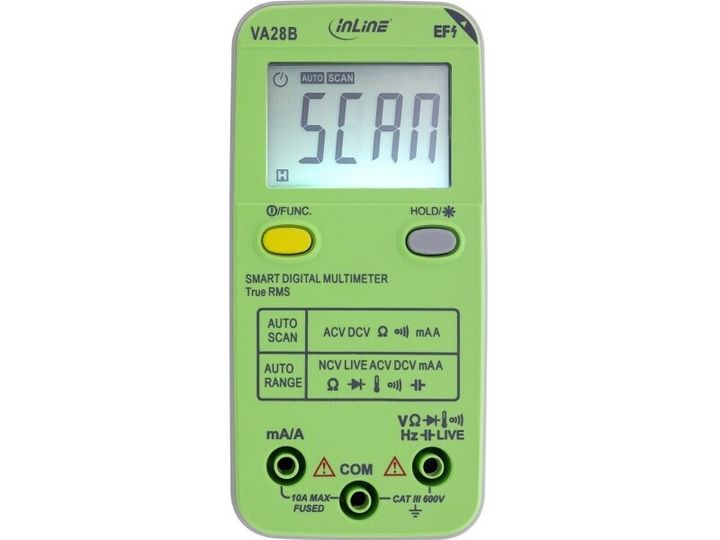

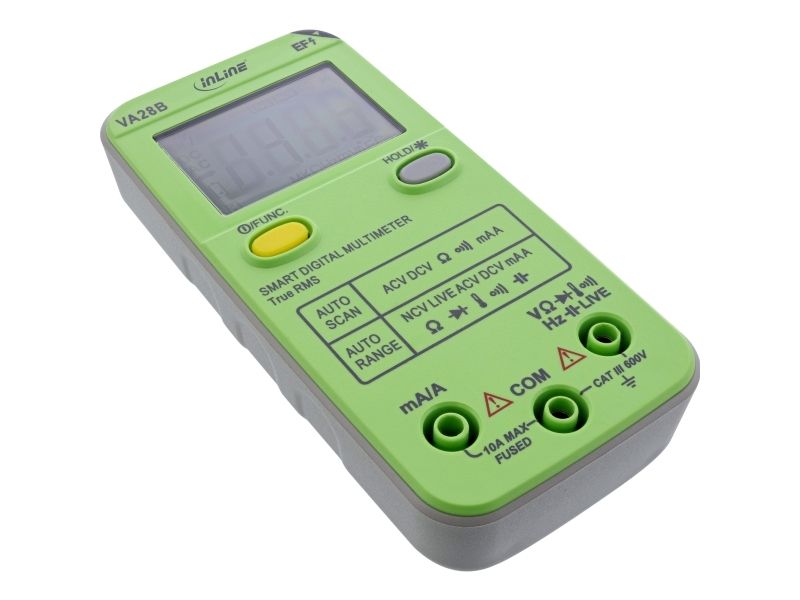

InLine 43117B, LCD, 44 x 30 mm, AC, AAA, 1,5 V, 62 mm

Compact multimeter for fast, safe on-site measurements

Space-saving in use:Pocket size 130 x 62 x 27 mm fits in tool bags and drawers.
Time-saving measurement without range selection:Auto-Range and Autoscan automatically detect voltage, current, and resistance.
Reliable results on modern loads:True RMS delivers reliable results even with distorted signals.
Additional safety in testing:NCV/LIVE test and CAT III 600 V for lower-risk voltage checks.
Good readability everywhere:Backlight and integrated flashlight support in dark environments.

The pocket-size multimeter simplifies everyday measurement tasks: Auto-Range and Autoscan accelerate checks of AC/DC voltage and current, resistance, and continuity, while True RMS provides reliable values even for non-sinusoidal signals. The NCV/LIVE function enables non-contact voltage detection, and the LCD remains easy to read thanks to the backlight.
In on-site installations, service deployments, maintenance, and troubleshooting in existing infrastructures, the device supports precise, rapid measurements in companies and public institutions as well as in professional work environments.

Dimensions:130 x 62 x 27 mm
Auto-Range measurement functions:ACV, DCV, resistance, continuity, diode, forward voltage, capacitance, NCV, LIVE, mA, A
Autoscan:ACV, DCV, resistance, continuity, mA, A
DC voltage:400 mV, 4 V, 40 V, 400 V, 600 V
AC voltage:400 mV, 4 V, 40 V, 400 V, 600 V
DC current:4000 mA-10 A
AC current:4000 mA-10 A
Resistance:400 Ohm, 4 kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm
Capacitance:4.000 nF-1.000 mF
Temperature:-200 °C to 1200 °C
Frequency:10 Hz-40 kHz
Display:LCD, 3999
Display size:44 x 30 mm
Safety category:CAT III 600 V
Functions:Auto power-off, backlight, flashlight
Power supply:2 x 1.5 V AAA (included)
