Benefits Protection of human life and the environment thanks to the avoidance of the formation of acid in case of fire Time-saving assembly.
Application range For wiring of lamps, devices, switchgear cabinets and distribution boxes For installation in tubes, on, in and under plaster as well as in closed installation ducts In building with a high density of people or valuable assets For use in dry rooms For expanded ambient temperatures and higher conductor cross-sections see ÖLFLEX® HEAT 125 SC
Norm references / Approvals cable type certification acc. EN 50525-3-41 No cable type certified core insulation colours according to EN 50525-1/ VDE 0285-525-1: transparent, green (single colour), yellow (single colour), all double colours (except of green-yellow and yellow-green).

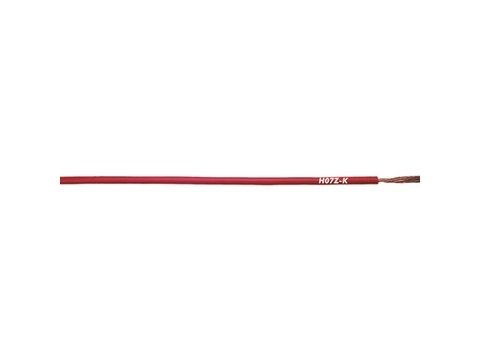

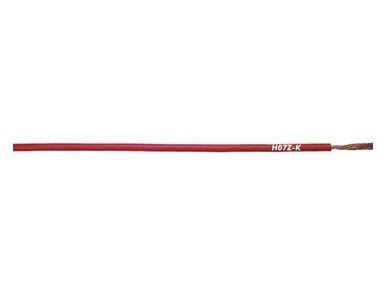

Product Make-up Fine-wire strand made of bare copper wires Core insulation: Halogen-free
Johdon pituus
100 m
Kaapelin sydämien lukumäärä
1
Ytimen koko
16 mm²
Liittimen sukupuoli
Ei
Tuotteen väri
Ruskea
Kaapelin materiaali
Kupari
Kuparin paino
153,6 kg/km
Kaapelin paino
170 kg/km
Koestusjännite
2500 V
Lämpötila-alue (kiinteä asennus)
40 - 90 °C
Lämpötila-alue (taivutus)
5 - 90 °C
Sertifiointi
CE; HAR; EAC; Fire
Kaapelin halkaisija
8,4 mm
Löydämme tuotteen järjestelmästämme helposti seuraavalla tuotenumerolla
EAN:
4044774730844
SKU:
4726036/100
