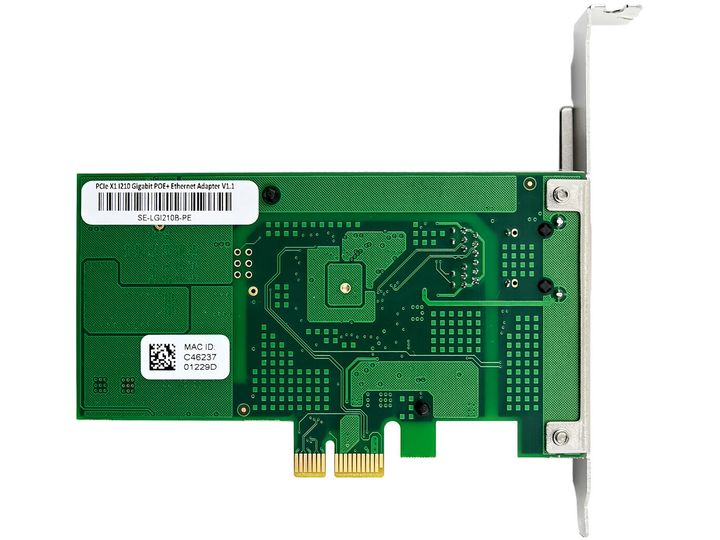

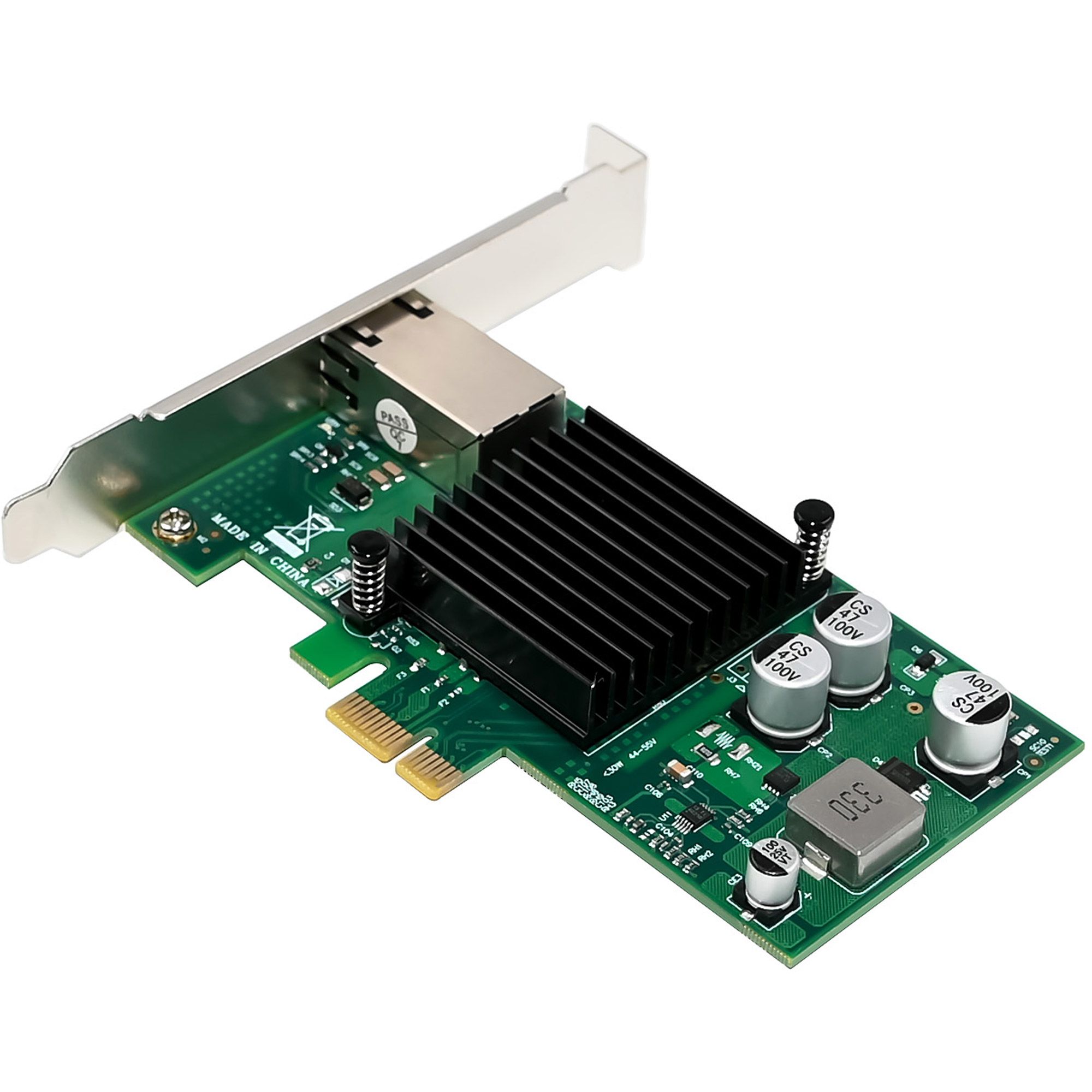

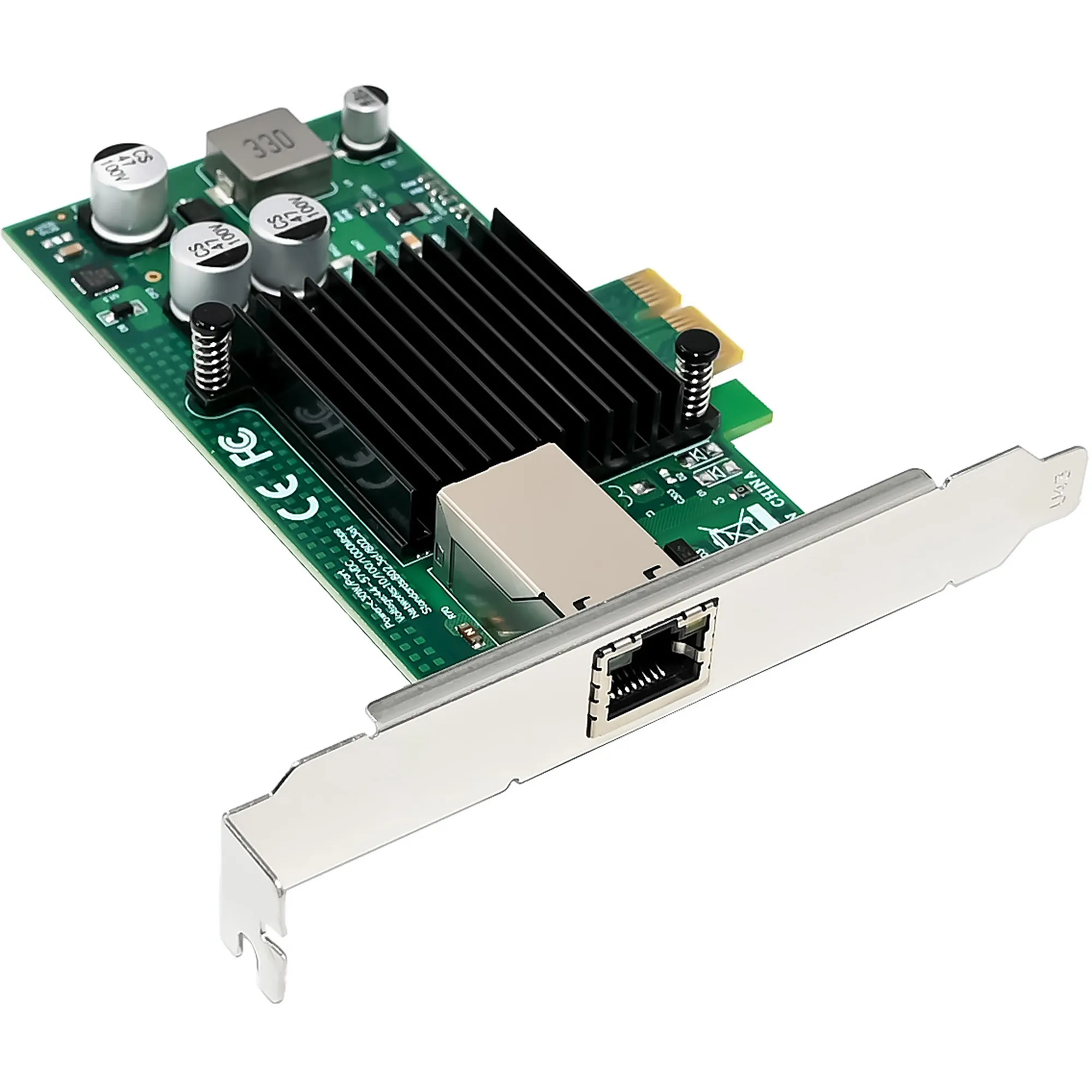

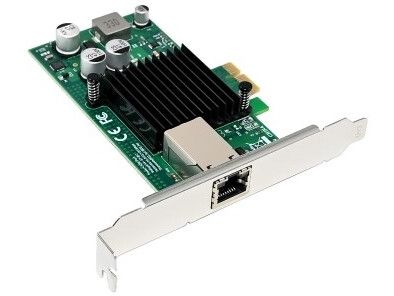

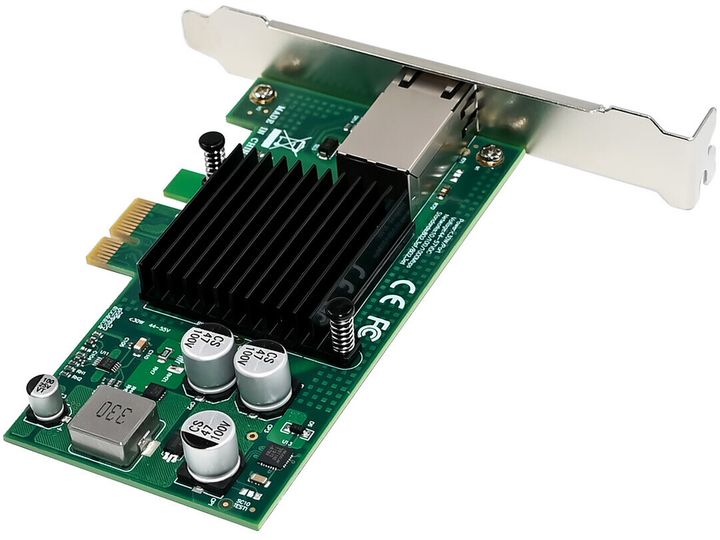

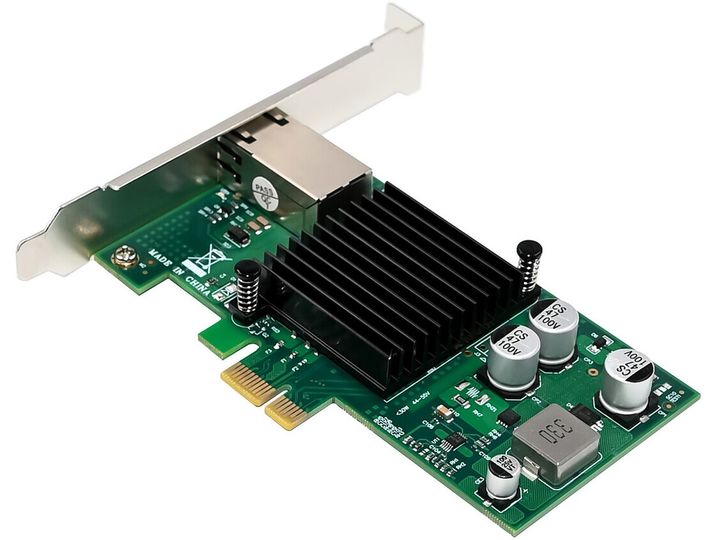

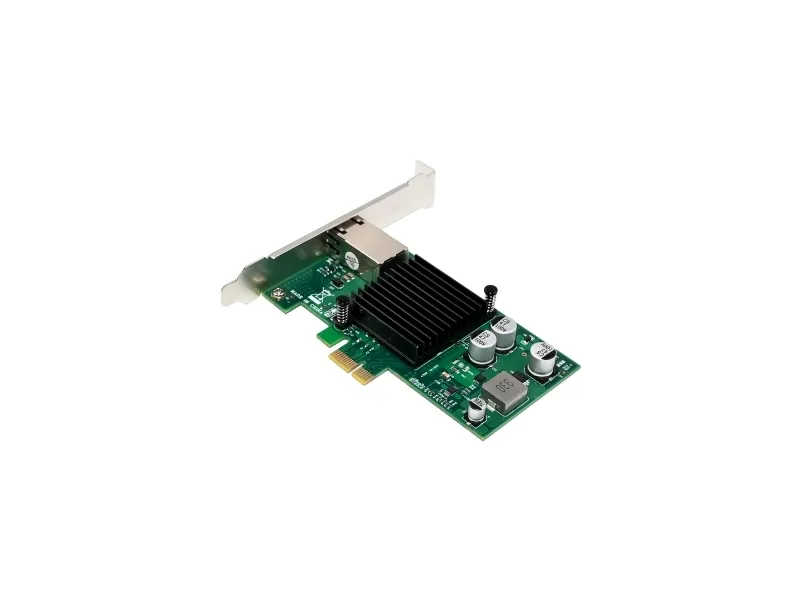

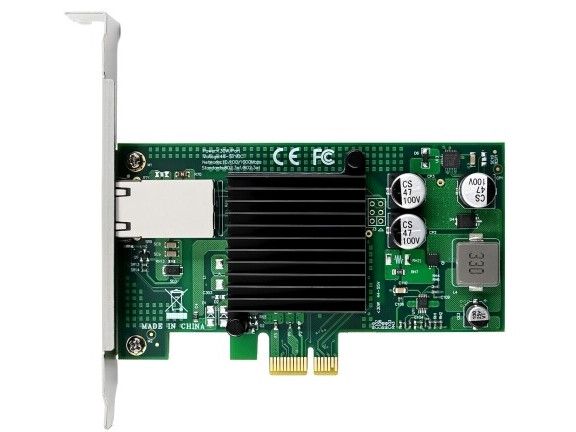

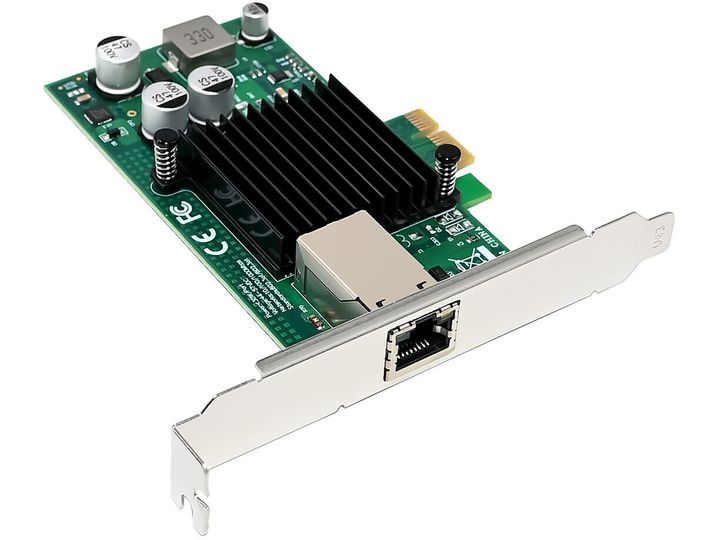

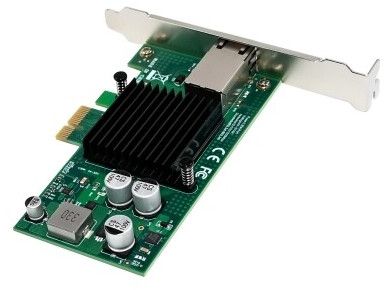

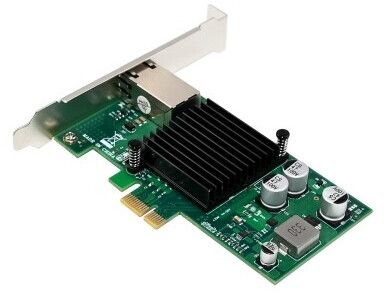

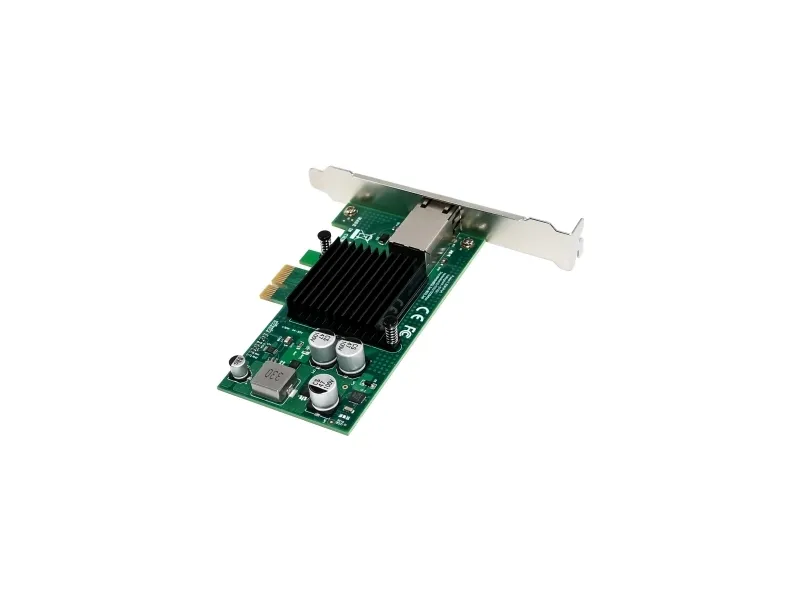

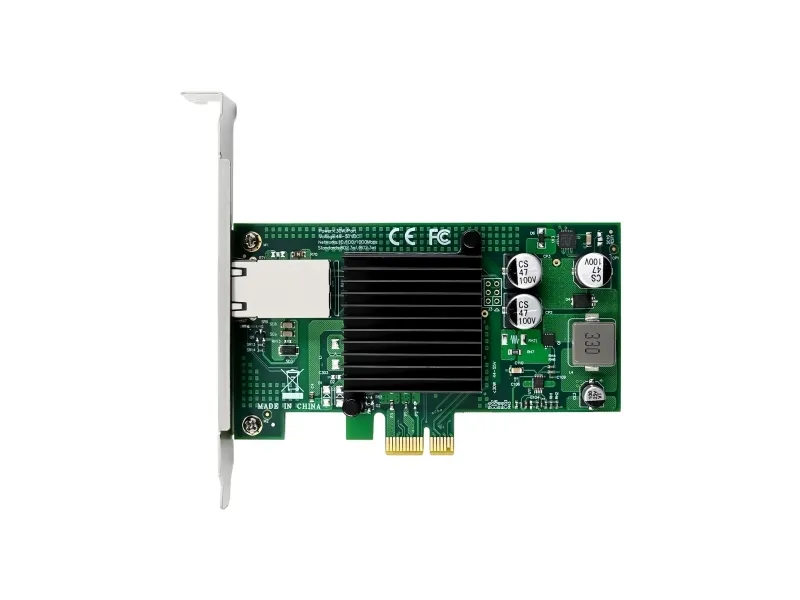

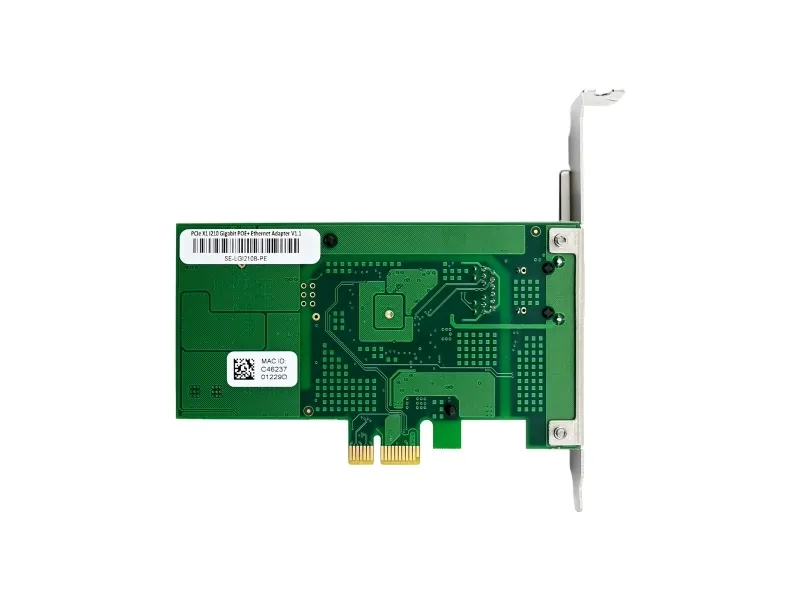

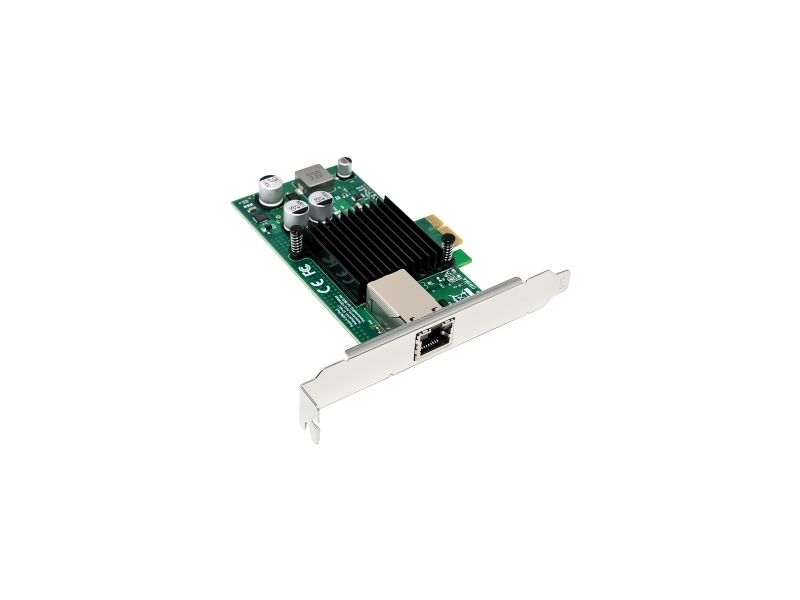

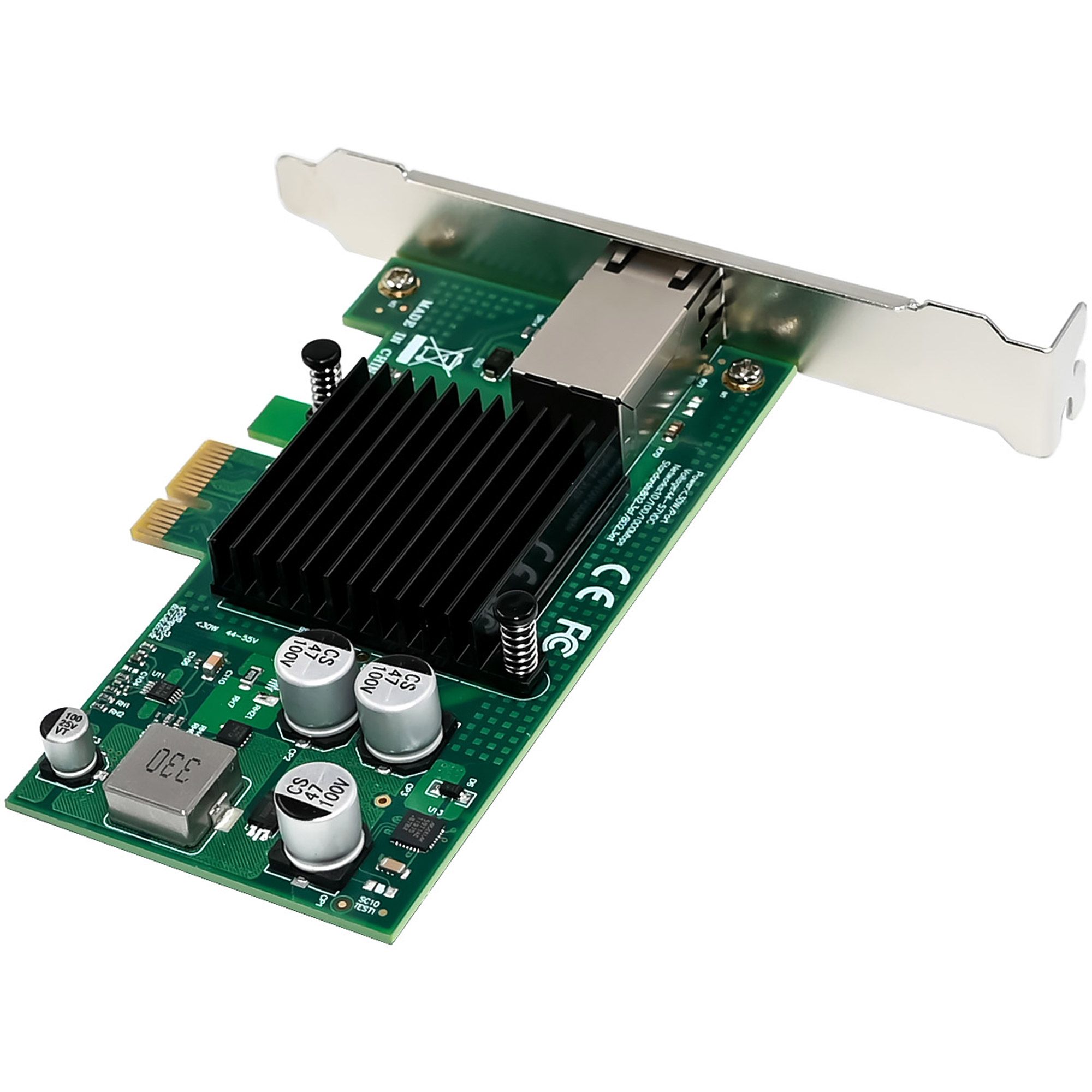

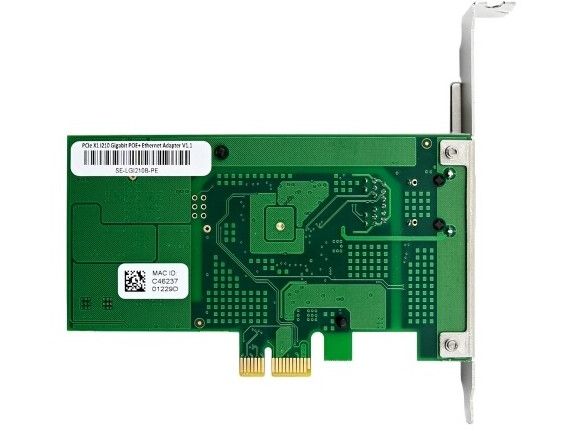

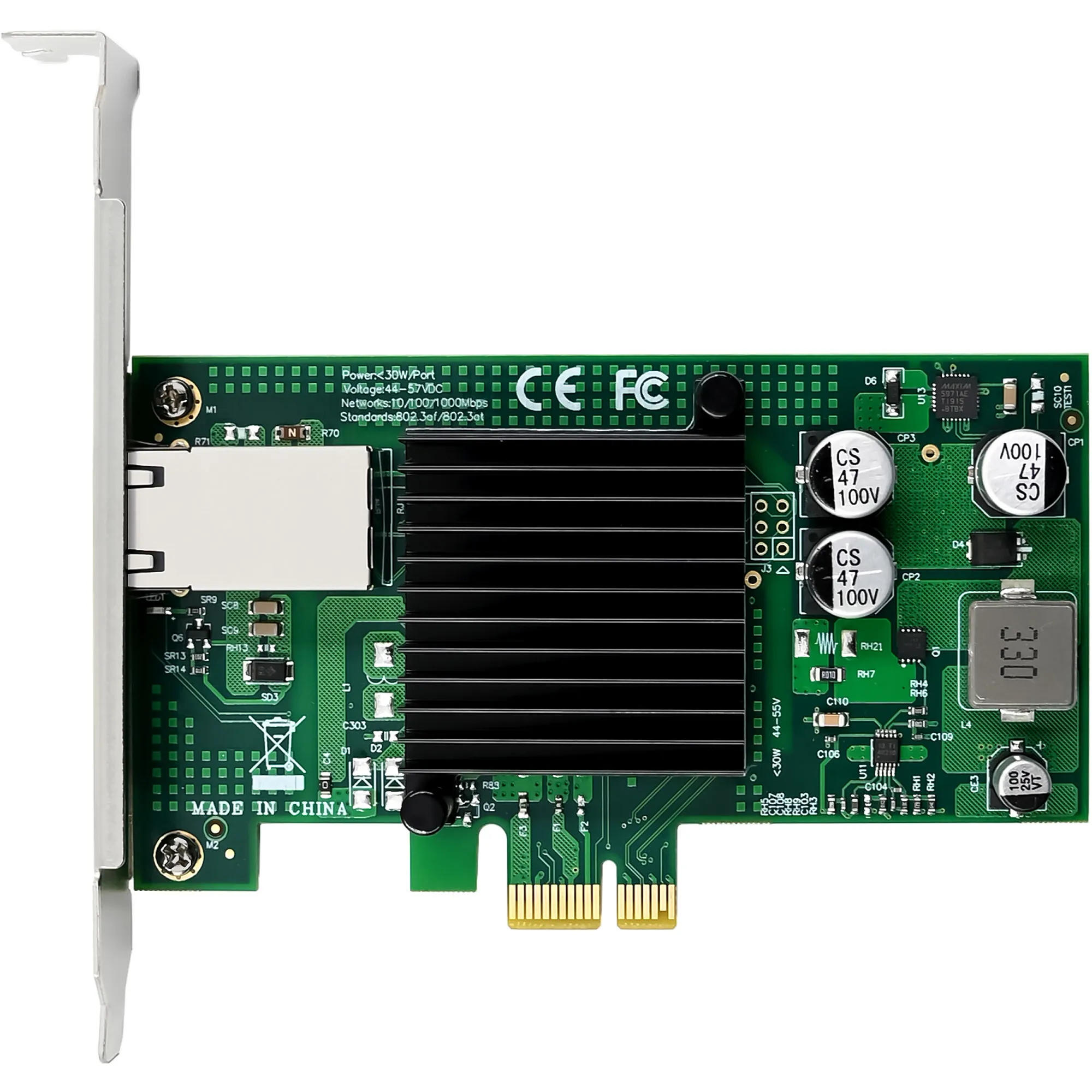

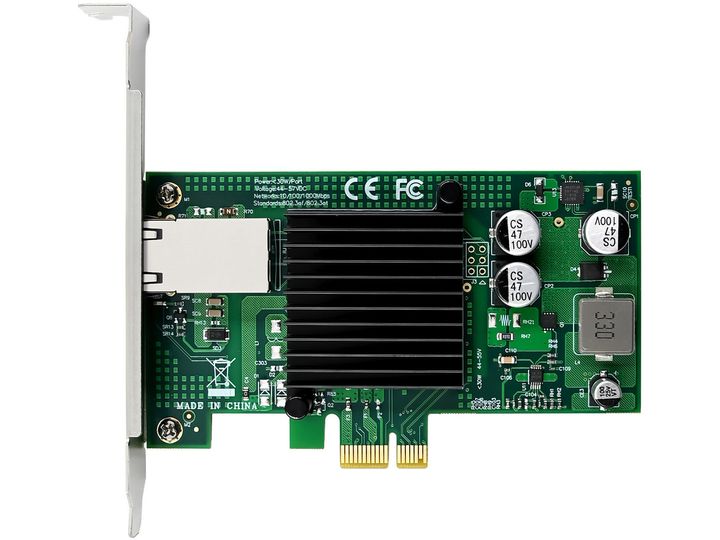

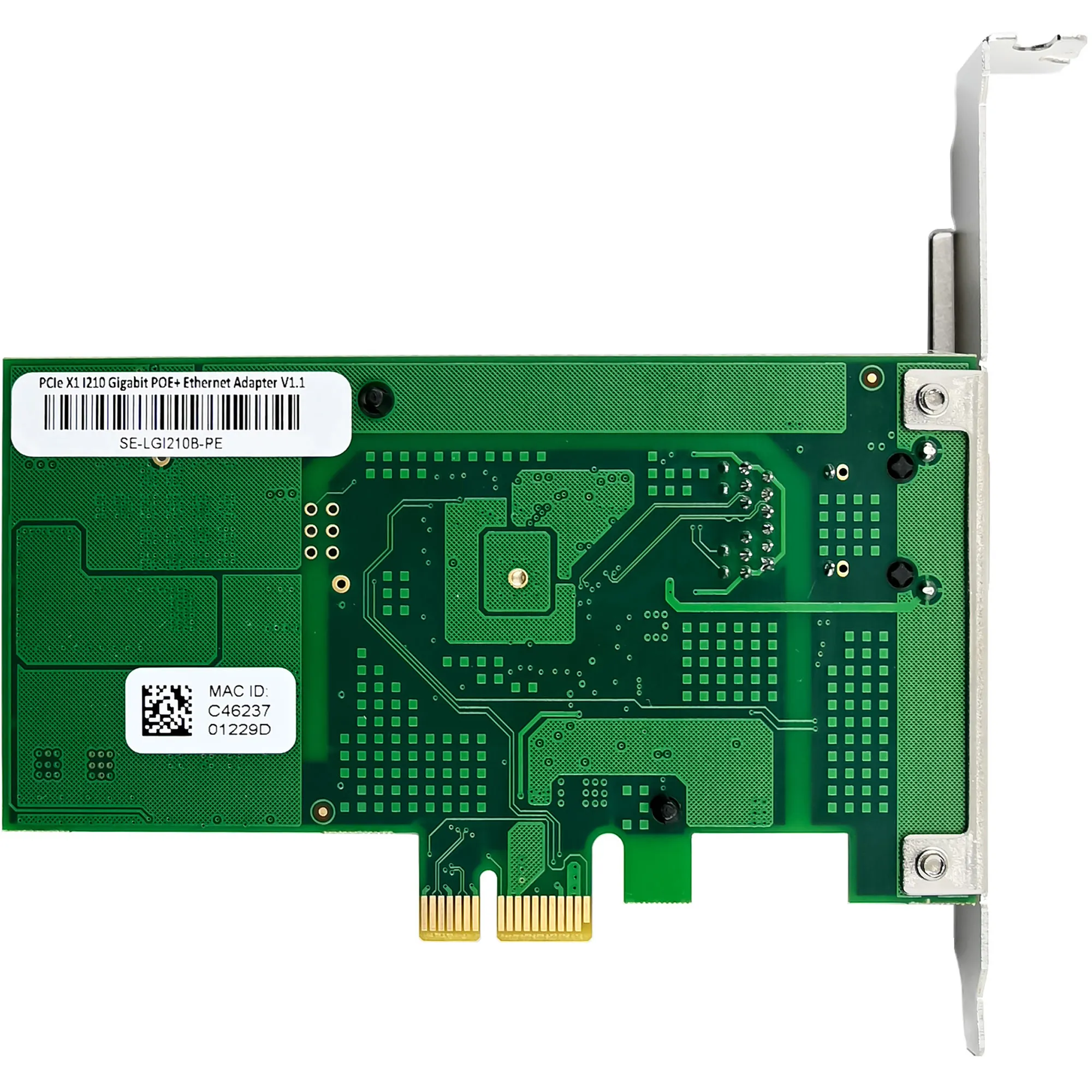

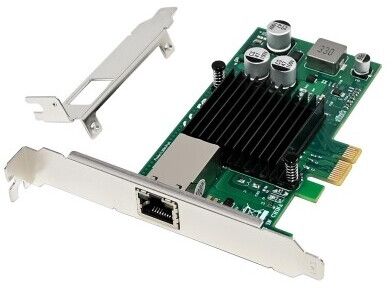

InLine Gigabit-verkkokortti 1x RJ45 1 Gb/s PCIe x1 PoE+ (51125O)
Tuotenumero: [24319570] | Valmistaja: Inline | Mallinum: 51125O | EAN: 4043718341429
Etävarastossa
Tuotetta on etävarastossamme, toimitusaika noin 7-9 työpäivää. Lisätietoja
Toimitusvaihtoehdot - Valitaan kassalla
Budbee Laatikko - Nouda valitsemastasi laatikosta!
Ilmainen toimitus
Bring - Toimitus huoltopisteeseen
7,02
Bring - Kotiinkuljetus -arkisin.
15,12
Toimituskulut on laskettu vastaanottajan postinumeron perusteella:00180 - Helsinki Vaihda postinumero
Syötä postinumero toimitusta varten:
EUR
104,22
ilman ALV 83,04
Kokonaishinta sis. toimitus
104,22
Tämä toiminto vaatii sisäänkirjautumisen. Luo käyttäjä ja voit käyttää listojamme esim. säännöllisiä ostoksia ja toivelistoja varten
Luo käyttäjä
Kirjaudu
Luo käyttäjä
Kirjaudu
Send på mail
Gigabit Ethernet with PoE+for a fast and reliable connection
1x RJ45 connectionwith 10/100/1000 Mb/s data rate
Supports Power over Ethernet Plus (PoE+)with up to 30 W power
Intel WGI210AT chipsetfor high performance and energy efficiency

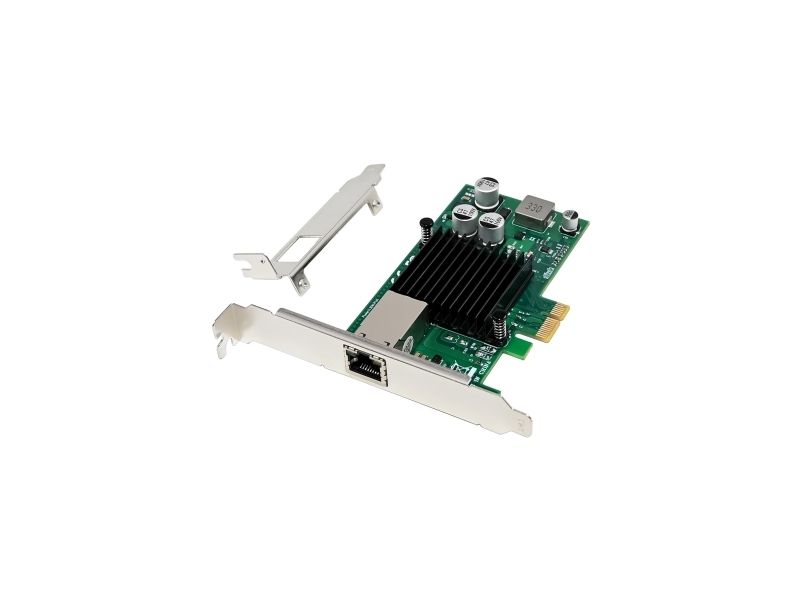

PCIe x1 interfacewith standard and low-profile slot bracket
The InLine® Gigabit network card PoE+offers a powerful and versatile solution for professional use in servers, workstations and AV applications. With an RJ45 Gigabit interface, it enables a reliable 10/100/1000 Mb/s Ethernet connectionand supports modern network technologies for optimized performance and energy efficiency.
Thanks to PoE+ (IEEE 802.3af/at) with up to 30 W, it is ideal for IP cameras, access points and VoIP telephones, which can be supplied with power directly via the network cable - without a separate power source.
Additional features such as VLAN support (802.1Q), Jumbo Frames up to 9K, Flow Control (802.3x)and Virtual Machine Device Queues (VMDq)ensure optimized network performance and efficient use of system resources.
Technical data:
Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
Connection: 1 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Maximum cable length:
10BASE-T: Category 3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category 5e or higher (up to 100 m)
Chip set: Intel WGI210AT
Supported protocols: IPv4, IPv6
PoE+ (Power over Ethernet)
Maximum power: 30 W
Voltage range: 44-57 V DC
Dimension: 115 mm x 69 mm (PCIe board)
Network & protocol support
Supported IEEE standards:
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.1Q (VLAN)
IEEE 802.3af / 802.3at (PoE+)
IEEE 802.1Qav (audio-video bridging)
IEEE 1588 & 802.1AS (precise time synchronization)
Features:
Auto-negotiation (10/100/1000 Mb/s)
MDI/MDI-X (automatic crossover detection)
Receive-Side Scaling (RSS)
Support for jumbo frames (up to 9K)
UDP/TCP & IP checksum offloading
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Interrupt throttling control
Operating system support
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Other: FreeBSD, virtualization environments (e.g. VMware ESXi)
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® Gigabit network card PoE+, 1x RJ45 1Gb/s

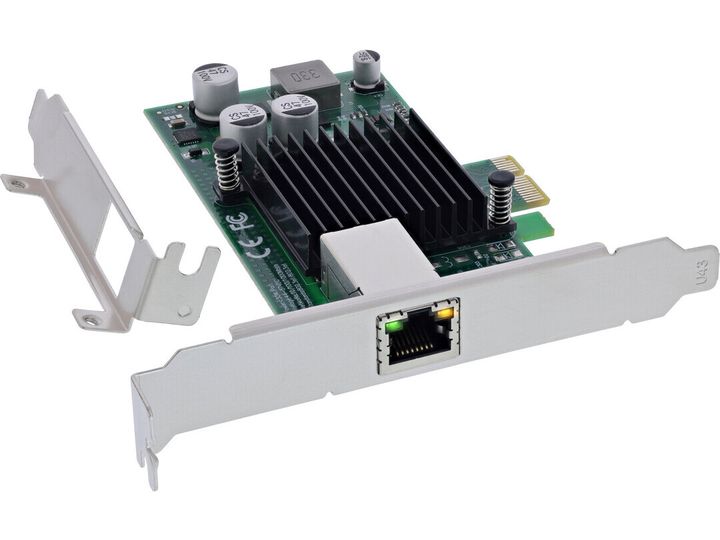

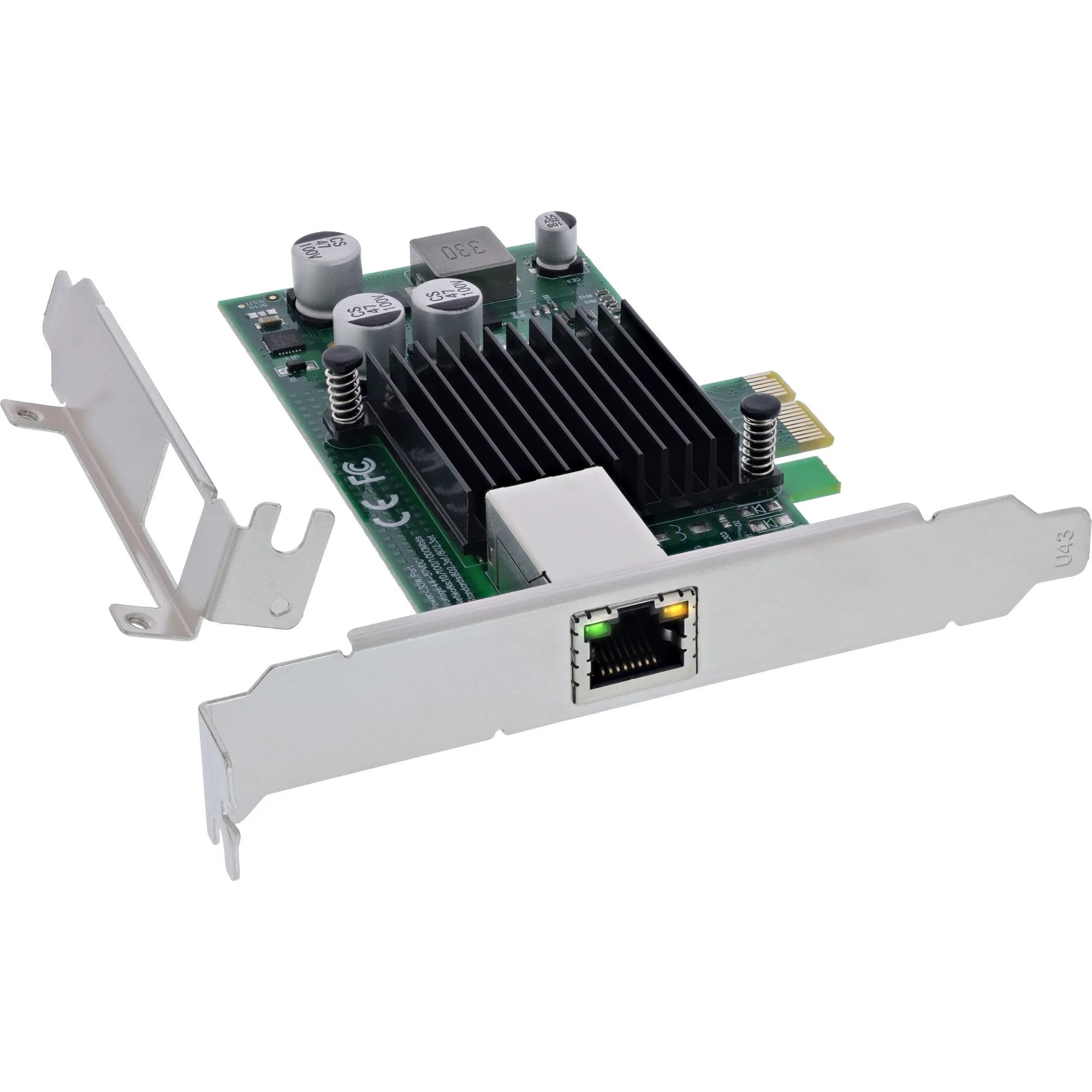

1x low-profile slot bracket
1x driver CD
1x operating instructions (German/English)
