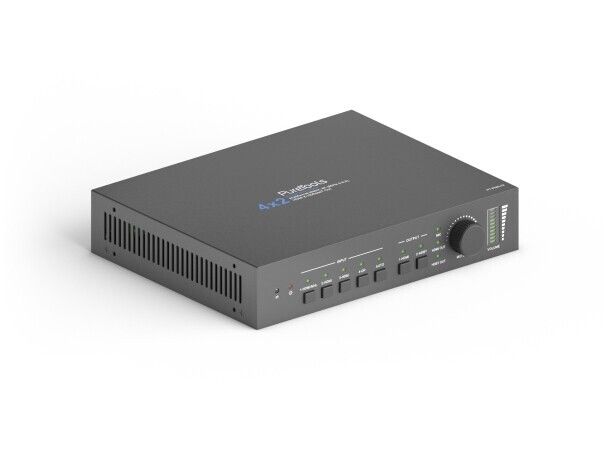

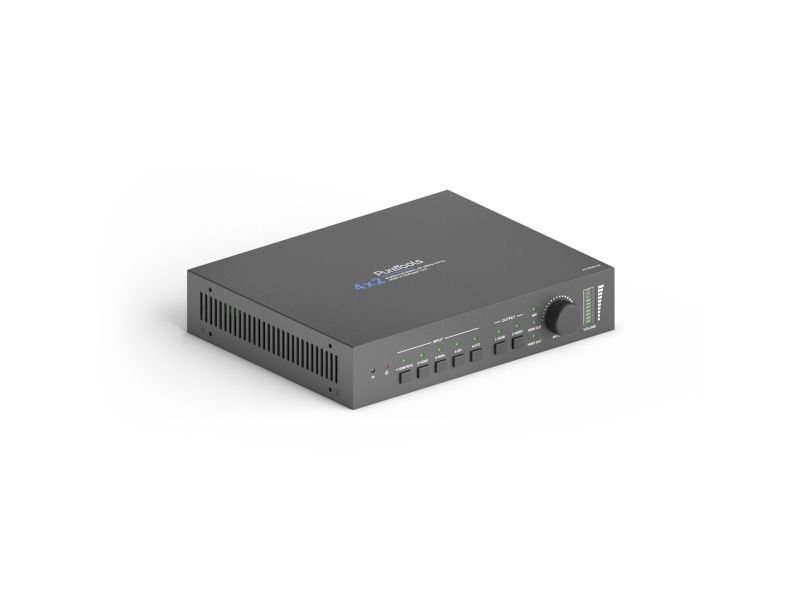

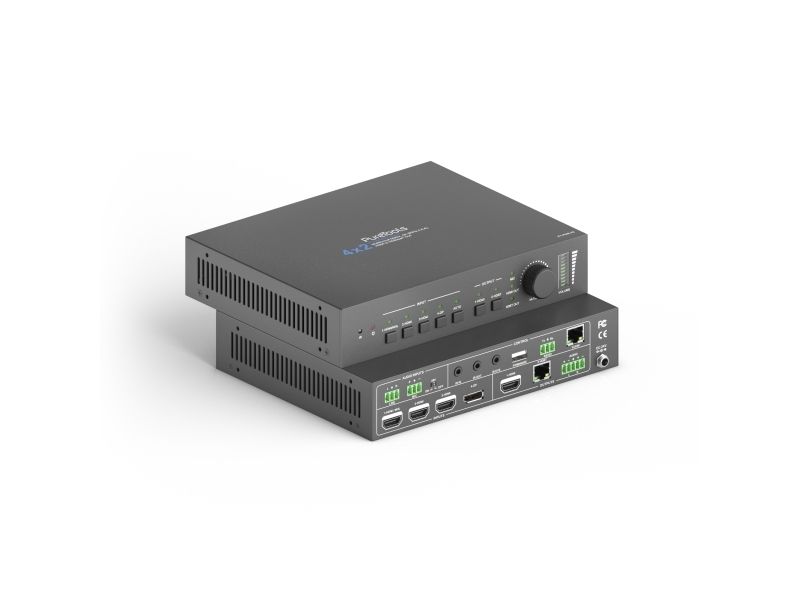

PureTools PT-PMS-42, Mediaesitysten matriisikytkin, 18 Gbit/s, 3840 x 2160 pikseliä, Musta, Metalli, Painikkeet, Rotaatio
Tuotenumero: [25024832] | Valmistaja: PureTools | Mallinum: 510051439 | EAN: 4251364710647
Etävarastossa
Tuotetta on etävarastossamme. Toimitusaika noin 4-5 arkipäivää. Lisätietoja
Toimitusvaihtoehdot - Valitaan kassalla
Bring - Toimitus huoltopisteeseen
Ilmainen toimitus
Bring - Kotiinkuljetus -arkisin.
10,03
EUR
7.014,35
ilman ALV 5.589,12
Kokonaishinta sis. toimitus
7.014,35
Tämä toiminto vaatii sisäänkirjautumisen. Luo käyttäjä ja voit käyttää listojamme esim. säännöllisiä ostoksia ja toivelistoja varten
Luo käyttäjä
Kirjaudu
Luo käyttäjä
Kirjaudu
Send på mail
Multiformat 4x2 4K Presentation Switcher w. PoH, Scaler, etc. and incl. HDBaseT receiver

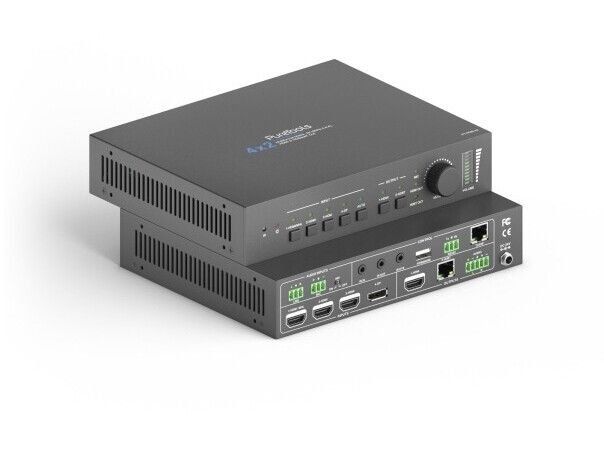

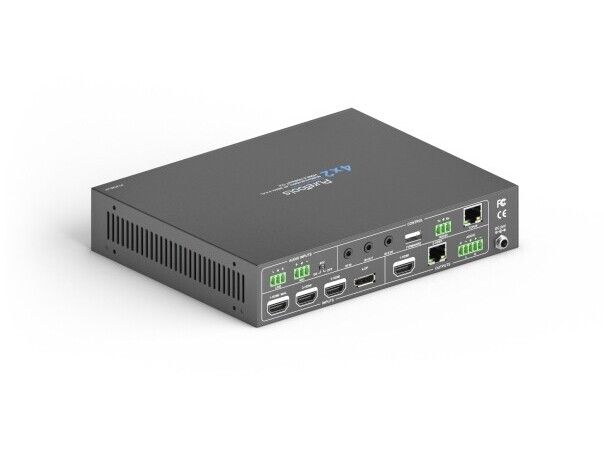

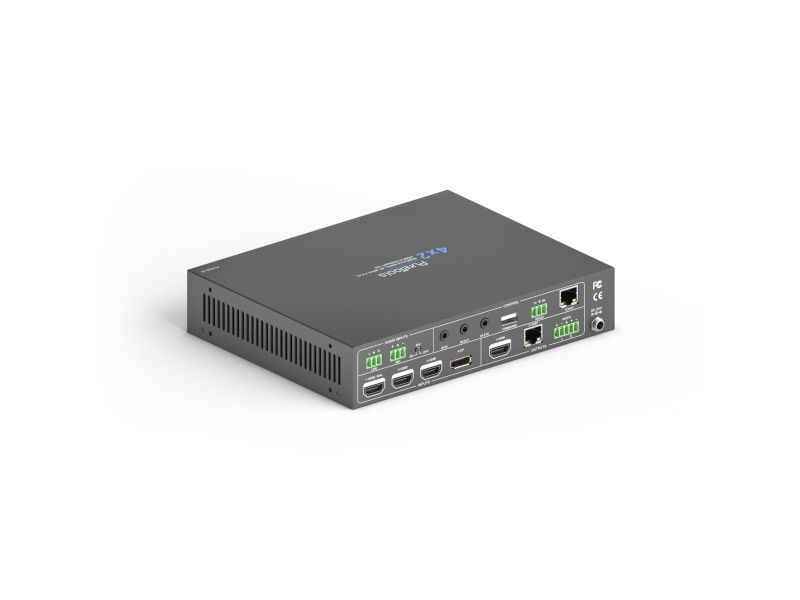

The HDMI 2.0 multi-format presentation switcher PT-PMS-42 with four inputs (3x HDMI 2.0, 1x DisplayPort) and two outputs (1x HDMI, 1x HDBaseT) enables true matrix distribution of the signals and features an integrated scaler as well as various options for audio integration and extraction. This UltraHD / 4K / 2160p compatible HDMI HDBaseT matrix switcher comes with a 4K HDMI2.0 HDBaseT receiver for use with a monitor in a distance of up to 70m. With the ability to route HDMI and DisplayPort input signals and scale the formats to the connected displays, the PT-PMS-42 simplifies integration and allows the simultaneous use of modern source signals (HDMI2.0, DisplayPort) as well as older signal types (HDMI1.4). The audio signal can be separately adjusted for HDMI and HDBaseT, including a bunch of integration and extraction options.
The PureTools Series - High Quality AV Products for Commercial Applications
HDMI 2.0 & DisplayPort Matrix-Presentation Switcher incl. audio distribution, an integrated 4K scaler and HDBaseT 4K receiver included in the delivery The 4x2 multi-format PT-PMS-42 presentation switcher and matrix scaler with four AV inputs combines the features of a 4K / UltraHD / 2160p AV matrix switcher and AV signal scaler with the benefits of HDBaseT signal transmission over a single Cat cable. The HDMI inputs support resolutions up to 4K / UltraHD at 60Hz and with 4:4:4 color subsampling including HDR, 3D, HD lossless audio and up to 18Gbps bandwidth - For full support of thr HDMI 2.0 specifications. HDMI and HDBaseT outputs both support resolutions up to 4K / UltraHD with 60Hz. All input signals can be scaled up to 4K / UltraHD / 2160p.
Convenient control and source selection

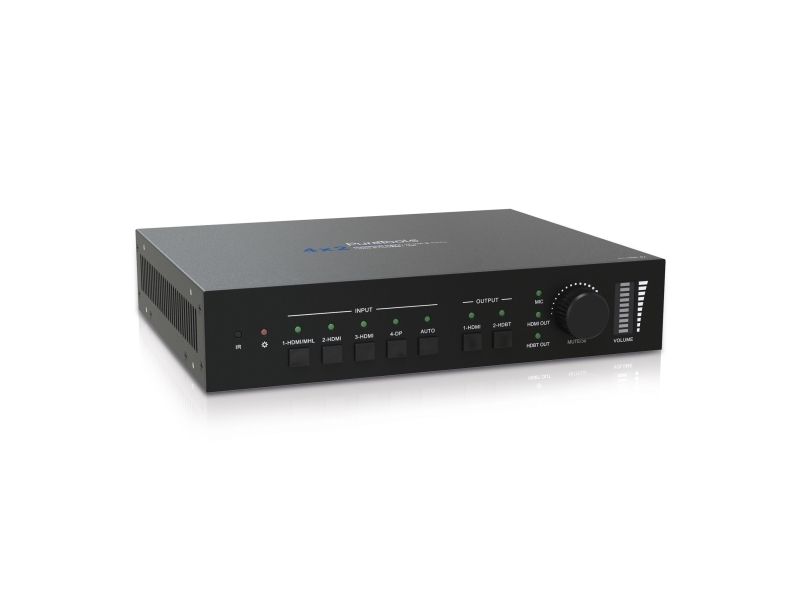

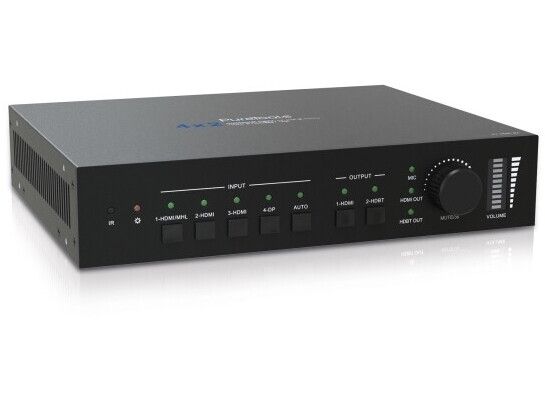

This multiformat 4K matrix switcher with integrated scaler function offers a variety of control options. The input and output signals can be selected via the front keys directly on the device, via RS232, IR remote control (included in delivery) or via TCP/IP commands. The control signals can also be transmitted bi-directionally over distances of up to 70m via HDBaseT.
4x2 4K DisplayPort and HDMI Matrix-Scaler incl. 4K HDBaseT-Receiver
The PT-PMS-42 comes with an HDMI 2.0 4K HDBaseT receiver. The 4x2 matrix switcher, together with the HDBaseT receiver, forms a stand-alone distribution and control system for applications, in which several signals with different resolutions need to be scaled, distributed and optimized for different displays.
PoH / PoC reduces the required power supplies
The PT-PMS-42 can power the included HDBaseT receiver via PoC technology (via HDBaseT) so that no power supply is required on the HDBaseT receiver.
Professional audio features

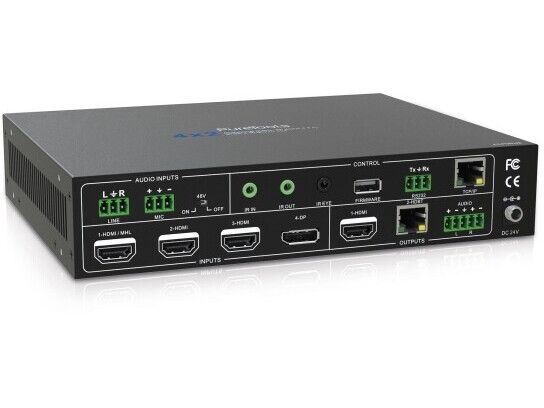

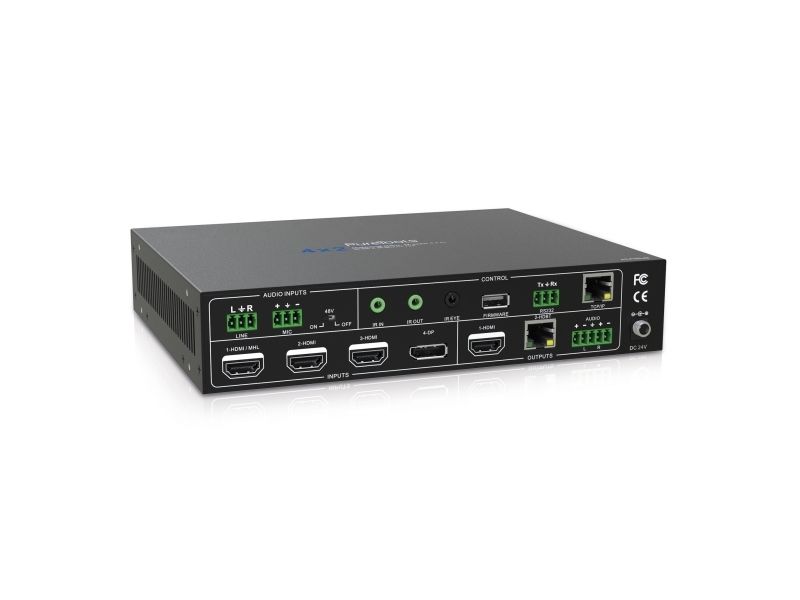

In addition to four AV inputs (3x HDMI & 1x DisplayPort), the PT-PMS-42 features professional audio functions such as an integrated audio matrix routing function and selectable MIC / LINE audio inputs. The integrated scaling function, in combination with the various audio distribution options of the PT-PMS-42, outshines many of its competitors in the field of professional AV distribution.
The HDMI 2.0 multi-format presentation switcher PT-PMS-42 with four inputs (3x HDMI 2.0, 1x DisplayPort) and two outputs (1x HDMI, 1x HDBaseT) enables true matrix distribution of the signals and features an integrated scaler as well as various options for audio integration and extraction. This UltraHD / 4K / 2160p compatible HDMI HDBaseT matrix switcher comes with a 4K HDMI2.0 HDBaseT receiver for use with a monitor in a distance of up to 70m. With the ability to route HDMI and DisplayPort input signals and scale the formats to the connected displays, the PT-PMS-42 simplifies integration and allows the simultaneous use of modern source signals (HDMI2.0, DisplayPort) as well as older signal types (HDMI1.4). The audio signal can be separately adjusted for HDMI and HDBaseT, including a bunch of integration and extraction options.
The PureTools Series - High Quality AV Products for Commercial Applications
HDMI 2.0 & DisplayPort Matrix-Presentation Switcher incl. audio distribution, an integrated 4K scaler and HDBaseT 4K receiver included in the delivery The 4x2 multi-format PT-PMS-42 presentation switcher and matrix scaler with four AV inputs combines the features of a 4K / UltraHD / 2160p AV matrix switcher and AV signal scaler with the benefits of HDBaseT signal transmission over a single Cat cable. The HDMI inputs support resolutions up to 4K / UltraHD at 60Hz and with 4:4:4 color subsampling including HDR, 3D, HD lossless audio and up to 18Gbps bandwidth - For full support of thr HDMI 2.0 specifications. HDMI and HDBaseT outputs both support resolutions up to 4K / UltraHD with 60Hz. All input signals can be scaled up to 4K / UltraHD / 2160p.
Convenient control and source selection
This multiformat 4K matrix switcher with integrated scaler function offers a variety of control options. The input and output signals can be selected via the front keys directly on the device, via RS232, IR remote control (included in delivery) or via TCP/IP commands. The control signals can also be transmitted bi-directionally over distances of up to 70m via HDBaseT.
4x2 4K DisplayPort and HDMI Matrix-Scaler incl. 4K HDBaseT-Receiver
The PT-PMS-42 comes with an HDMI 2.0 4K HDBaseT receiver. The 4x2 matrix switcher, together with the HDBaseT receiver, forms a stand-alone distribution and control system for applications, in which several signals with different resolutions need to be scaled, distributed and optimized for different displays.
PoH / PoC reduces the required power supplies
The PT-PMS-42 can power the included HDBaseT receiver via PoC technology (via HDBaseT) so that no power supply is required on the HDBaseT receiver.
Professional audio features
In addition to four AV inputs (3x HDMI & 1x DisplayPort), the PT-PMS-42 features professional audio functions such as an integrated audio matrix routing function and selectable MIC / LINE audio inputs. The integrated scaling function, in combination with the various audio distribution options of the PT-PMS-42, outshines many of its competitors in the field of professional AV distribution.
