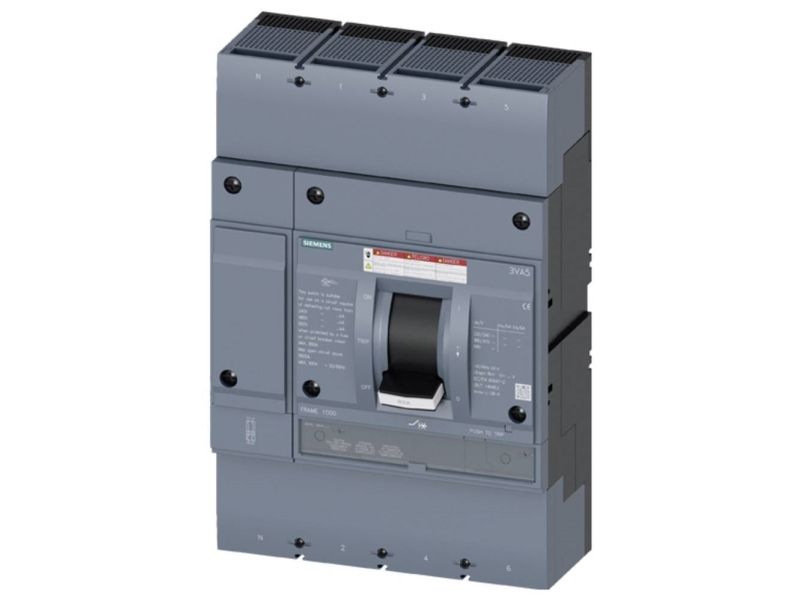

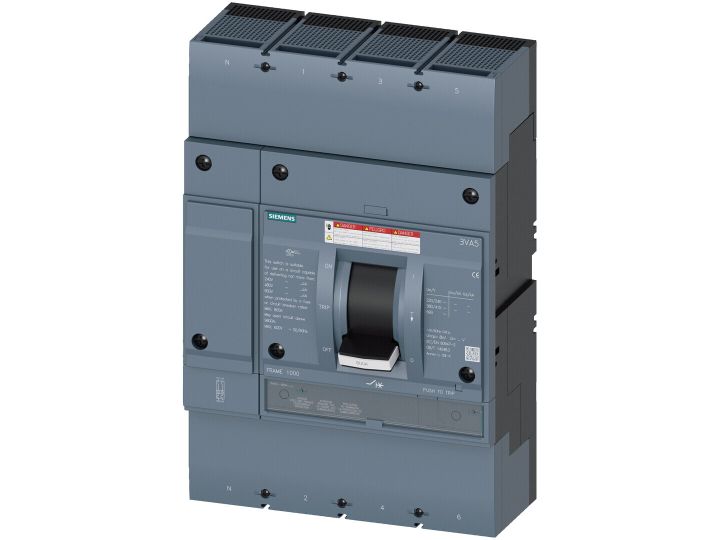

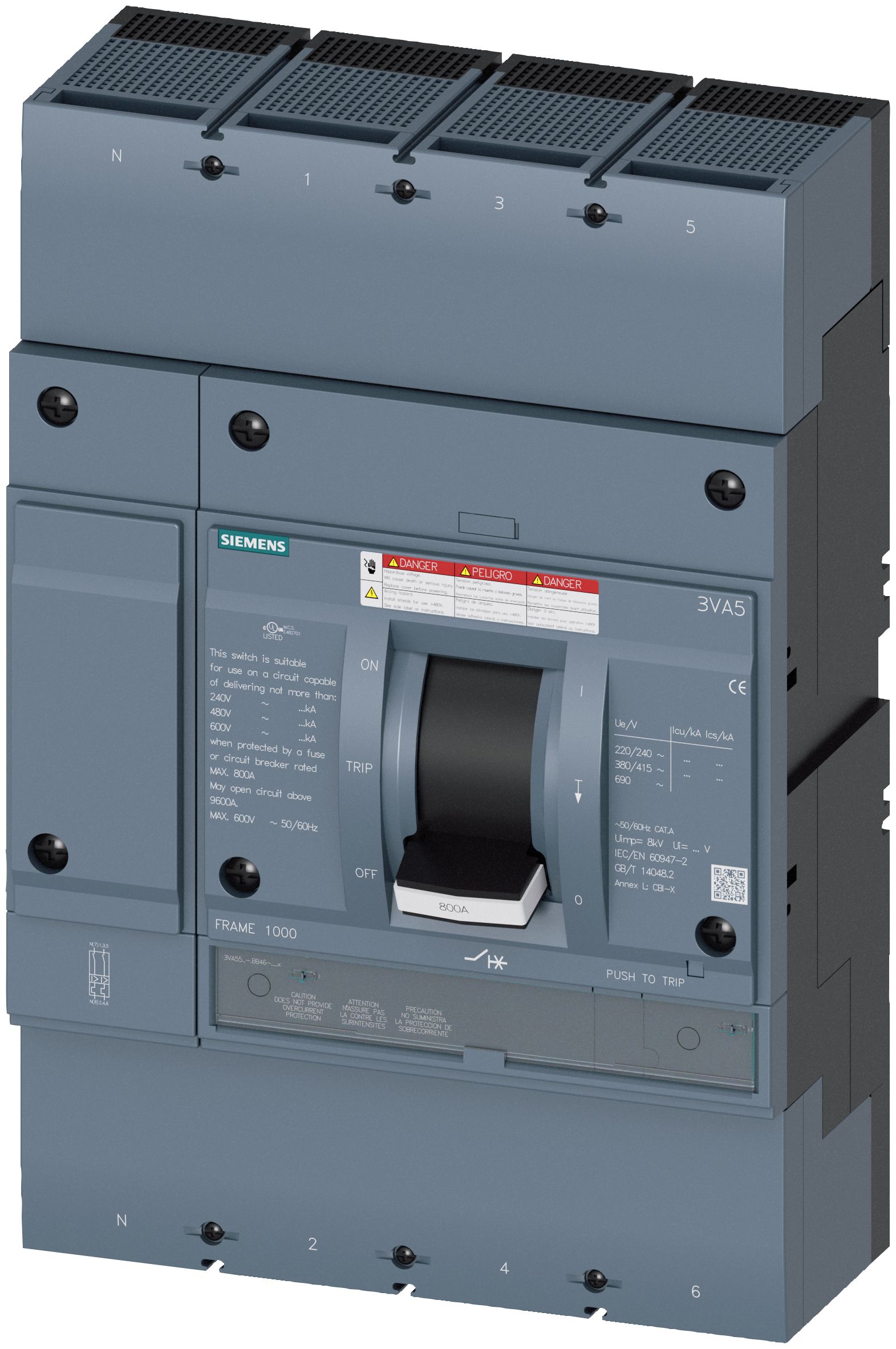

Siemens 3VA5580-0BB46-0AA0, IP40

molded case switch 3VA5 UL Frame 800 max. short-circuit breaking capacity 65 kA @ 480 V 4-pole MCS110, In=800 A without overload protection intrinsic device protection Ii=12 x In cable connection on two sides Molded-case circuit breaker SENTRON 3VA5 with UL approval as molded case switch. The 3VA5 and 3VA6 molded case circuit breakers set new standards in flexibility and the variety of modular accessories available with a small space requirement. In addition to the IEC standard, the two series also meet the UL standard. All of the functions can thus be used for plants around the world. The 3VA5 molded case circuit breakers are available in 2-, 3-, and 4-pole versions with different rated uninterrupted currents for installation in fixed-mounted versions. The modular and easy-to-install accessories with a wide range of functions are consistent and uniform for all sizes and series of 3VA molded case circuit breakers. SENTRON 3VA molded case circuit breakers - One system. For all applications.
