Siemens 6GK5206-2BF00-2TB2, hallinnoitu

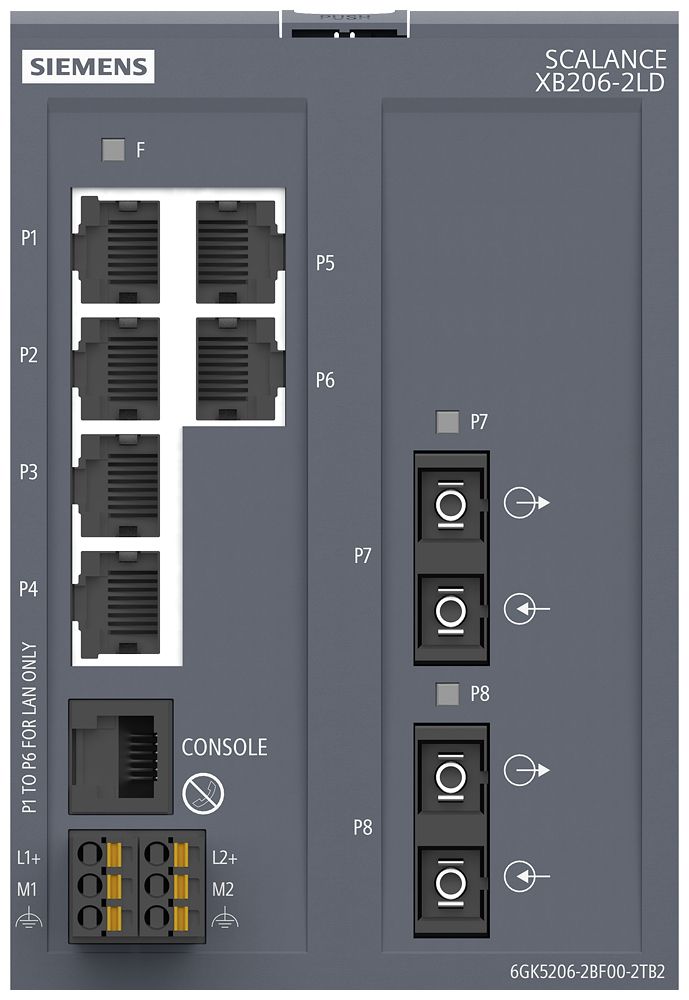

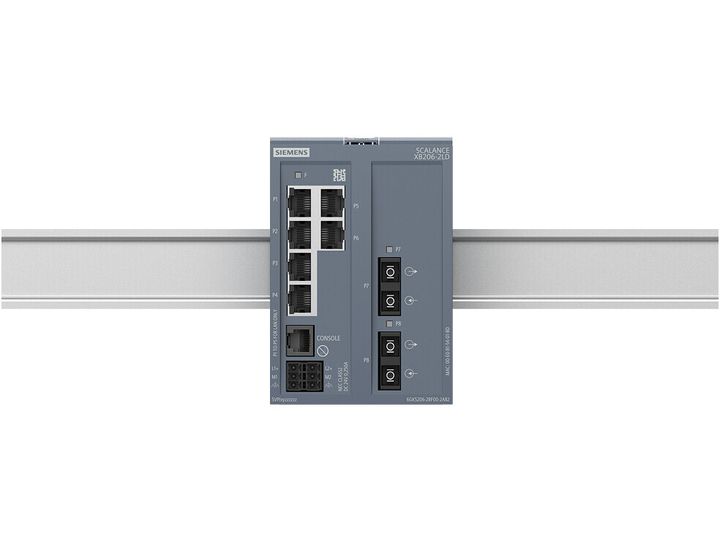

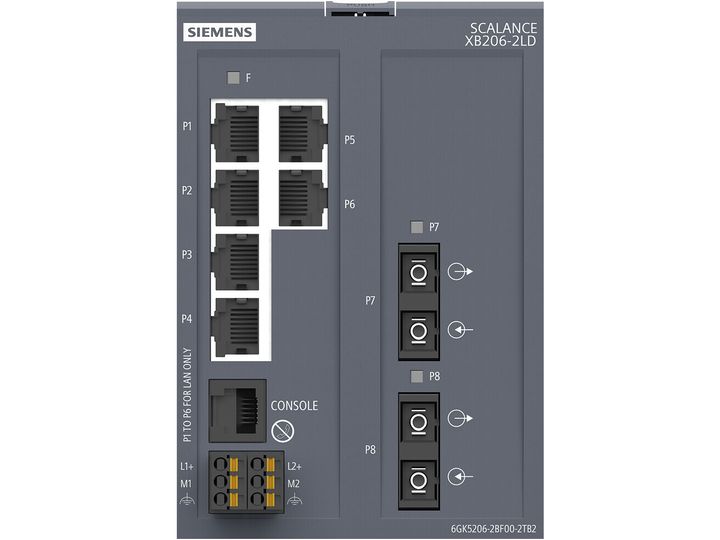

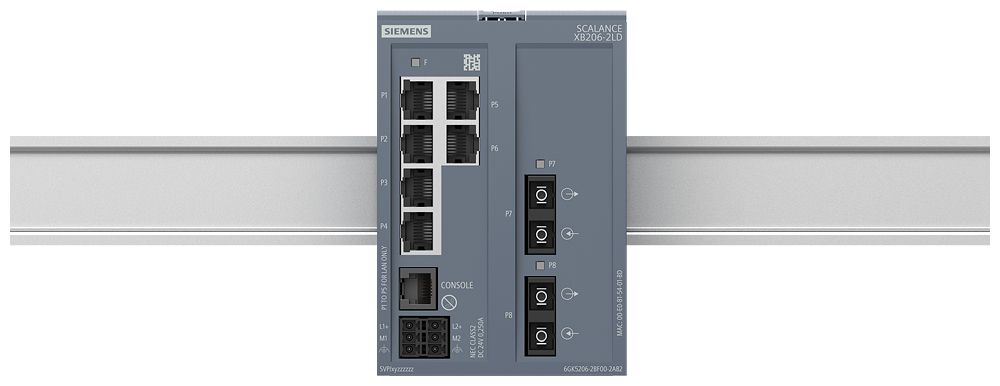

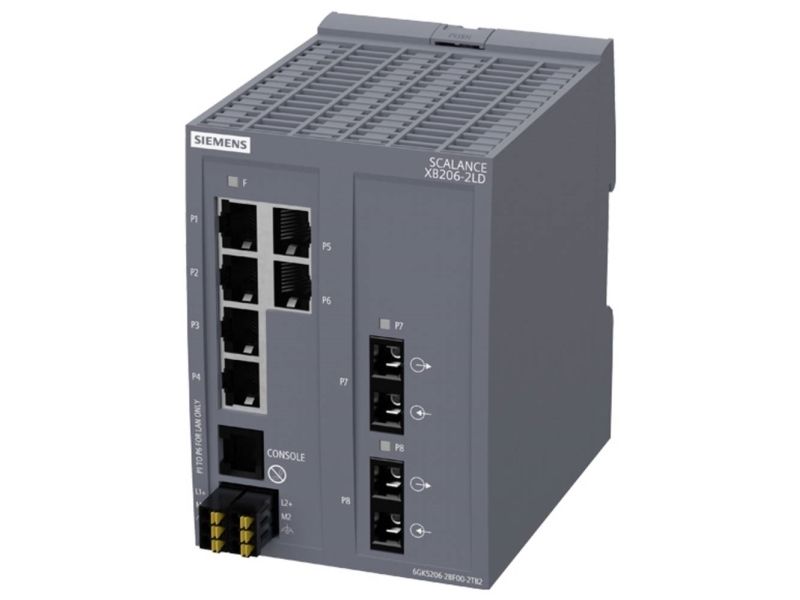

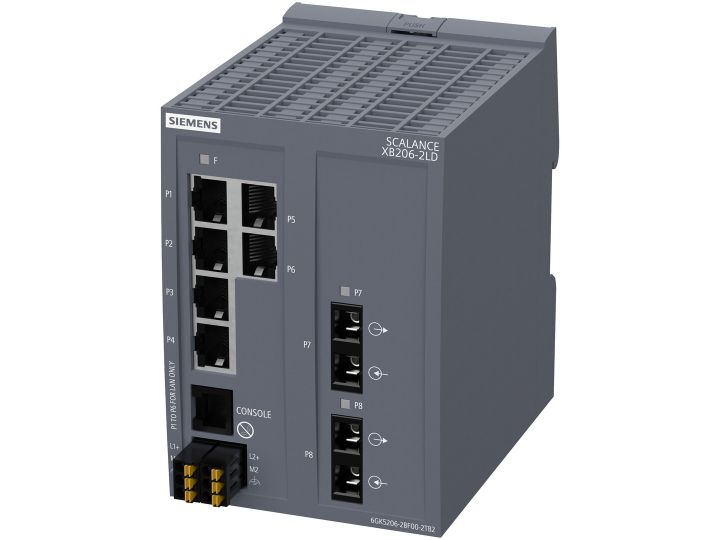

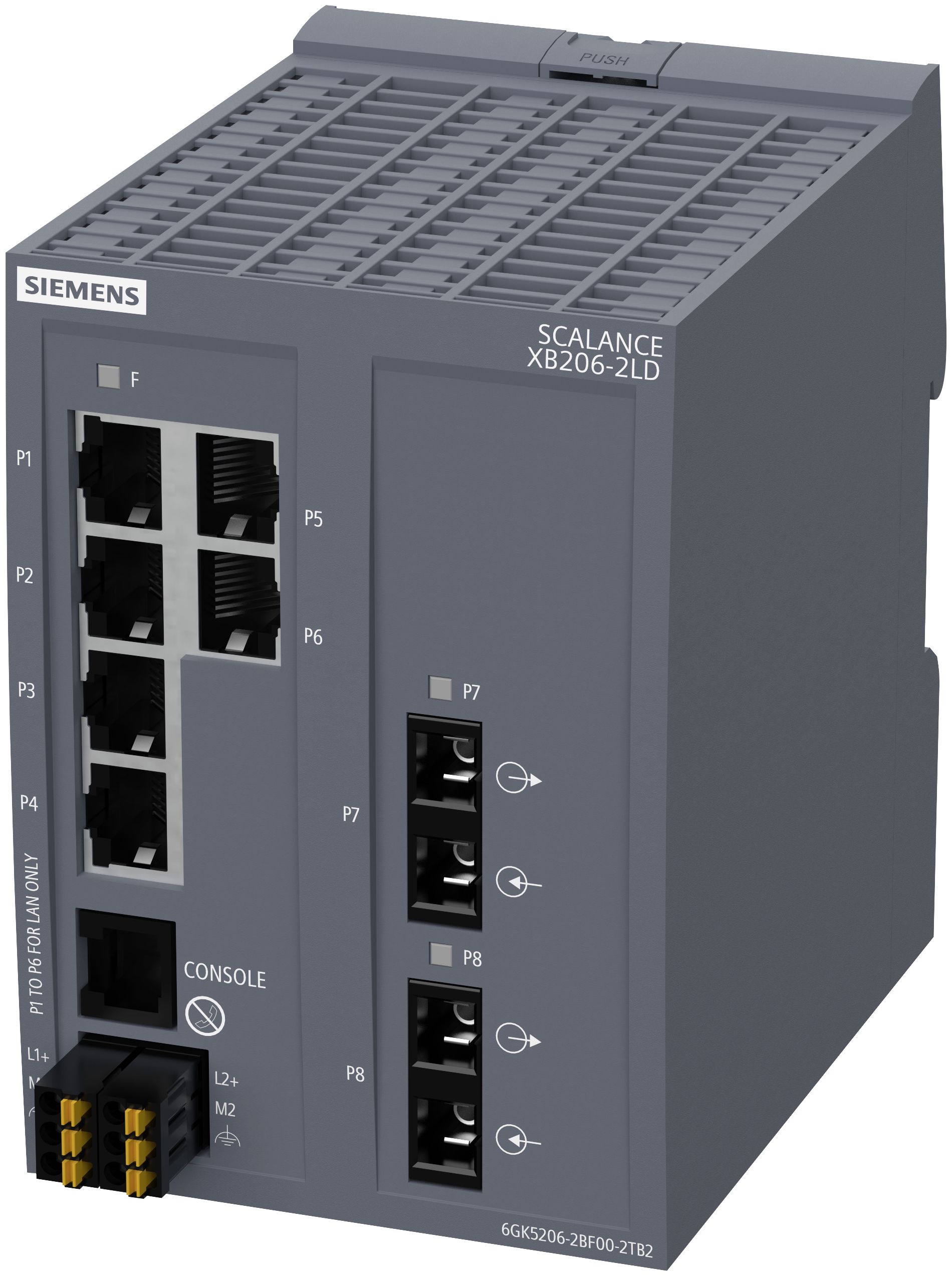

SCALANCE XB206-2LD managed Layer 2 IE Switch 6x 10/100 Mbps RJ45 ports 2x SM FO SC port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; PROFINET IO device; EtherNet/IP-compliant; default EtherNet/IP SCALANCE XB206-2LD managed, Layer 2 box switch, 6x 10/100 Mbps RJ45, 2x multimode ST/BFOC for PROFINET and EtherNet/IP, default: PROFINET Installation in control cabinet for PROFINET and EtherNet/IP applications. Standard PROFINET settings. Support of both industry protocols (PROFINET and EtherNet/IP) in one device for use in real-time communication. High network availability through setup of redundant ring structures on the basis of High Speed Redundancy (HRP), PROFINET-compliant ring redundancy MRP, redundancy manager integrated. Support of load limitation when using multicast-based protocols as well as limiting of multicast and broadcast per port. Setup of virtual networks through VLAN function. Integrated Web server and signaling contact for fast and easy diagnostics on the device and integration into existing network management systems through standardized SNMP access. Managed, Layer 2 box switch, 24 V DC, 6x 10/100 Mbps RJ45 ports electrical, 2x single-mode SC, max. 26 km, 1x console port, default: PROFINET. The system also features extensive accessories such as SITOP PSU100C 24 V/0.6 A for stabilized power supply, FC FO plugs and case for self-assembly of FO cables (ST/BFOC) for on-site assembly, RJ45 connectors, terminal block for signaling contact and various FastConnect cable versions (including preassembled). Switch to the future - SCALANCE X.
