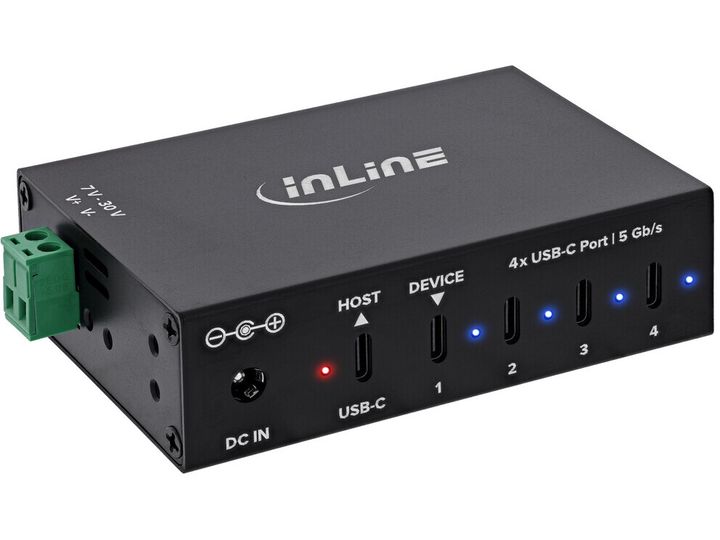

4-port USB-C industrial hub, 5 Gb/s, DIN rail, 12–24 V power supply

Reliable expansion of USB-C interfaces:Extends a USB-C port with four USB-C ports for the simultaneous operation of multiple devices in industrial environments
Flexible power supply for industrial applications:Supports 12–24 V DC via terminal connection or DC IN, as well as operation via an external power supply
Robust design for demanding environments:Aluminium housing and extended temperature range enable use under extreme conditions
Safe operation thanks to integrated protection mechanisms:Protection against short circuits, overcurrent, overvoltage and ESD for stable data and power transmission
Easy integration and installation:Suitable for DIN rail or wall mounting; Plug & Play enables quick deployment without driver installation

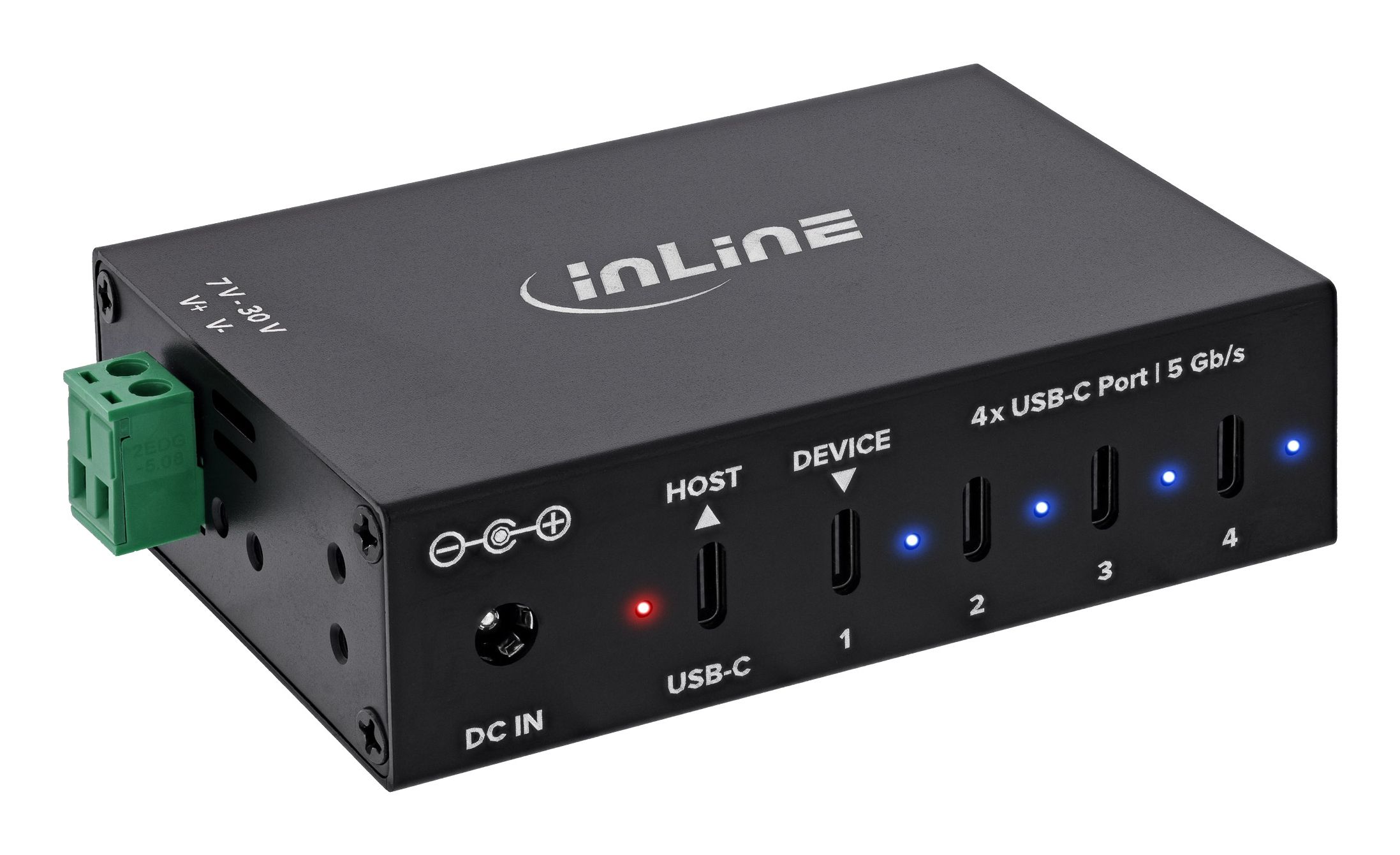

This USB-C industrial hub enables the reliable expansion of a USB-C port with four additional USB-C ports. It has been specially developed for use in industrial environments and provides a stable connection for multiple USB devices simultaneously.
Thanks to support for the USB 3.2 Gen.1 standard, the hub achieves data transfer rates of up to 5 Gb/s and is backwards compatible with older USB standards. This enables flexible use with existing systems and devices.
Power is supplied either via an external power supply unit or directly from industrial power sources in the range of 12–24 V DC. An alternative 2-pin terminal connection is also available, allowing the hub to be optimally integrated into various installation environments.
The robust aluminium housing and the extended temperature range from -40 °C to +85 °C ensure reliable operation even under demanding conditions. Integrated protection mechanisms such as short-circuit, overcurrent and overvoltage protection, as well as ESD protection, ensure safe operation.
Support for the BC1.2 charging specification allows connected devices to be powered as well. Power is distributed accordingly when multiple ports are in use simultaneously. Installation is flexible via DIN rail or wall mount. An LED indicator facilitates status monitoring during operation.
Technical specifications

Chipset: VL817
Inputs:

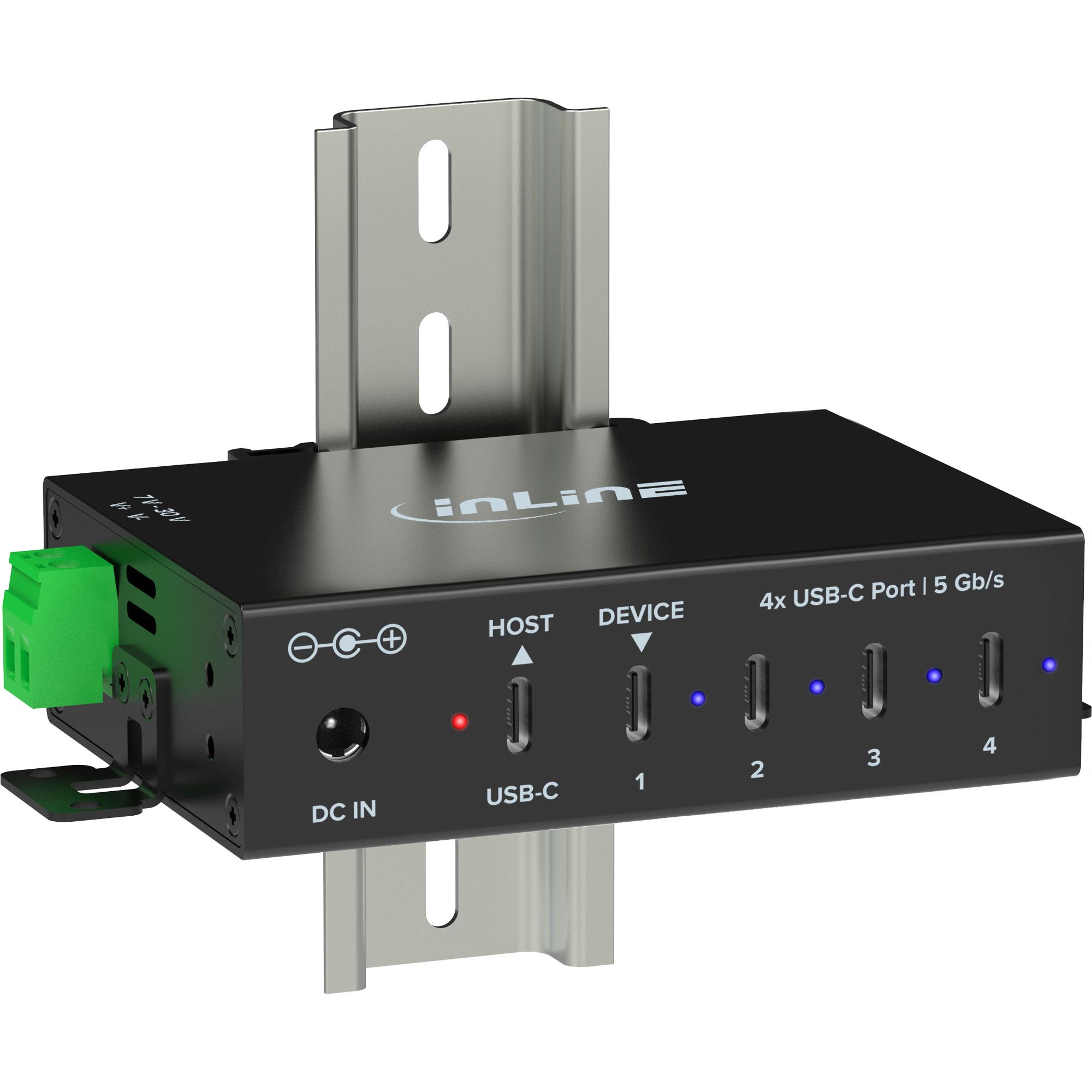

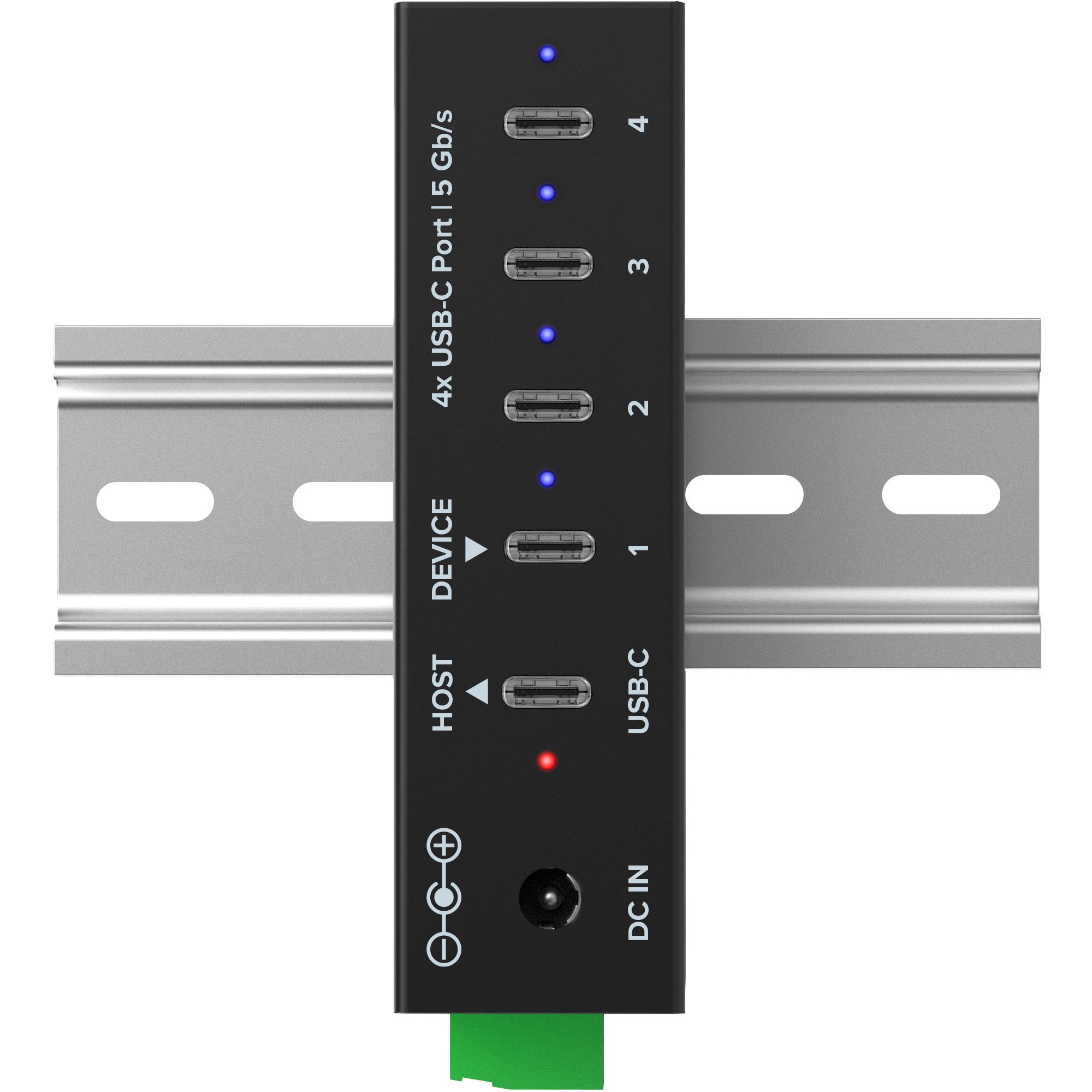

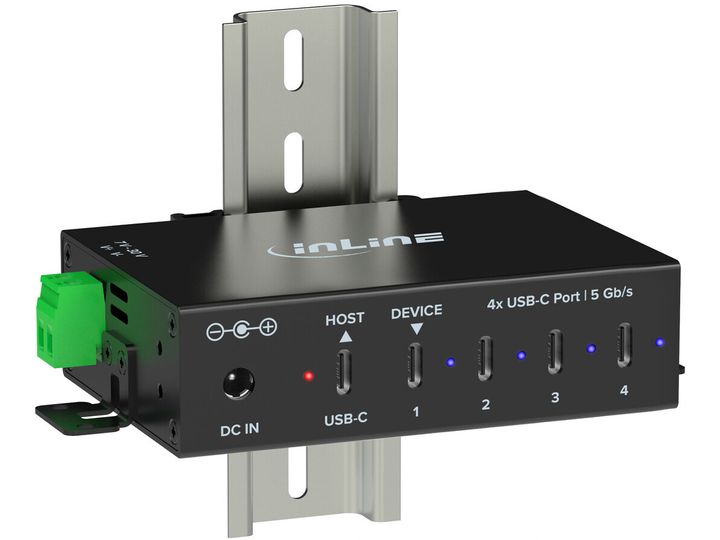

1x USB-C port for connection to host computer
1x DC input (5.5 x 2.5 mm)
1x Alternative 2-pin terminal connection
Supported input voltage: 12–24 V DC

Outputs:

4x USB-C 3.2 Gen.1 ports (5 Gb/s)
BC1.2 - USB Battery Charging Specification 1.2 (max. 5 V / 3 A per port)
Note: When using multiple USB ports simultaneously, the available power is distributed among the connected devices

Protection mechanisms:

Short circuit, overcurrent, overvoltage
ESD/antistatic protection: 4 kV / 8 kV / 350 W

Housing: Aluminium, black

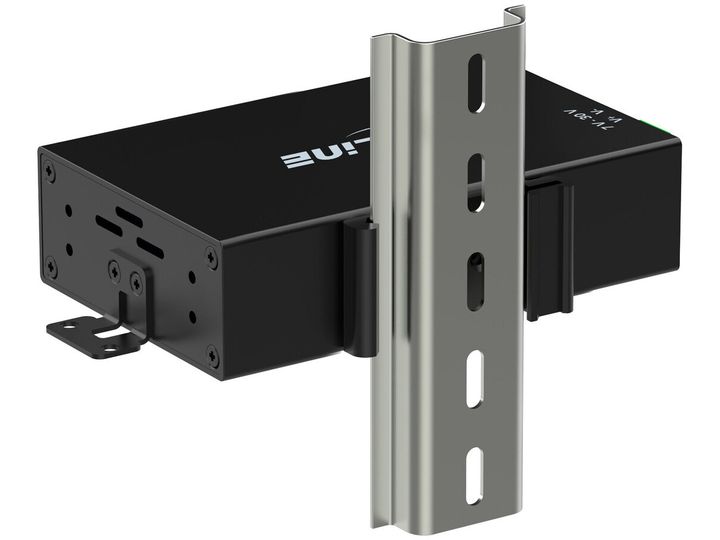

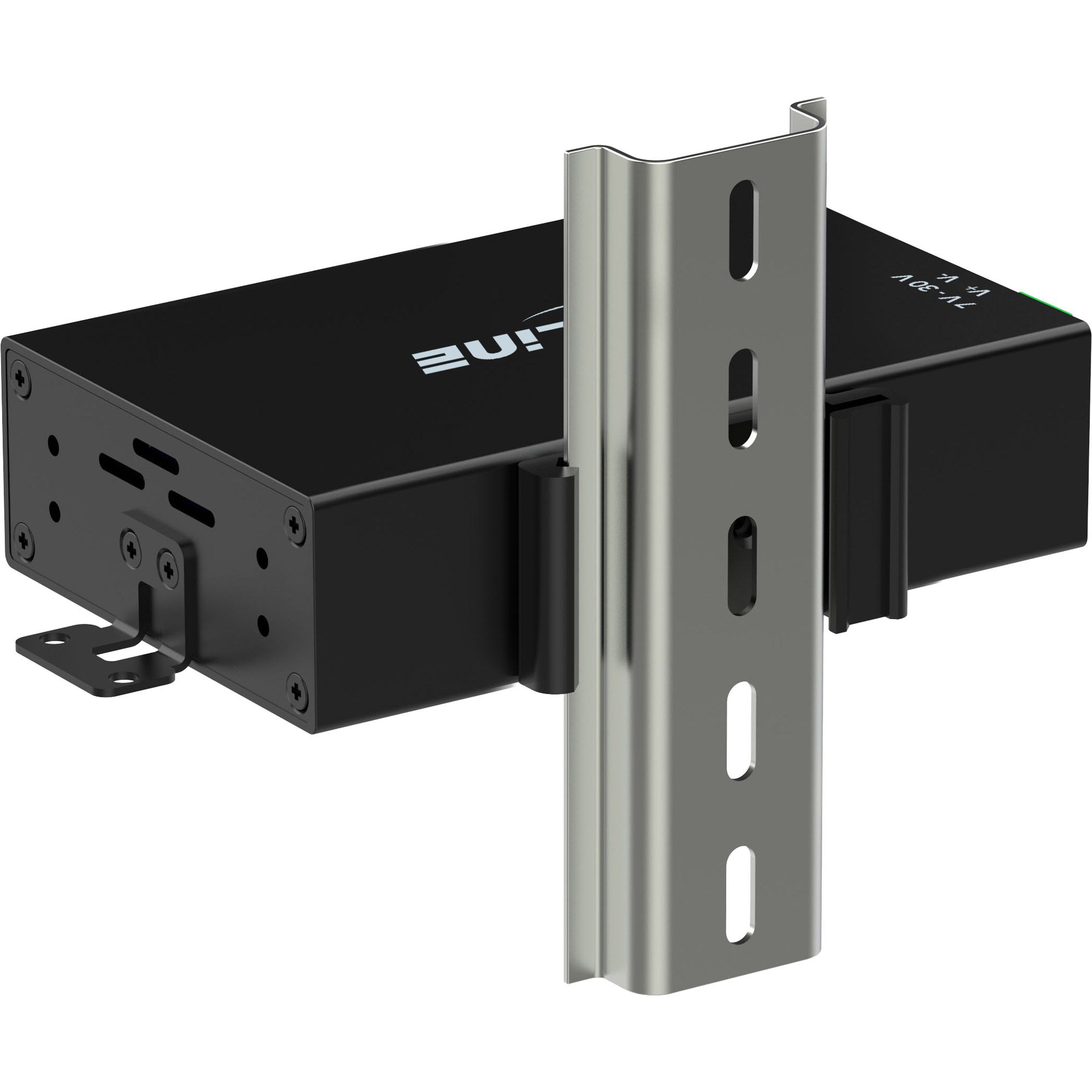

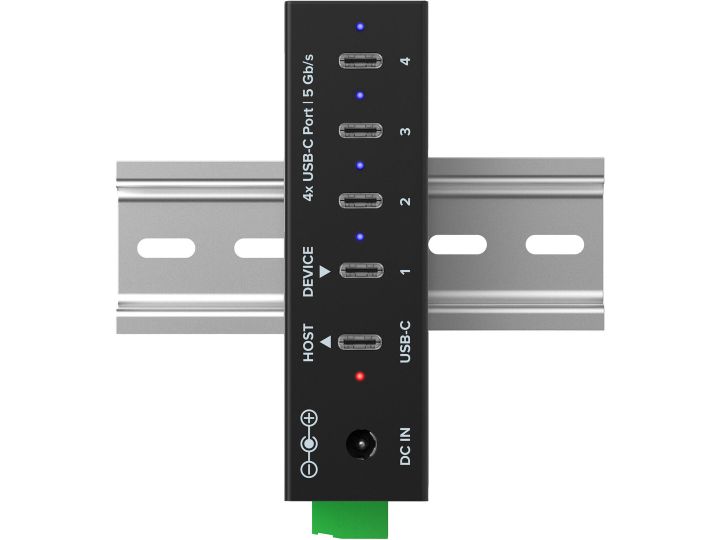

Mounting: DIN rail or wall bracket
LED indicator: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +125 °C
Humidity: 10–85% (non-condensing)
Operating systems: Windows, macOS, Linux

External power supply (power adapter)

Type: external plug-in power supply
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: 2.0 A
Output power: 24.0 W
Average operating efficiency: 87.45%
Efficiency at low load (10%): 84.07%
Power consumption at no load: 0.07 W

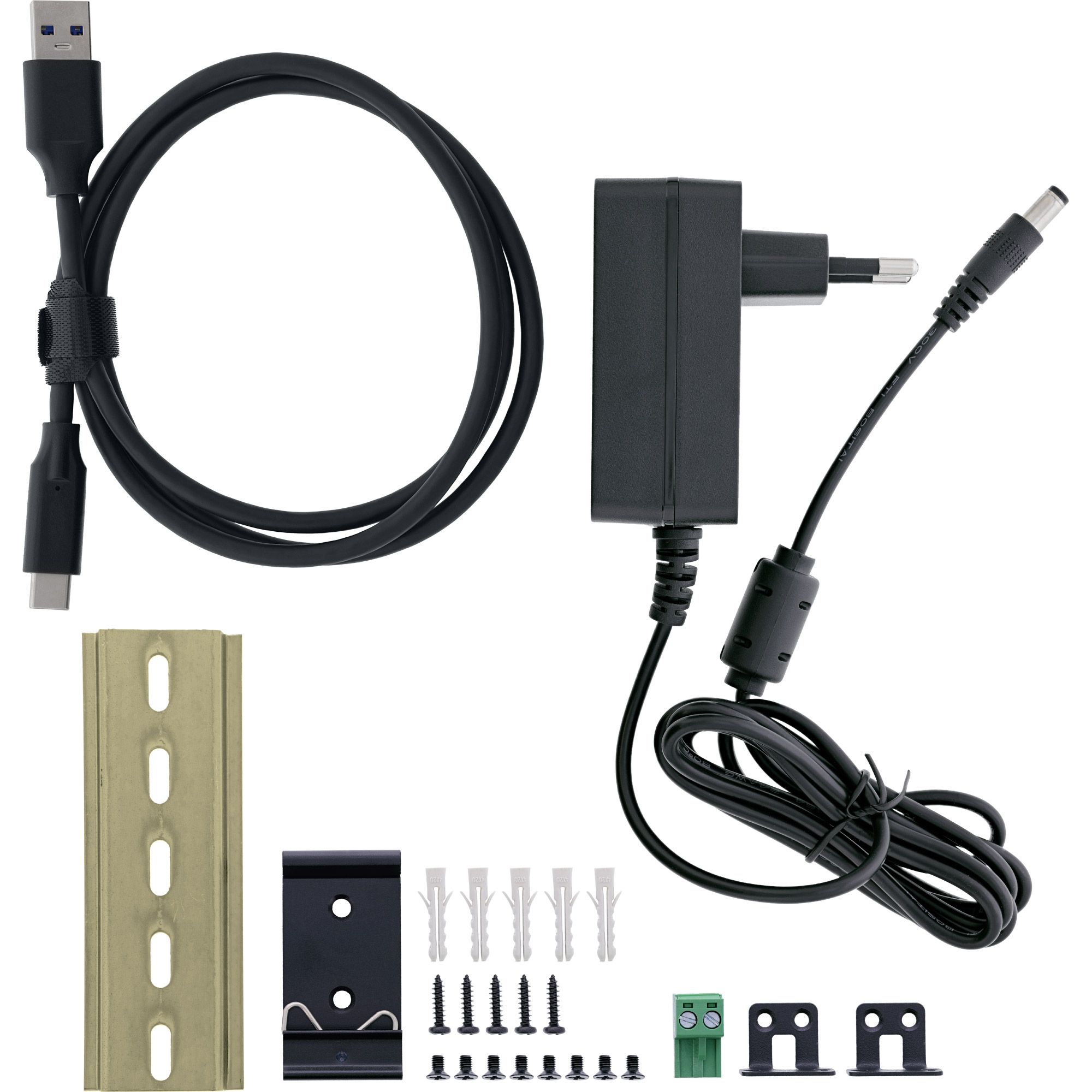

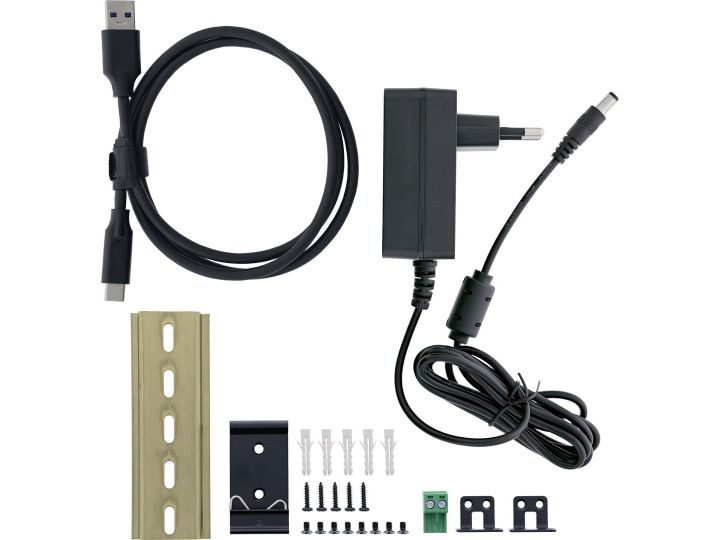

Contents

1x InLine® USB 3.2 Gen.1 Industrial Hub, USB-C, 4-port
1x USB-C to USB-C cable, 1 m
1x Mounting kit
1x DIN rail 10 cm & clip
1x Terminal block
1x External power supply 12 V / 2 A
1x User manual (German/English)
