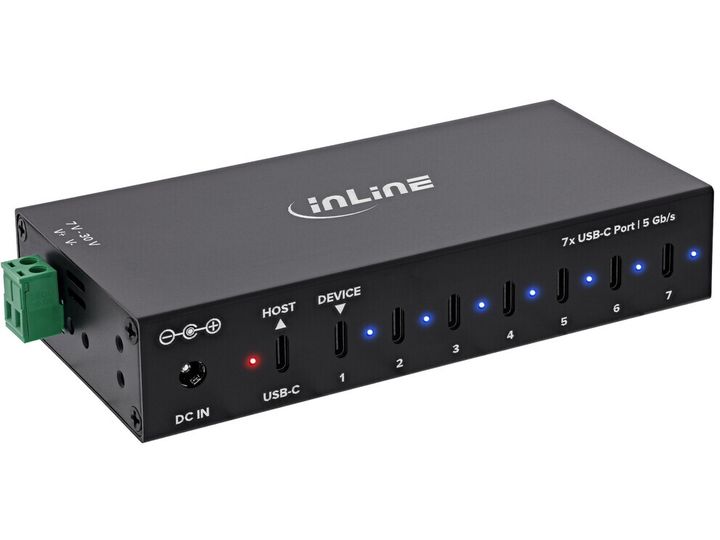

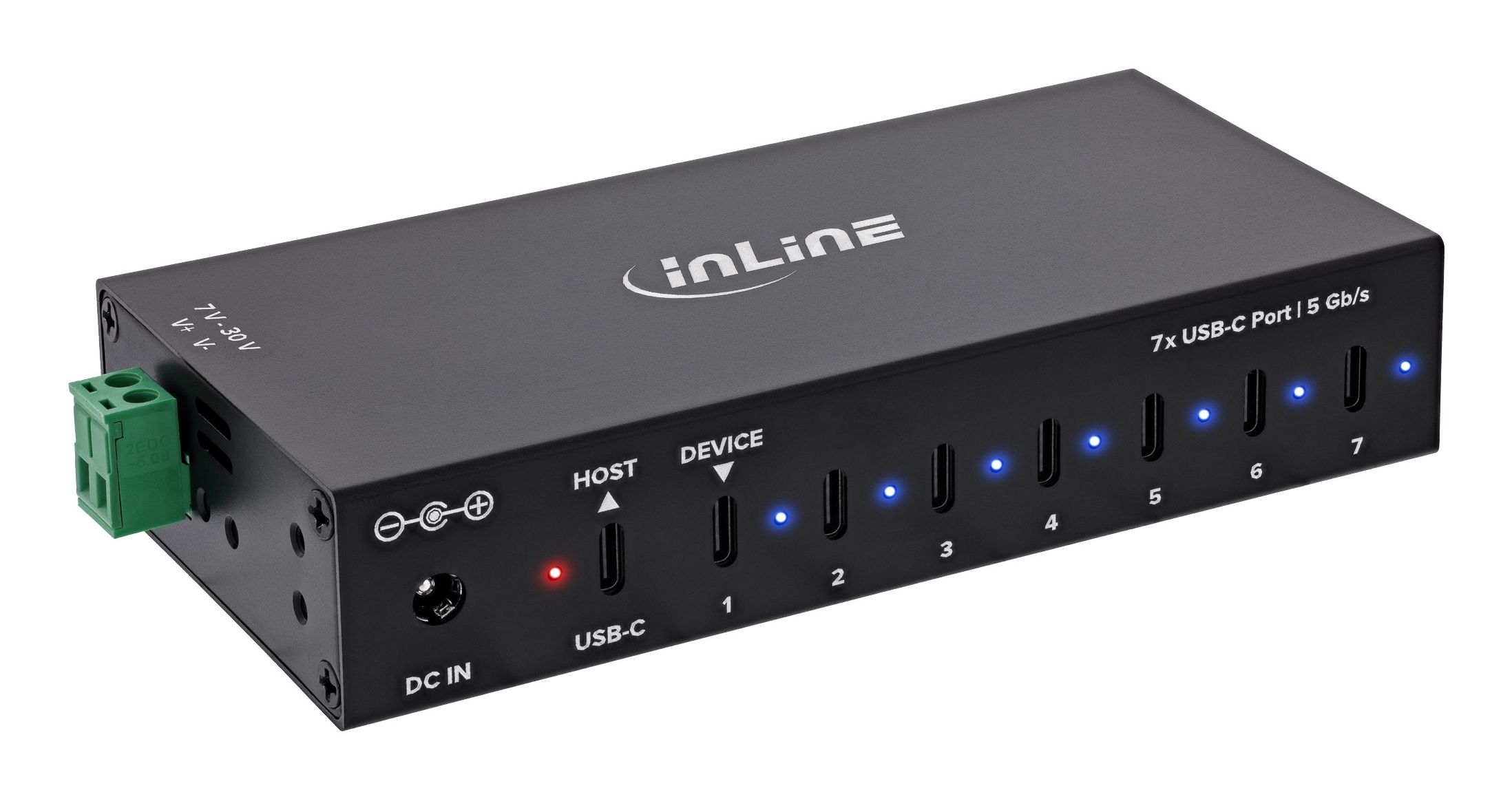

7-port USB-C industrial hub, 5 Gb/s, DIN rail, 12–24 V power supply

Centralised expansion to seven USB-C ports:Expands a single USB-C port to seven USB-C ports for the simultaneous operation of multiple devices in industrial environments
Increased total power for multi-device operation:A powerful 48 W power supply ensures a reliable power supply to multiple connected devices during simultaneous use
Flexible power supply for industrial applications:Supports 12–24 V DC via terminal connection or DC IN, as well as operation via an external power supply
Robust design for demanding environments:An aluminium housing and extended temperature range enable use under extreme conditions
Safe operation thanks to integrated protection mechanisms:Protection against short circuits, overcurrent, overvoltage and ESD protection for stable data and power transmission

This USB-C industrial hub enables the central expansion of a USB-C port by seven additional USB-C ports. It has been specially developed for use in industrial environments and allows the simultaneous operation of multiple USB devices with stable performance.
Thanks to support for the USB 3.2 Gen.1 standard, the hub achieves data transfer rates of up to 5 Gb/s and is backwards compatible with older USB standards. This enables flexible use with existing systems and devices.
Power is supplied either via an external power supply unit or directly via industrial power sources in the range of 12–24 V DC. In addition, an alternative 2-pin terminal connection is available, allowing the hub to be optimally integrated into various installation environments.
The more powerful 48 W power supply supports the powering of multiple connected devices. The power per port remains at a maximum of 5 V / 3 A in accordance with BC1.2 and is distributed accordingly during simultaneous use.
The robust aluminium housing and the extended temperature range from -40 °C to +85 °C ensure reliable operation even under demanding conditions. Integrated protection mechanisms such as short-circuit, overcurrent and overvoltage protection, as well as ESD protection, ensure safe operation.

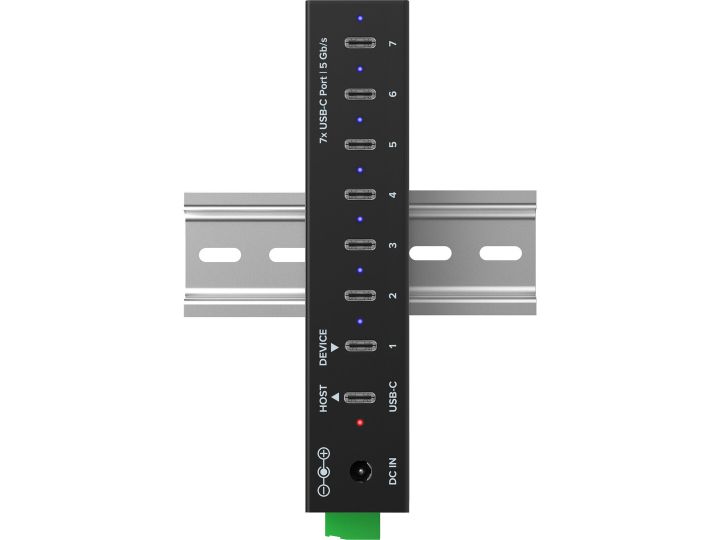

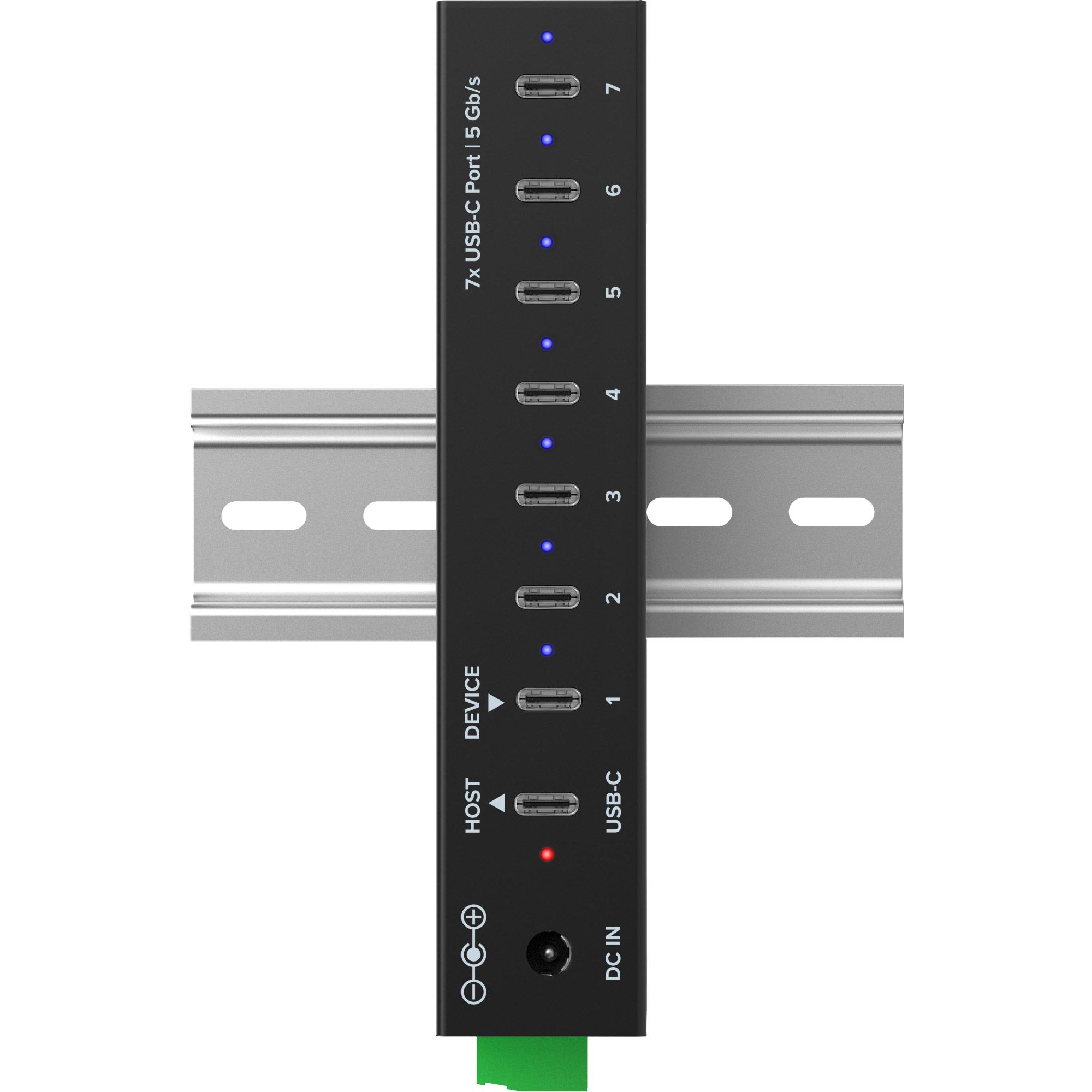

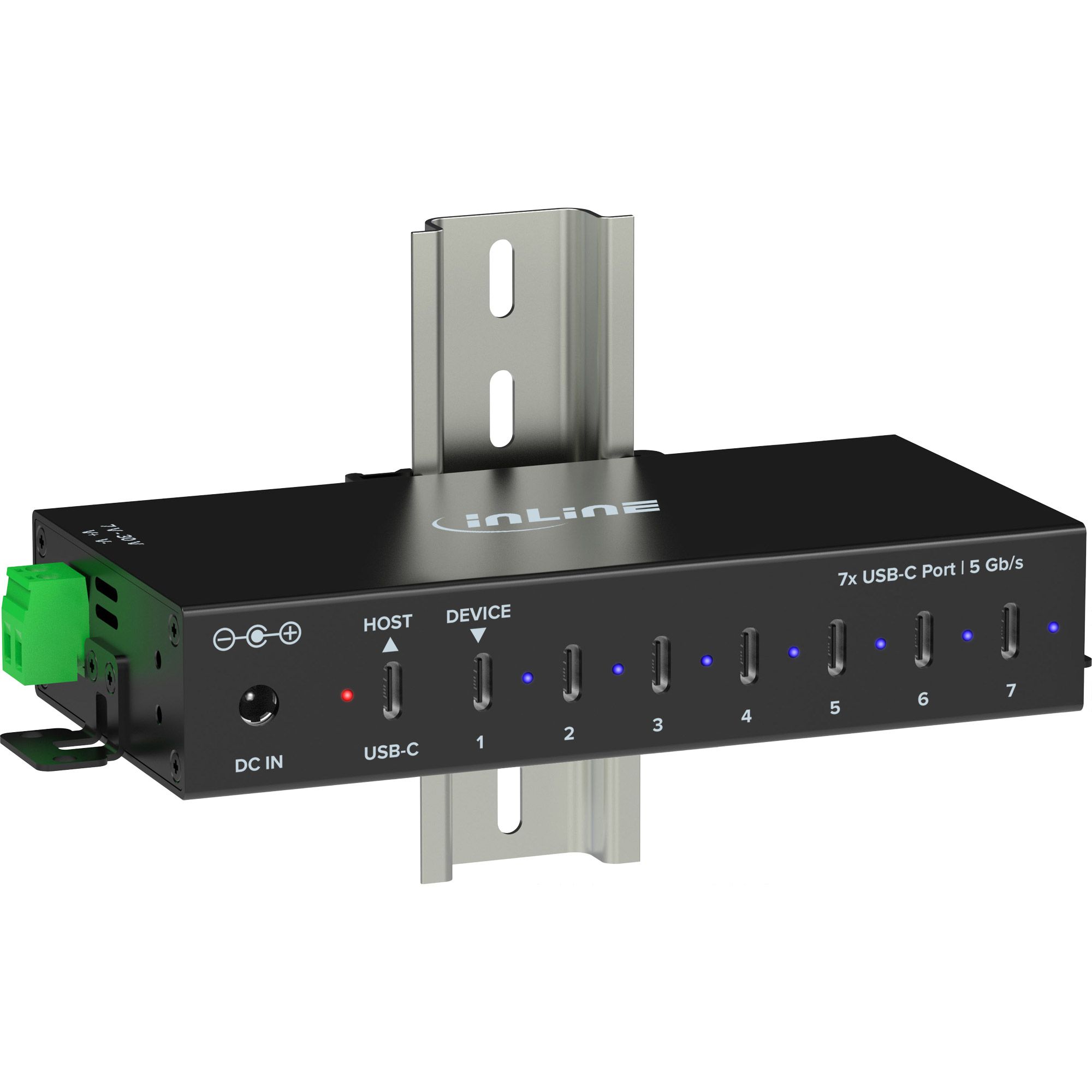

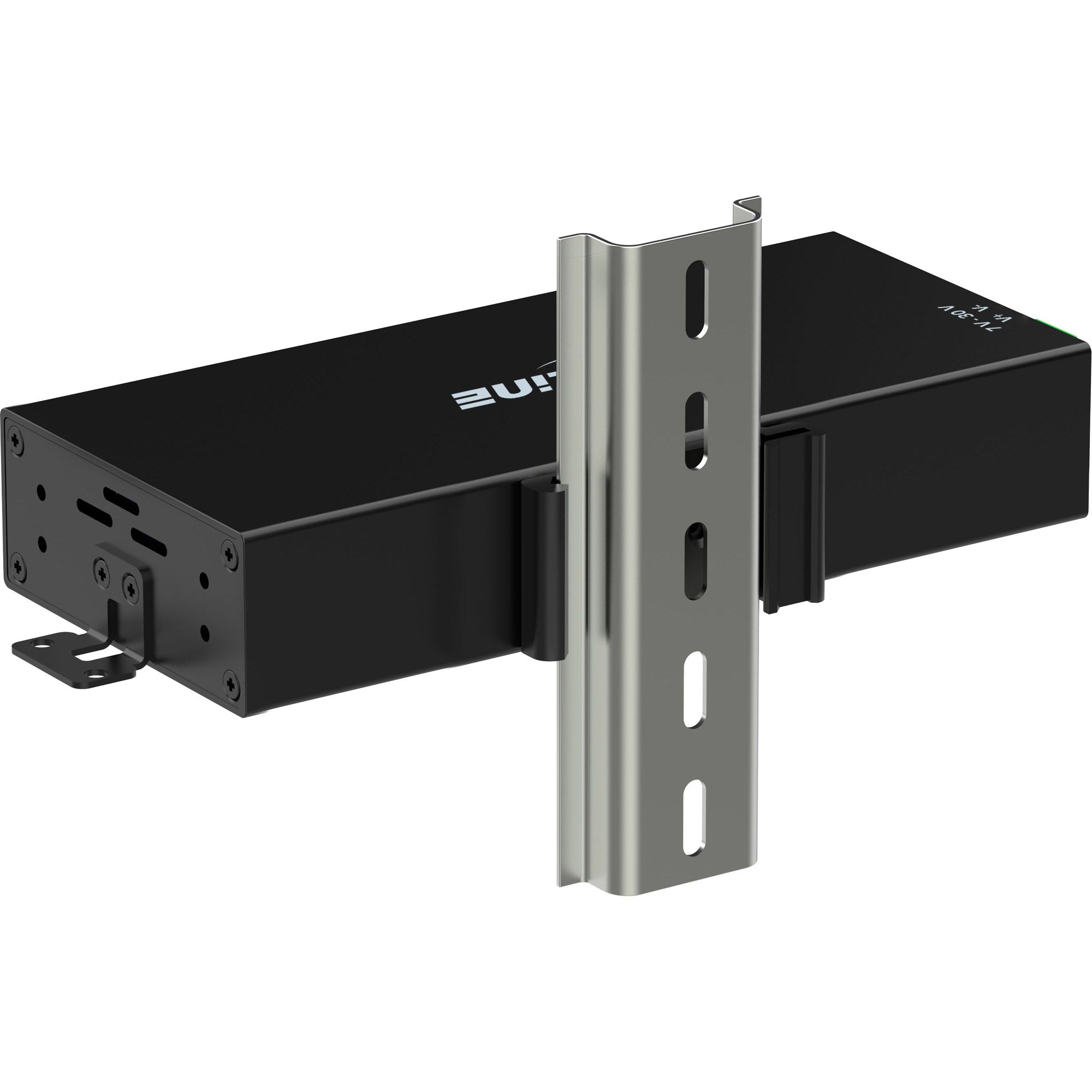

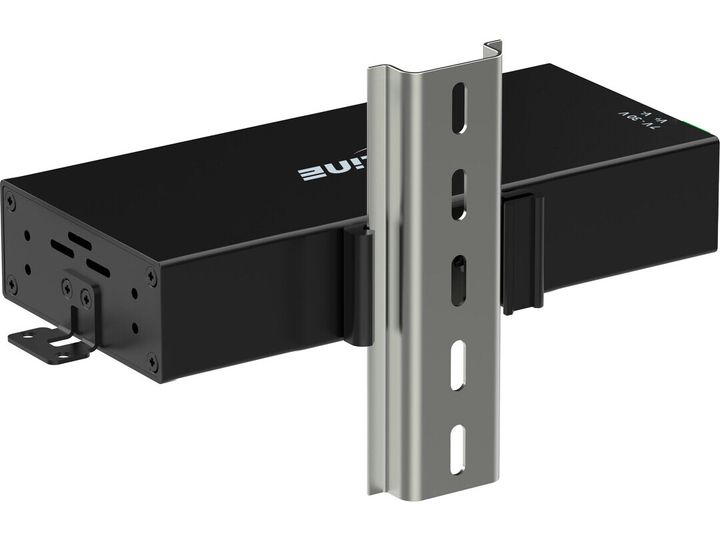

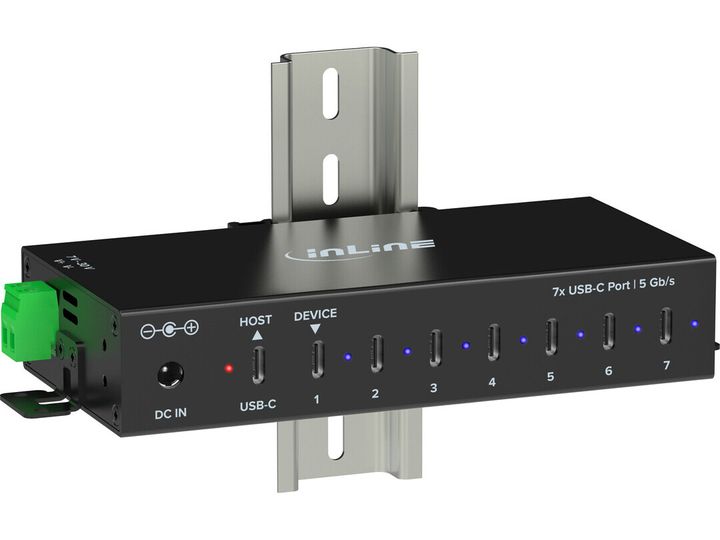

Installation is flexible via DIN rail or wall mount. An LED indicator facilitates status monitoring during operation. Plug & Play enables simple commissioning without additional drivers.
Technical specifications

Chipset: VL817
Inputs:

1x USB-C port for connection to host computer
1x DC input (5.5 x 2.5 mm)
1x alternative 2-pin terminal connection
Supported input voltage: 12–24 V DC

Outputs:

7x USB-C 3.2 Gen 1 ports (5 Gb/s)
BC1.2 – USB Battery Charging Specification 1.2 (max. 5 V / 3 A per port)
Note: When multiple USB ports are used simultaneously, the available power is distributed among the connected devices

Protection mechanisms:

Short circuit, overcurrent, overvoltage
ESD/antistatic protection: 4 kV / 8 kV / 350 W

Housing: Aluminium, black
Mounting: DIN rail or wall bracket
LED indicator: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +125 °C
Humidity: 10–85% (non-condensing)
Operating systems: Windows, macOS, Linux

External power supply (power adaptor)

Type: external plug-in power adaptor
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: 4.0 A
Output power: 48.0 W
Average operating efficiency: 88.59%
Efficiency at low load (10%): 87.92%
Power consumption at no load: 0.07 W

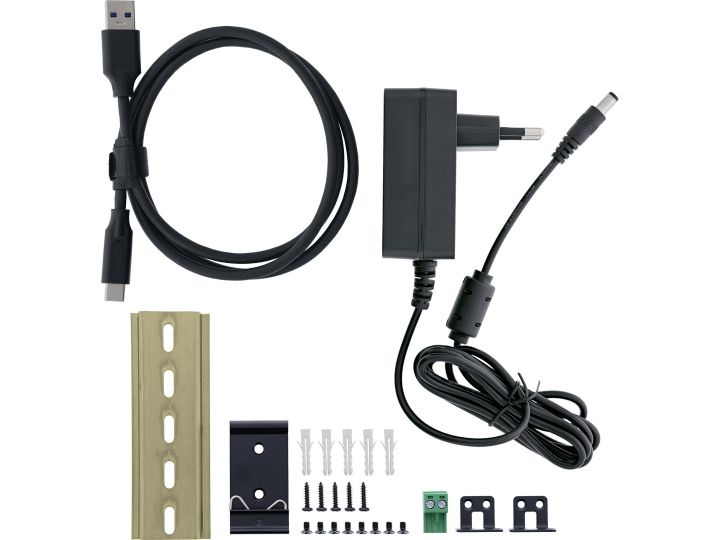

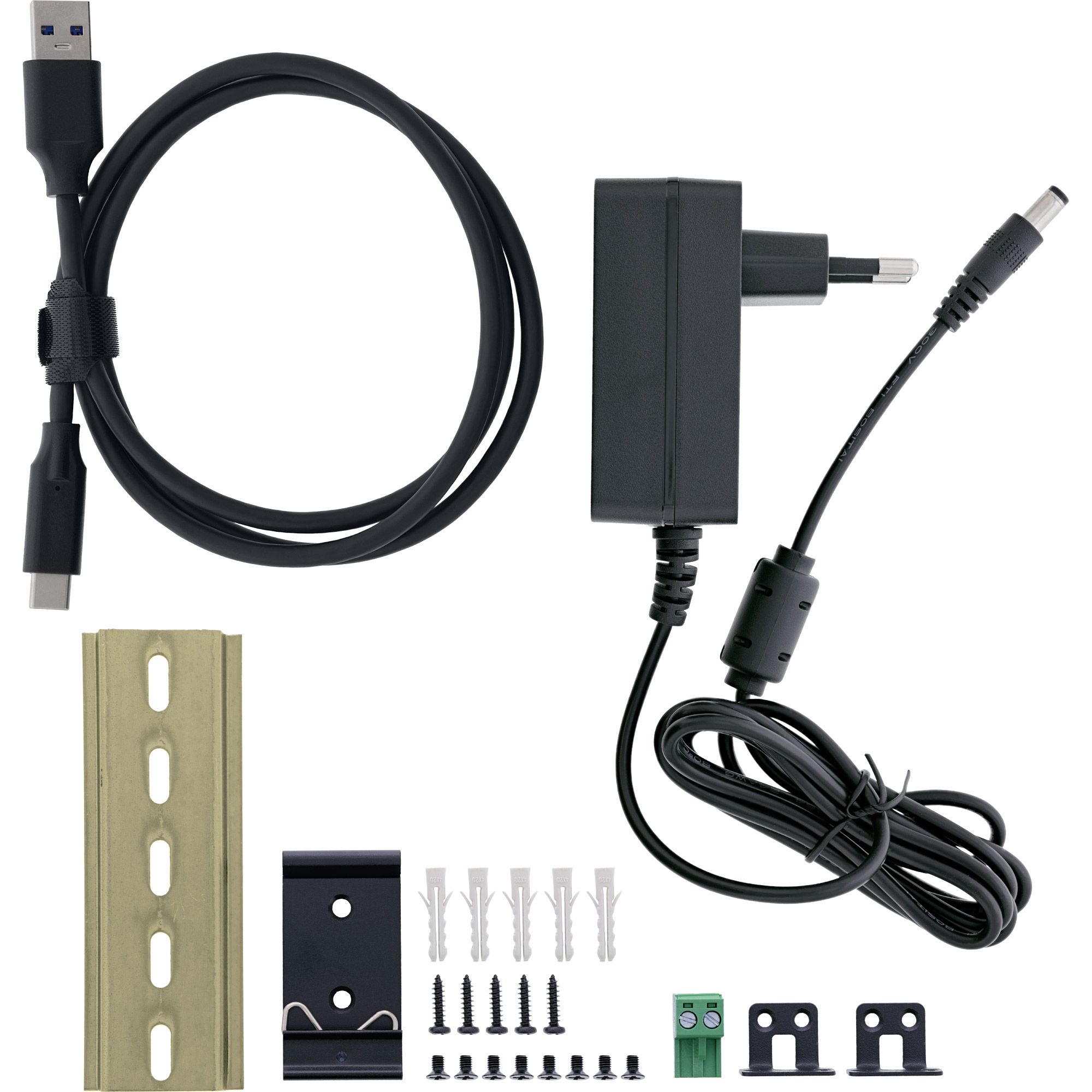

Contents

1x InLine® USB 3.2 Gen.1 Industrial Hub, USB-C, 7-port
1x USB-C to USB-C cable, 1 m
1x Mounting kit
1x DIN rail 10 cm & clip
1x Terminal block
1x External power supply 12 V / 4 A
1x User manual (German/English)
