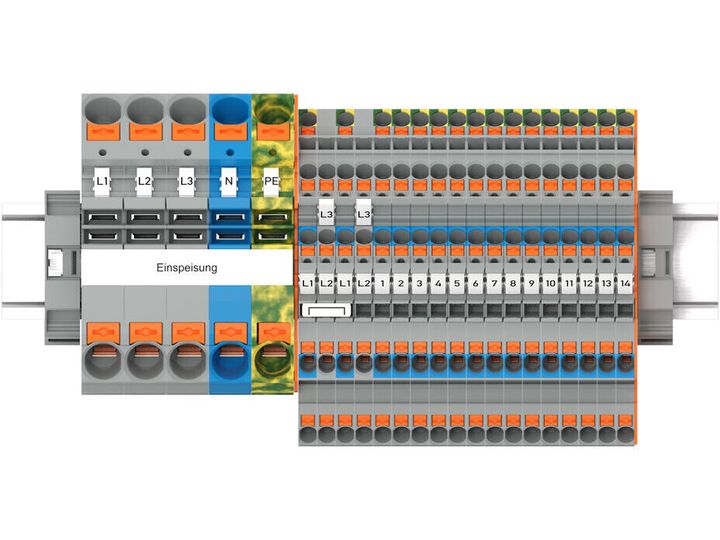

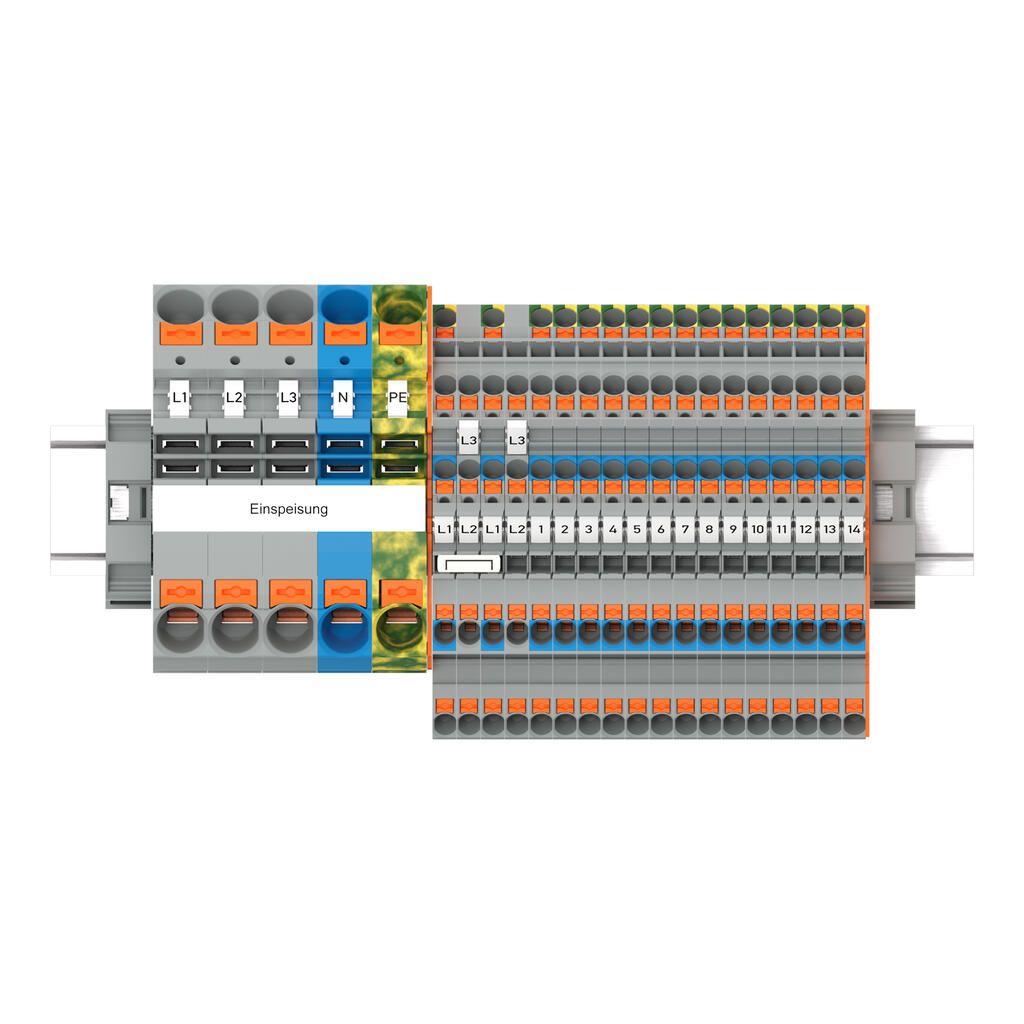

WAGO 821-111 TOPJOB S-Hauptverteiler-SetFI/LS mit Drücker

Suitable for a main distribution board with separate RDC/LS switches for each circuit; includes all required components for wiring supply terminal blocks and connecting 14 AC circuits and two three-phase circuits Connection of L- and N-conductors for RDC/LS switches to the circuits via multilevel installation terminal blocks without disconnection possibility; separation of N-potentials for insulation resistance measurement via RCD/LS switches Contains: 16 x multilevel installation terminal block; NT/L/PE; 4 mm² (2203-7641) 2 x multilevel installation terminal block; L/L; 4 mm² (2203-7642) 1 x end and intermediate plate (2203‑7692) 3 x 2-conductor supply terminal block for distribution boxes; gray; 16 mm² (2016‑7601) 1 x 2-conductor supply terminal block for distribution boxes; blue; 16 mm² (2016‑7604) 1 x 2-conductor ground terminal block; green-yellow; 16 mm² (2016‑7607) 1 x end and intermediate plate (2016‑7692) 2 x screwless end stop; 10 mm wide (249‑117) 1 x marking strip; white; 0.5 m (2009-110) 1 x WMB marker card; 1 … 50 (793‑5566) 1 x WMB marker card; L1, L2, L3, N, PE (793‑5472) 1 x felt-tip pen (210‑110)
