Fischer 505909, Putkenkiinnitin, Musta, Terästä, 104 - 104 mm, Polyuretaani, 2,59 kN, M8/M10

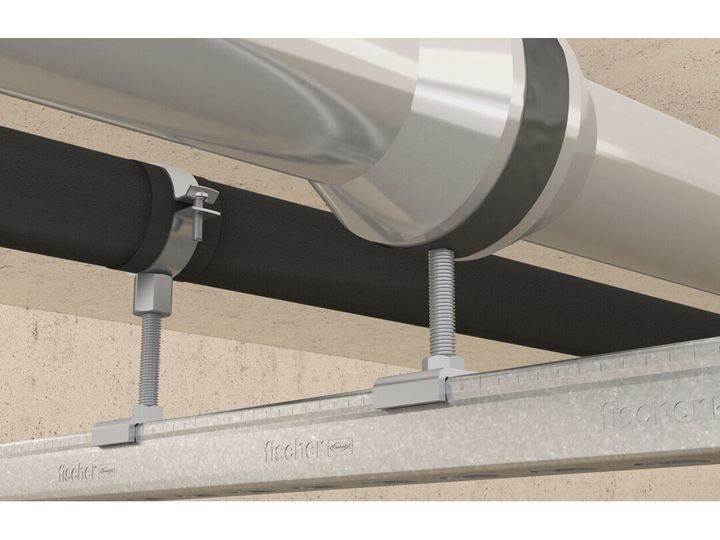

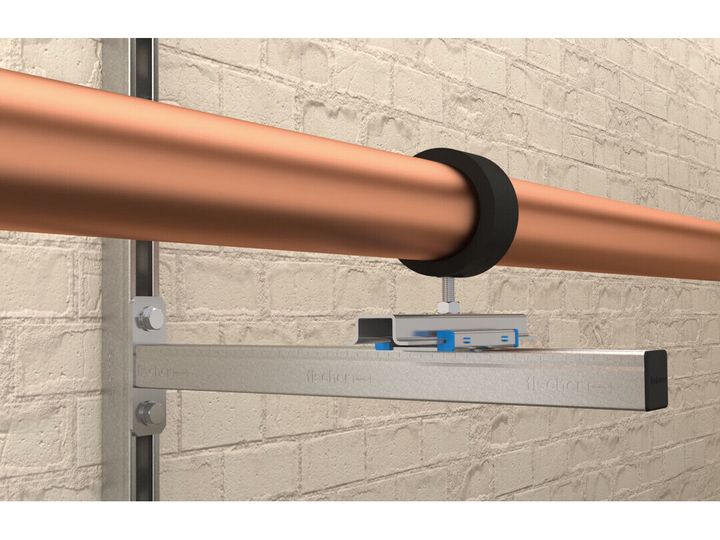

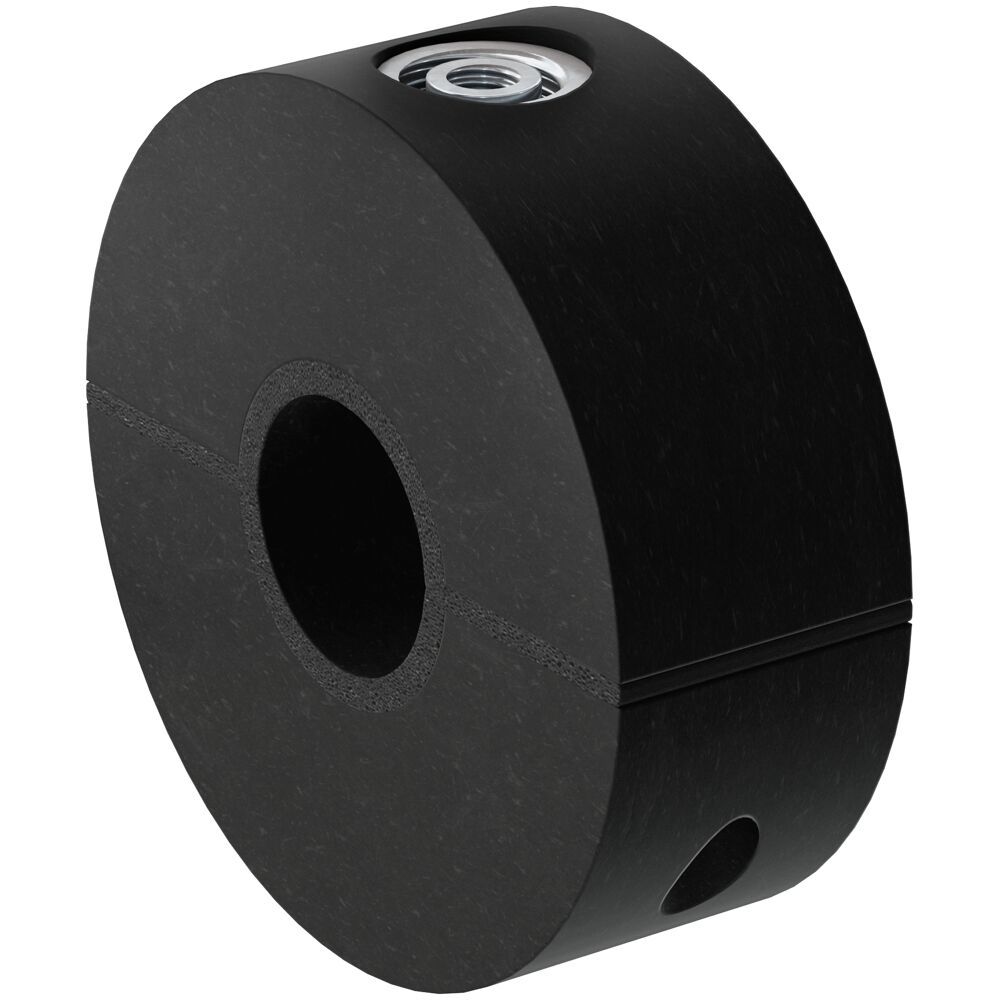

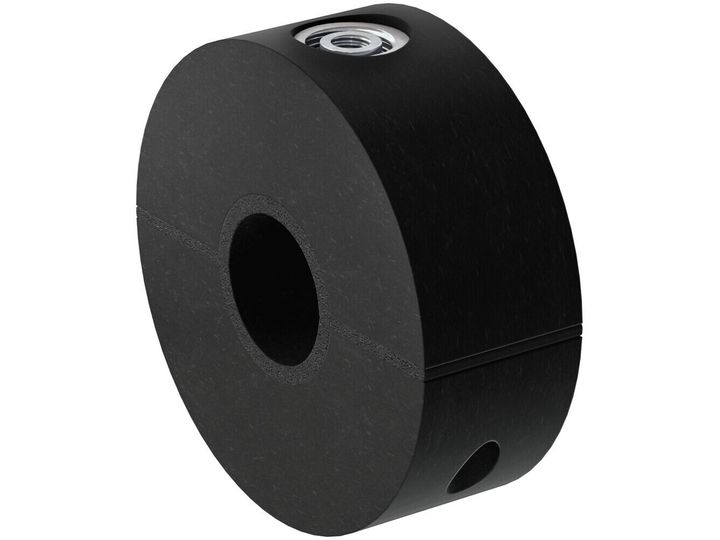

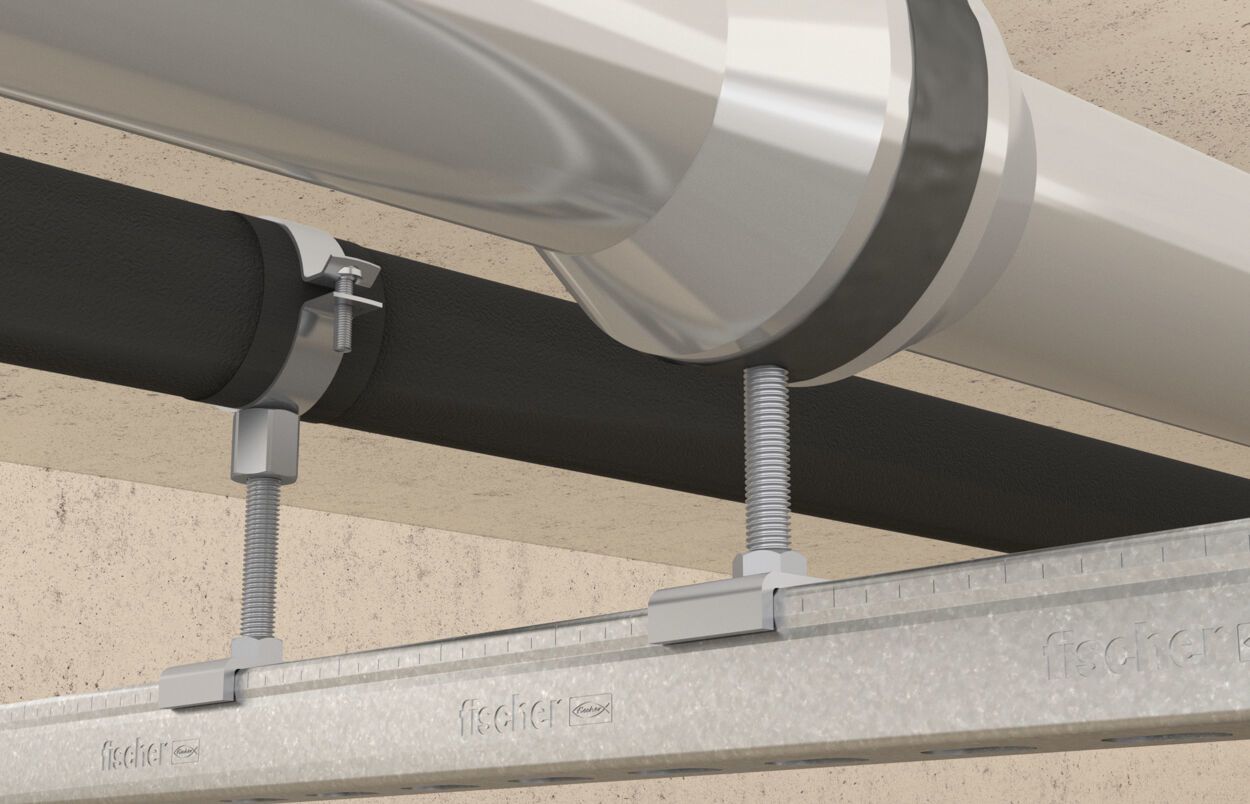

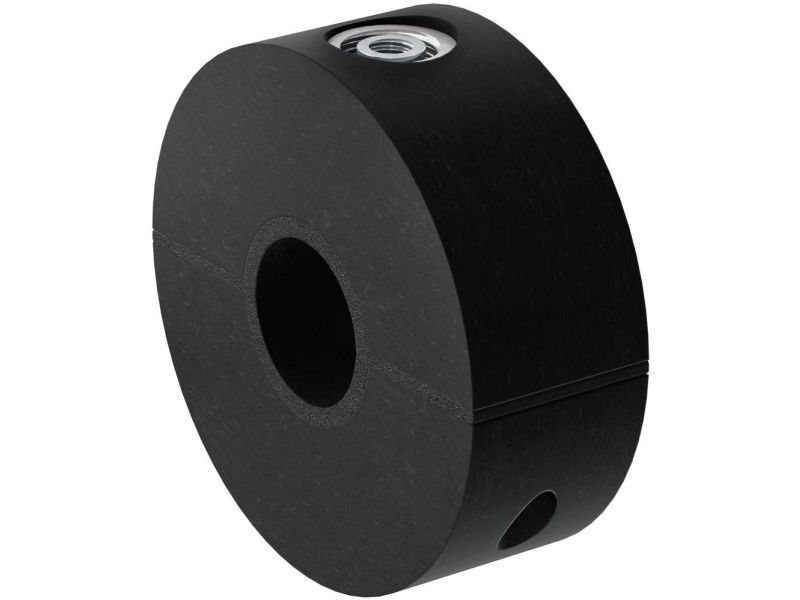

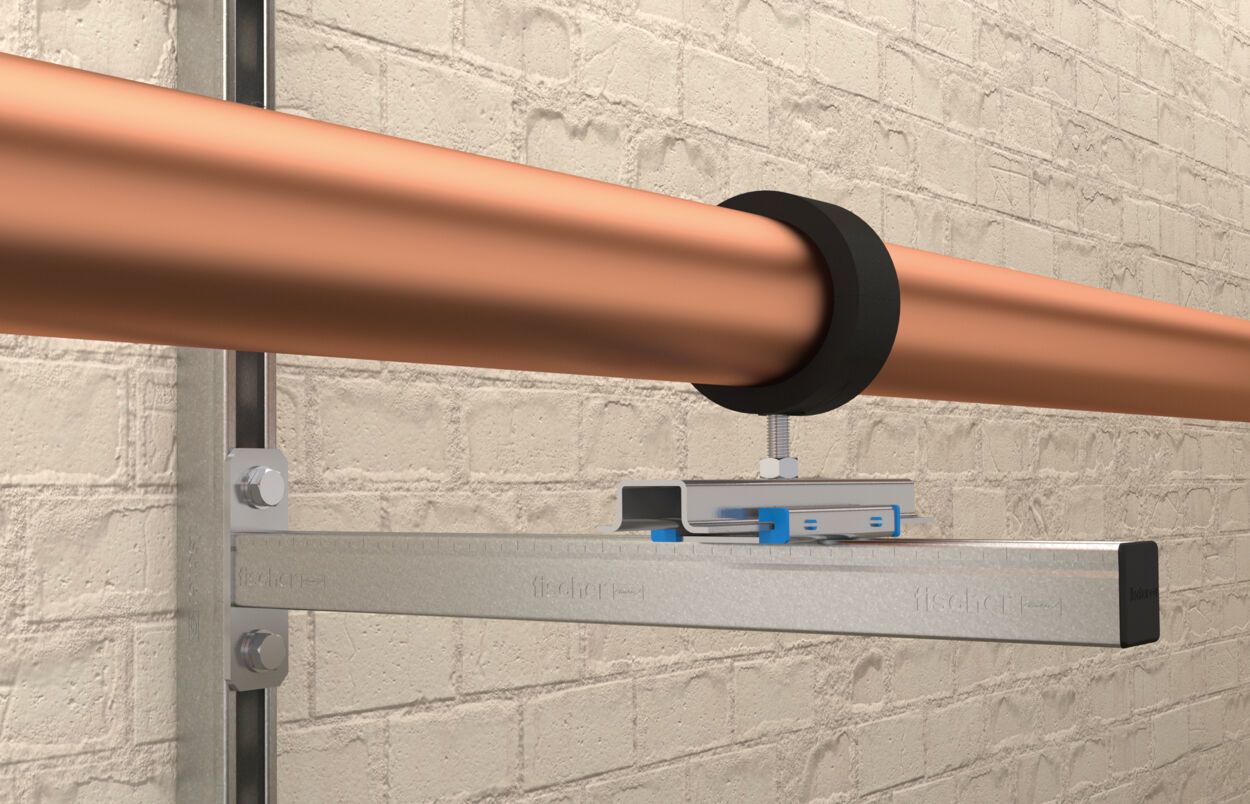

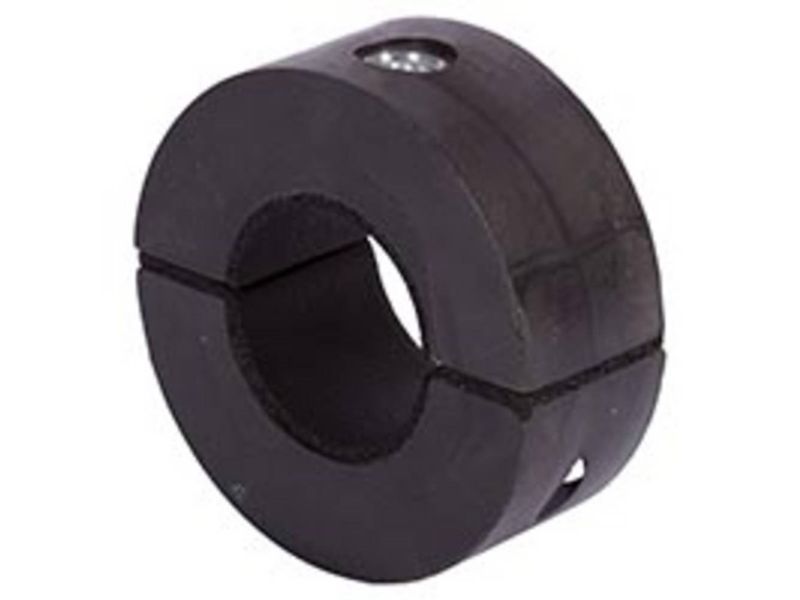

The fischer refrigeration pipe clamp KFT 104.0 with an internal diameter of 104.0 mm made from closed PUR foam allows for use with all standard insulation materials for installing pipelines in refrigeration and air-conditioning technology with high load bearings. Connecting nut with triplet thread M8 / M10 / 1/2" allows for pipe fixing with increased bending stress. Pipe clamp screws with loss protection.

Advantages
- The refrigeration pipe clamp KFT made from closed PUR foam can be used with all standard insulation materials.
- The glued rubber overlay makes the installation easier.
- The triple-threaded connection nut M8 / M10 / 1/2" allows for flexibility during the installation.
- Age-resistant material ensures the long-term functionality of the KFT.
- The two screws allow an easy adjustment to suit the outer pipe diameter.

Properties
- Material: closed-cell polyurethane foam, silicone-free
- Diffusion resistance: 1000 µ
- Density: 250 kg/m³
- Compression strength: 3,96 mPa at 23 °C
- Heat conductivity (at 0 °C): 0,049 W/(m*K)
- Temperature range: -160 °C to +130 °C
- Fire behaviour: DIN 4102: Class B2
