Aikarele Monitoimiajastimet 24-240VAC/DC 2-napainen tappi
Tuotenumero: [6576885] | Valmistaja: CARLO GAVAZZI | Mallinum: PMB01DM24 | EAN: 8030956000092 | UNSPSC.: 39122329 | EL-nr.: 7823203702
Etävarastossa
Tuotetta on etävarastossamme. Toimitusaika noin 3-4 työpäivää.
Toimitusvaihtoehdot - Valitaan kassalla
Budbee Laatikko - Nouda valitsemastasi laatikosta!
Ilmainen toimitus
Bring - Toimitus huoltopisteeseen
7,02
Bring - Kotiinkuljetus -arkisin.
10,03
Toimituskulut on laskettu vastaanottajan postinumeron perusteella:00180 - Helsinki Vaihda postinumero
Syötä postinumero toimitusta varten:
EUR
115,79
ilman ALV 92,26
Kokonaishinta sis. toimitus
115,79
Tämä toiminto vaatii sisäänkirjautumisen. Luo käyttäjä ja voit käyttää listojamme esim. säännöllisiä ostoksia ja toivelistoja varten
Luo käyttäjä
Kirjaudu
Luo käyttäjä
Kirjaudu
Send på mail

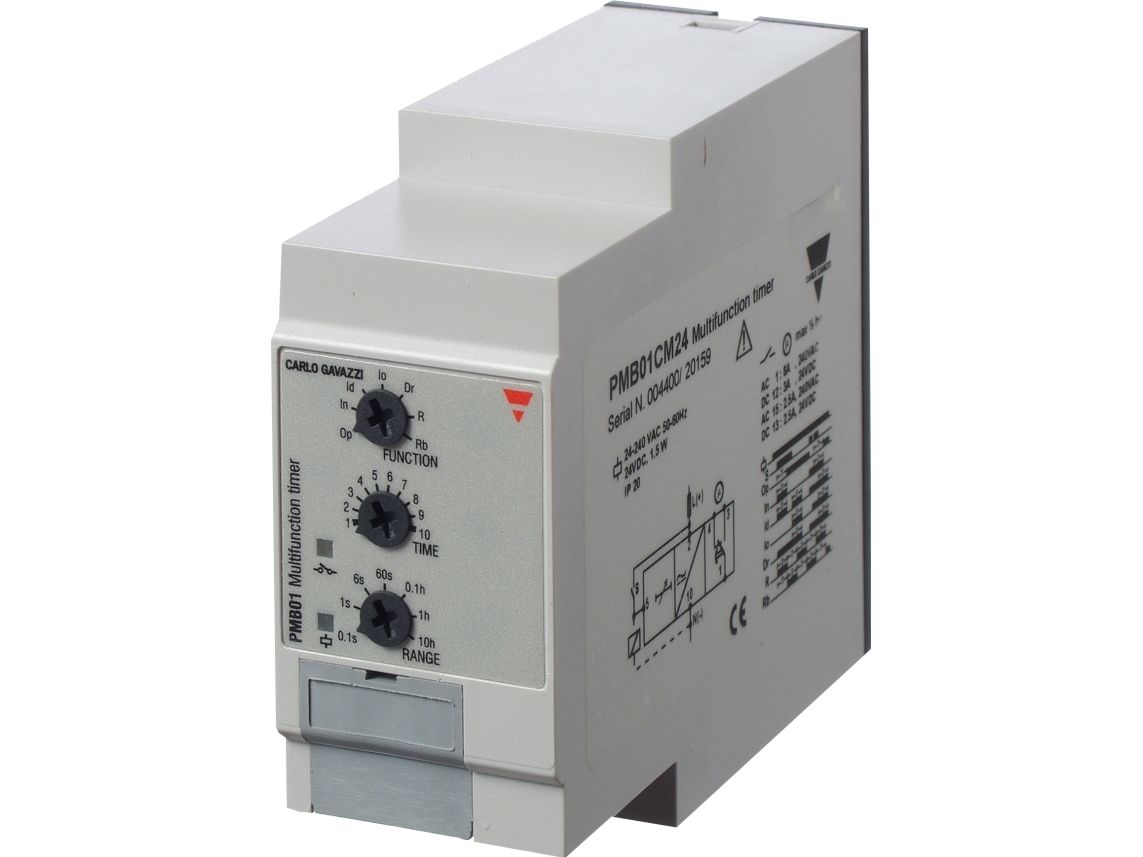

Carlo Gavazzi Multi-function Timer Relay
The Carlo Gavazzi multi-function timer relay is compact, electromechanical equipment with high precision. It performs the functions of providing selectable functions like delay on, delay on release, double interval, interval, interval on trigger open, asymmetrical recycler off, and symmetrical recycler on in the range of 0.1 seconds to 100 hours. This is easy to use and quick to configure. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
7 selectable time ranges in the range of 0.1 seconds to 100 hours like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1hours to 1 hour, 1hour to 10 hours and 10 hours to 100 hours
Automatic and manual start options
7 selectable functions
Knob selection of time range
Knob-adjustable time setting
4C/O DPDT contact configuration with relay output of 8A
For mounting on Plug-in
Repeatability of 0.2%
Supply voltage 24VDC to 240VDC and 24VAC to 240VAC
LED status indication available to provide details of relay status and power supply on
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IEC 60664
IEC 60038
EN 60529
IP20 rated
UL approved
RINA certified
CSA certified
CE certified
IEC EN 60947
EN 61000-6-2
EN 61000-6-3
EN 61812-1
The Carlo Gavazzi multi-function timer relay is compact, electromechanical equipment with high precision. It performs the functions of providing selectable functions like delay on, delay on release, double interval, interval, interval on trigger open, asymmetrical recycler off, and symmetrical recycler on in the range of 0.1 seconds to 100 hours. This is easy to use and quick to configure. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
7 selectable time ranges in the range of 0.1 seconds to 100 hours like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1hours to 1 hour, 1hour to 10 hours and 10 hours to 100 hours
Automatic and manual start options
7 selectable functions
Knob selection of time range
Knob-adjustable time setting
4C/O DPDT contact configuration with relay output of 8A
For mounting on Plug-in
Repeatability of 0.2%
Supply voltage 24VDC to 240VDC and 24VAC to 240VAC
LED status indication available to provide details of relay status and power supply on
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IEC 60664
IEC 60038
EN 60529
IP20 rated
UL approved
RINA certified
CSA certified
CE certified
IEC EN 60947
EN 61000-6-2
EN 61000-6-3
EN 61812-1
