Fischer 539570, Putkenkiinnitin, Terästä, 94 - 100 mm, Sinkittyä terästä, M8, EN 10025, DIN EN 10346, EN 20898-1

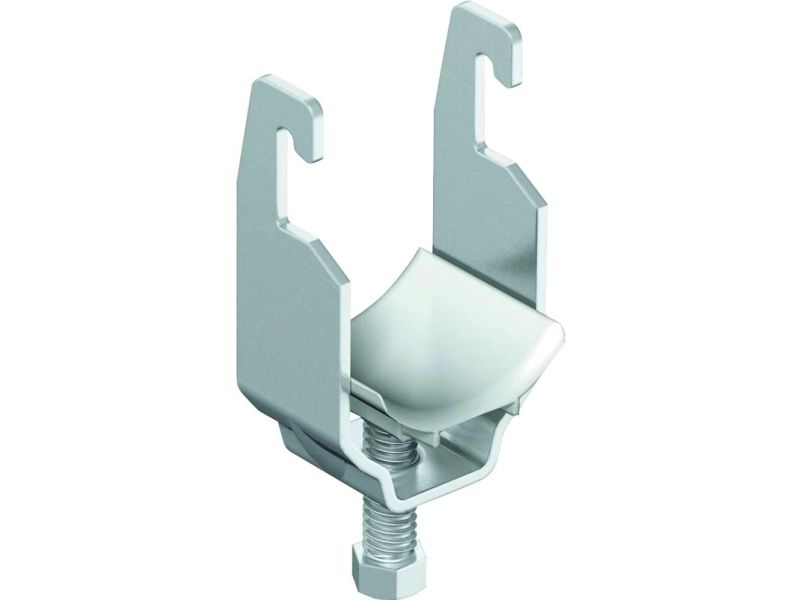

The fischer U-clamp FUBD is a time-saving and cost-saving pipe clamp and cable clip for directly fixing conduits to fischer mounting rails FUS in buildings. The FUBD without a sound insulation insert is ideal for fixing conduits made of metal or plastic, or cables, with an outer diameter of 35 to 100 mm. In the pre-mounted U-clamp, a pressure cup is supported by a screw plug that ensures optimum adjustment in line with the outer diameter of the conduit and also acts as a fixing aid. This means that additional accessories such as threaded rods and channel nuts are not necessary. This saves time and money.

Advantages
- The FUBD without soundproofing is ideal for use in industrial applications, for example, for fixing lightweight flexible supply lines in the immediate area of production machines.
- Locking screw with hexagonal and slot drive.
- Quick adaptation to the desired outside pipe diameter by fastening the pressure pan.
- No loss of parts due to preassembled parts.
- Time- and cost-saving installation without the need of accessories like threaded rods or sliding nuts.

Properties
- Material U-Strap: steel S235JRC (Werkstoff-Nr.: 1.0122) acc. to EN 10025
- Zinc plating U-Strap: hot-dip galvanised
- Material Pressure pan: steel DX51D acc. to DIN EN 10346
- Zinc plating Pressure pan: electro zinc plated
- Material Locking screw: steel 4.6 acc. to EN 20898-1
- Locking screw: with hexagonal SW10 and slot head
