Megasat HD 3 Kompakt V3, 950 - 2150 MHz, 1 kpl, Musta, LCD, 12 V, Laatikko
Tuotenumero: [7429014] | Valmistaja: Megasat | Mallinum: 2600021 | EAN: 4046173108460
Päävarastossa
Päävarastossa. Tilaa ennen klo 15:00 niin pyrimme lähettämään tuotteen tänään. (arkipäivisin) Lisätietoja
VARASTOTARJOUS
Tuotetta on päävarastossa 1 kappaletta
Nykyinen hinta on voimassa niin kauan kuin erää on jäljellä varastossa.
Toimitusvaihtoehdot - Valitaan kassalla
Budbee Laatikko - Nouda valitsemastasi laatikosta!
Ilmainen toimitus
Bring - Toimitus huoltopisteeseen
Ilmainen toimitus
Bring - Kotiinkuljetus -arkisin.
10,03
Toimituskulut on laskettu vastaanottajan postinumeron perusteella:00180 - Helsinki Vaihda postinumero
Syötä postinumero toimitusta varten:
EUR
144,25
ilman ALV 114,94
Kokonaishinta sis. toimitus
144,25
Tämä toiminto vaatii sisäänkirjautumisen. Luo käyttäjä ja voit käyttää listojamme esim. säännöllisiä ostoksia ja toivelistoja varten
Luo käyttäjä
Kirjaudu
Luo käyttäjä
Kirjaudu
Send på mail
Measurement of satellite signals (DVB-S and DVB-S2) on a 2.7 inch screen. Compact design with all important measurement data on the display.
Fast and accurate satellite search

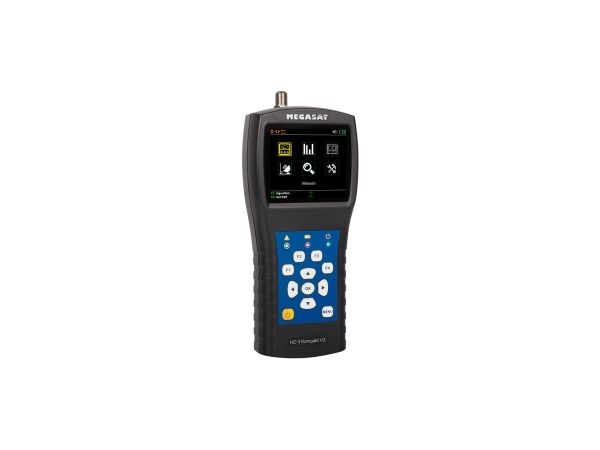

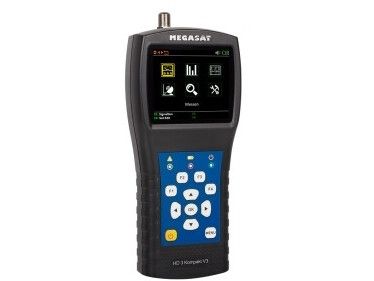

The HD 3 Kompakt V3 is a handy measuring device and ideally suited for a fast and accurate satellite search. The measurement of DVB-S and DVB-S2 (HD) signals is possible. The built-in LCD display offers a screen diagonal of 2.7 inches (6.9 cm). Operation is child's play with the clear and well-structured screen interface. In the live measurement all important information such as satellite, transponder, C/N, BER and dBµV are displayed.
Spectrum analysis for troubleshooting
To evaluate the signal of the satellite system and to analyze possible reception errors, use the spectrum analysis running in almost real time. Due to the constantly updated display of the diagram, the spectrum is changed immediately when the dish, is moved.
Angle calculation for quick alignment
The angle calculation helps you to determine the vertical and horizontal angle of the antenna, because elevation and azimuth change depending on the location. Simply enter the data of the location and the measuring instrument quickly calculates the appropriate angle settings for the dish. This makes it easier to find the desired satellite.
Transponder control
The transponder control is a function to evaluate the signal strength and quality of several transponders simultaneously. This is helpful when calibrating Quattro LNBs. The transponders can be selected and switched through at will. The satellite signal is permanently updated.
Fast and accurate satellite search
The HD 3 Kompakt V3 is a handy measuring device and ideally suited for a fast and accurate satellite search. The measurement of DVB-S and DVB-S2 (HD) signals is possible. The built-in LCD display offers a screen diagonal of 2.7 inches (6.9 cm). Operation is child's play with the clear and well-structured screen interface. In the live measurement all important information such as satellite, transponder, C/N, BER and dBµV are displayed.
Spectrum analysis for troubleshooting
To evaluate the signal of the satellite system and to analyze possible reception errors, use the spectrum analysis running in almost real time. Due to the constantly updated display of the diagram, the spectrum is changed immediately when the dish, is moved.
Angle calculation for quick alignment
The angle calculation helps you to determine the vertical and horizontal angle of the antenna, because elevation and azimuth change depending on the location. Simply enter the data of the location and the measuring instrument quickly calculates the appropriate angle settings for the dish. This makes it easier to find the desired satellite.
Transponder control
The transponder control is a function to evaluate the signal strength and quality of several transponders simultaneously. This is helpful when calibrating Quattro LNBs. The transponders can be selected and switched through at will. The satellite signal is permanently updated.
