Fischer 558527, Putkenkiinnitin, Terästä, Musta, 40 - 45 mm, 3,18 cm (1.25"), EPDM-kumi, Sinkittyä terästä, 2,5 kN
Tuotenumero: [7721532] | Valmistaja: Fischer | Mallinum: 558527 | EAN: 4048962413182
Etävarastossa
Tuotetta on etävarastossamme, toimitusaika noin 7-9 työpäivää. Lisätietoja
Toimitusvaihtoehdot - Valitaan kassalla
Budbee Laatikko - Nouda valitsemastasi laatikosta!
Ilmainen toimitus
Bring - Toimitus huoltopisteeseen
Ilmainen toimitus
Bring - Kotiinkuljetus -arkisin.
15,12
Toimituskulut on laskettu vastaanottajan postinumeron perusteella:00180 - Helsinki Vaihda postinumero
Syötä postinumero toimitusta varten:
EUR
307,61
ilman ALV 245,11
Kokonaishinta sis. toimitus
307,61
Lisää listaan
Tämä toiminto vaatii sisäänkirjautumisen. Luo käyttäjä ja voit käyttää listojamme esim. säännöllisiä ostoksia ja toivelistoja varten
Send på mail
The large pipe clamp with sound insulation insert for medium to heavy loads.
Advantages
- High tested loads guarantee save functioning of the FRSM.
- The combination connecting nut with thread M10/M12, M12/M16 or M16 allows for optimised mounting choices.
- From Ø 124 mm it is possible to install with 2 threaded rods, e.g. for the fixing of cast iron roof drainage pipes.
- The two screws allow for easy adjustment to suit the outer pipe diameter.
- The screw’s safety features ensures trouble-free installation.
- The surface coating enables a high corrosion protection against humidity, water, salt water, and other corrosive materials.

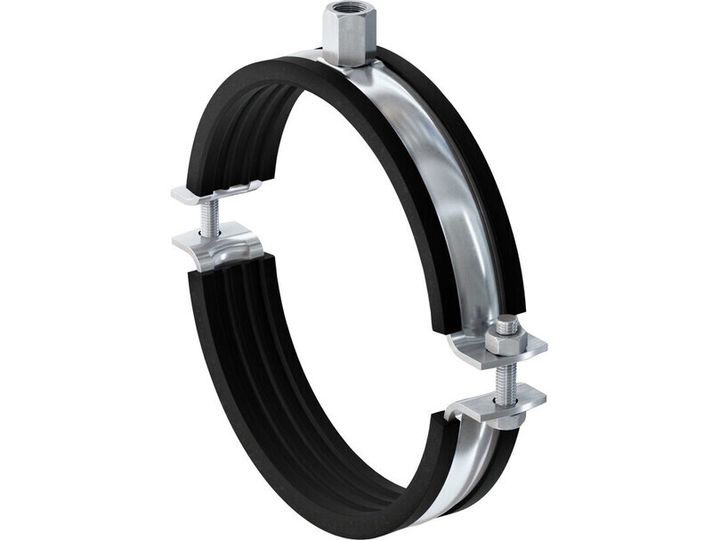

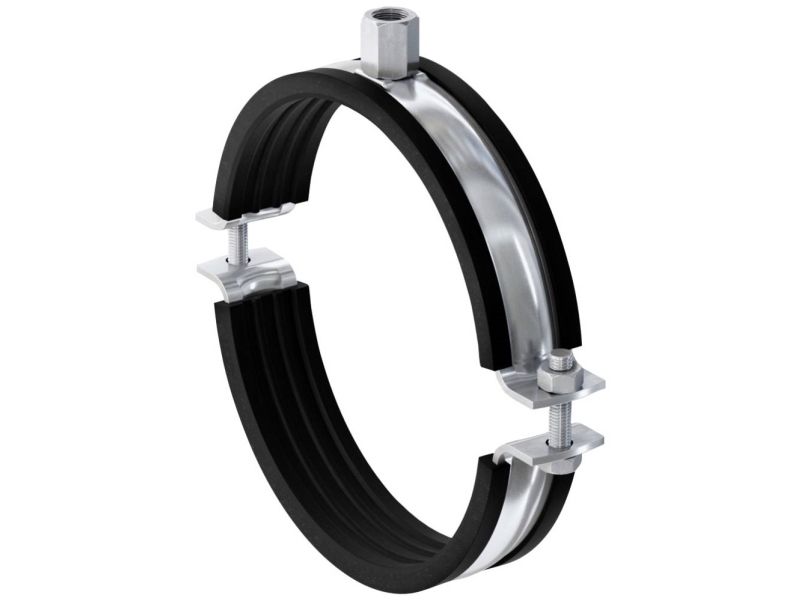

The fischer heavy duty pipe clamp FRSM 1 1/4" M10/M12 hdg with sound insulation insert for fixing medium to heavy pipelines with threaded rods or hanger bolts. The two screws allow for ideal adaptation to suit the outer pipe diameter. Connecting nut with combination thread M10 / M12 for holding threaded rods or hanger bolts. Pipe clamp screws with loss protection.
Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: hot-dip galvanised
- Connecting nut: M10 / M12 = SW 17, M12 / M16 = SW 22, M16 = SW 24
- Locking screw: hexagon screw with nut
- Material sound insulation insert: EPDM; chlorine-free; silicone-free
- Temperature range: -50 °C to +110 °C
- Hardness: 45 ± 5° Shore A
- Fire behaviour: DIN 4102: Class B2
Advantages
- High tested loads guarantee save functioning of the FRSM.
- The combination connecting nut with thread M10/M12, M12/M16 or M16 allows for optimised mounting choices.
- From Ø 124 mm it is possible to install with 2 threaded rods, e.g. for the fixing of cast iron roof drainage pipes.
- The two screws allow for easy adjustment to suit the outer pipe diameter.
- The screw’s safety features ensures trouble-free installation.
- The surface coating enables a high corrosion protection against humidity, water, salt water, and other corrosive materials.
The fischer heavy duty pipe clamp FRSM 1 1/4" M10/M12 hdg with sound insulation insert for fixing medium to heavy pipelines with threaded rods or hanger bolts. The two screws allow for ideal adaptation to suit the outer pipe diameter. Connecting nut with combination thread M10 / M12 for holding threaded rods or hanger bolts. Pipe clamp screws with loss protection.
Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: hot-dip galvanised
- Connecting nut: M10 / M12 = SW 17, M12 / M16 = SW 22, M16 = SW 24
- Locking screw: hexagon screw with nut
- Material sound insulation insert: EPDM; chlorine-free; silicone-free
- Temperature range: -50 °C to +110 °C
- Hardness: 45 ± 5° Shore A
- Fire behaviour: DIN 4102: Class B2
