Schneider Electric MCSESU053FN0, Hallitsematon, Fast Ethernet (10/100), DIN-kisko

Schneider Electric MCSESU053FN0

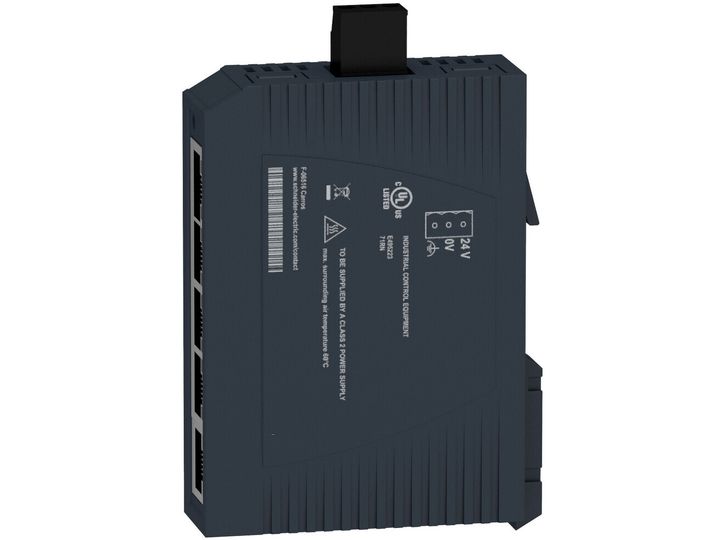

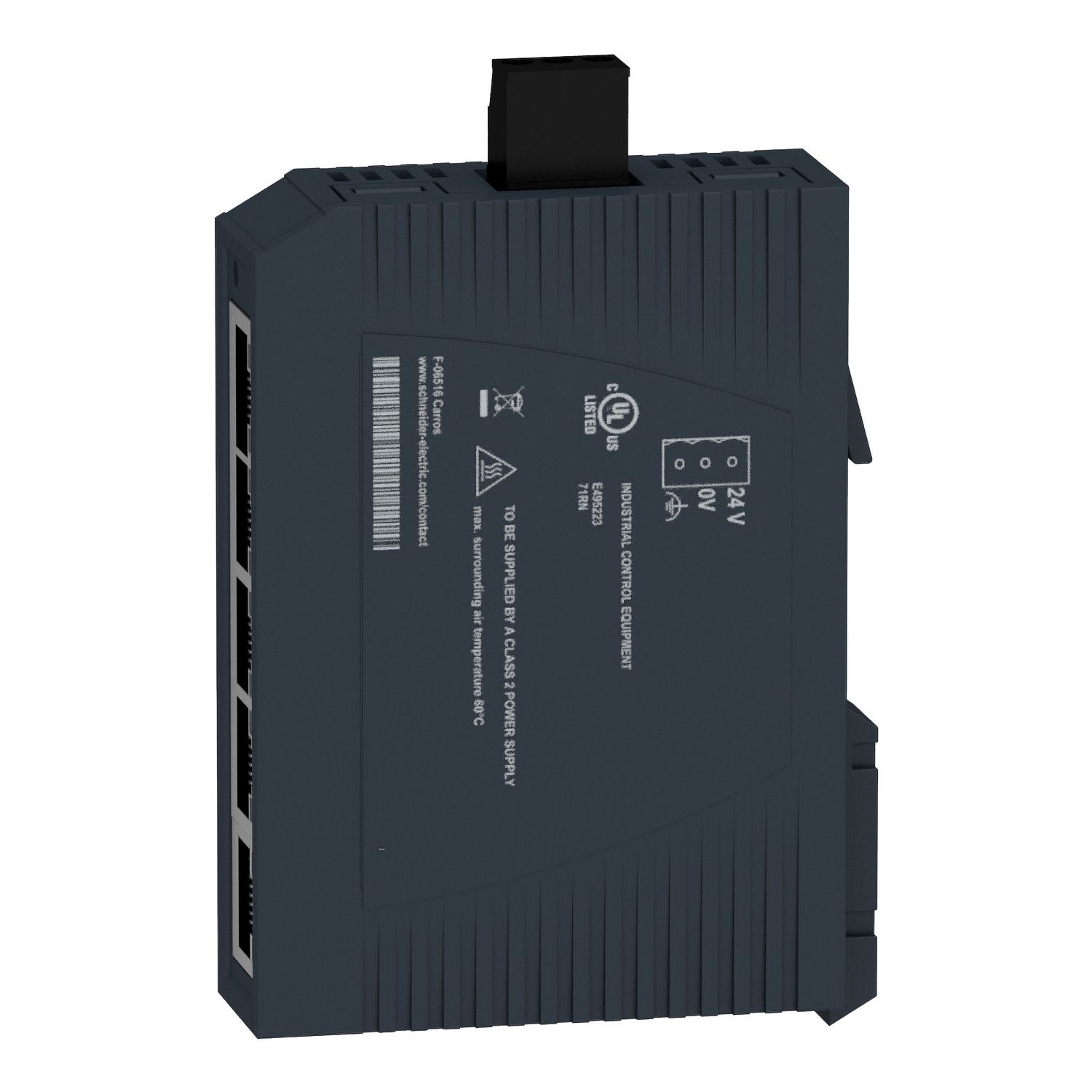

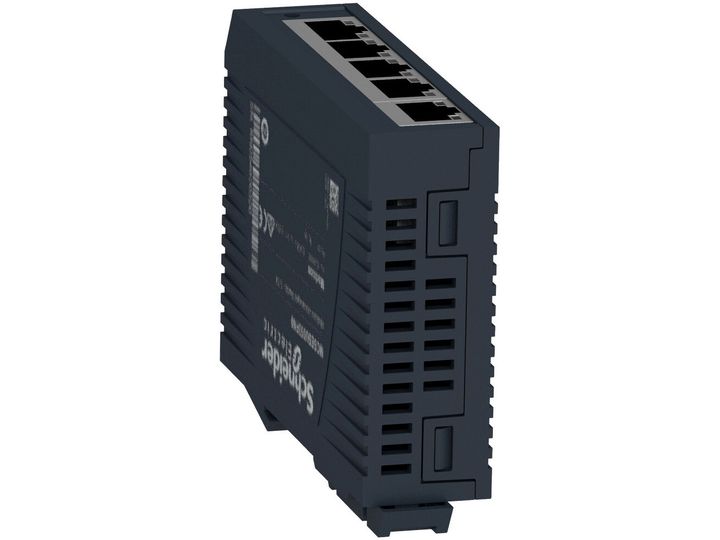

This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 5 transmission ports copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.3W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.125 kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

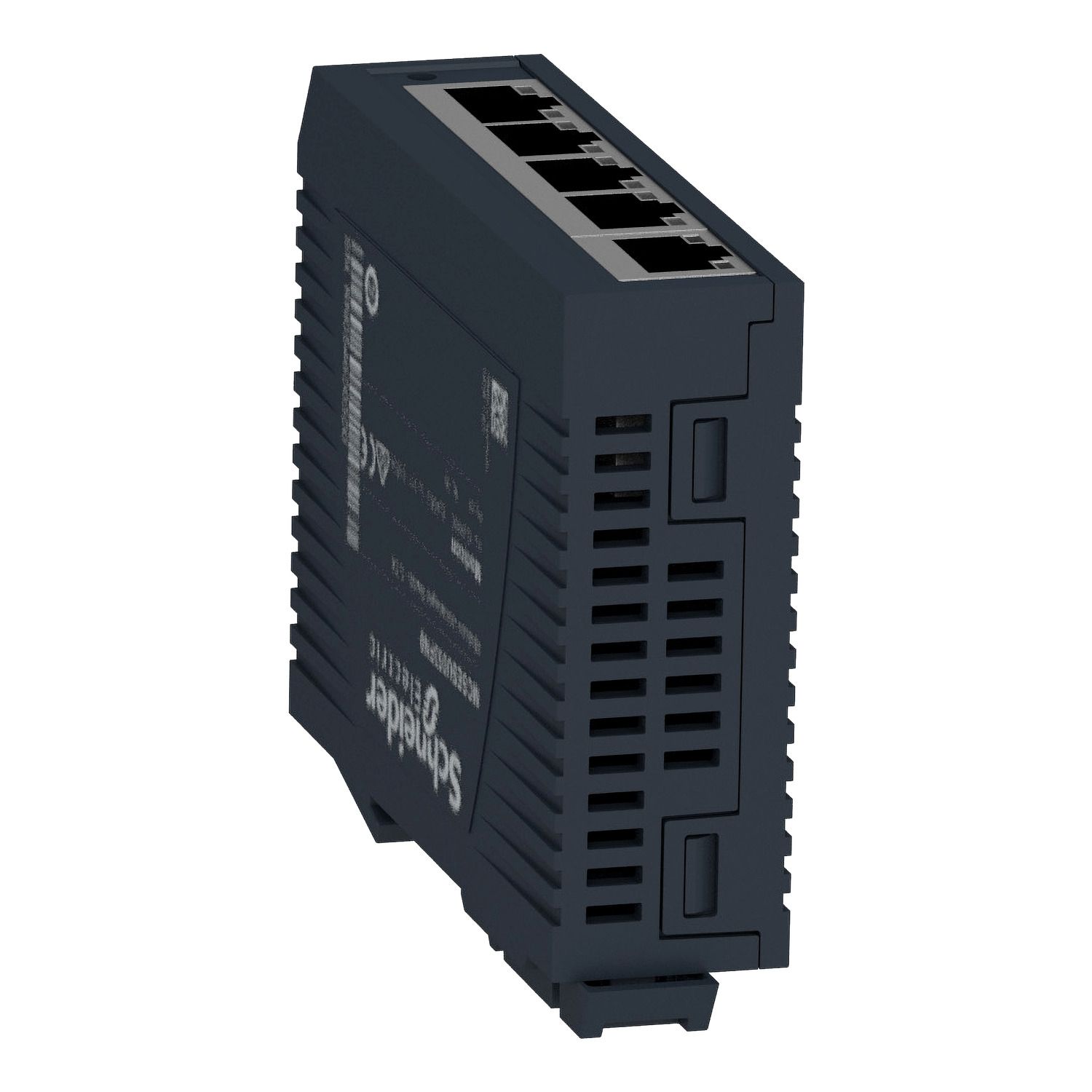

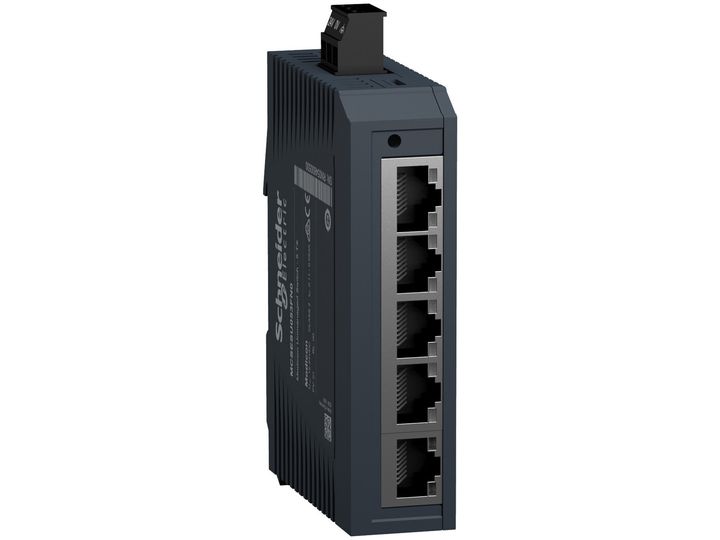

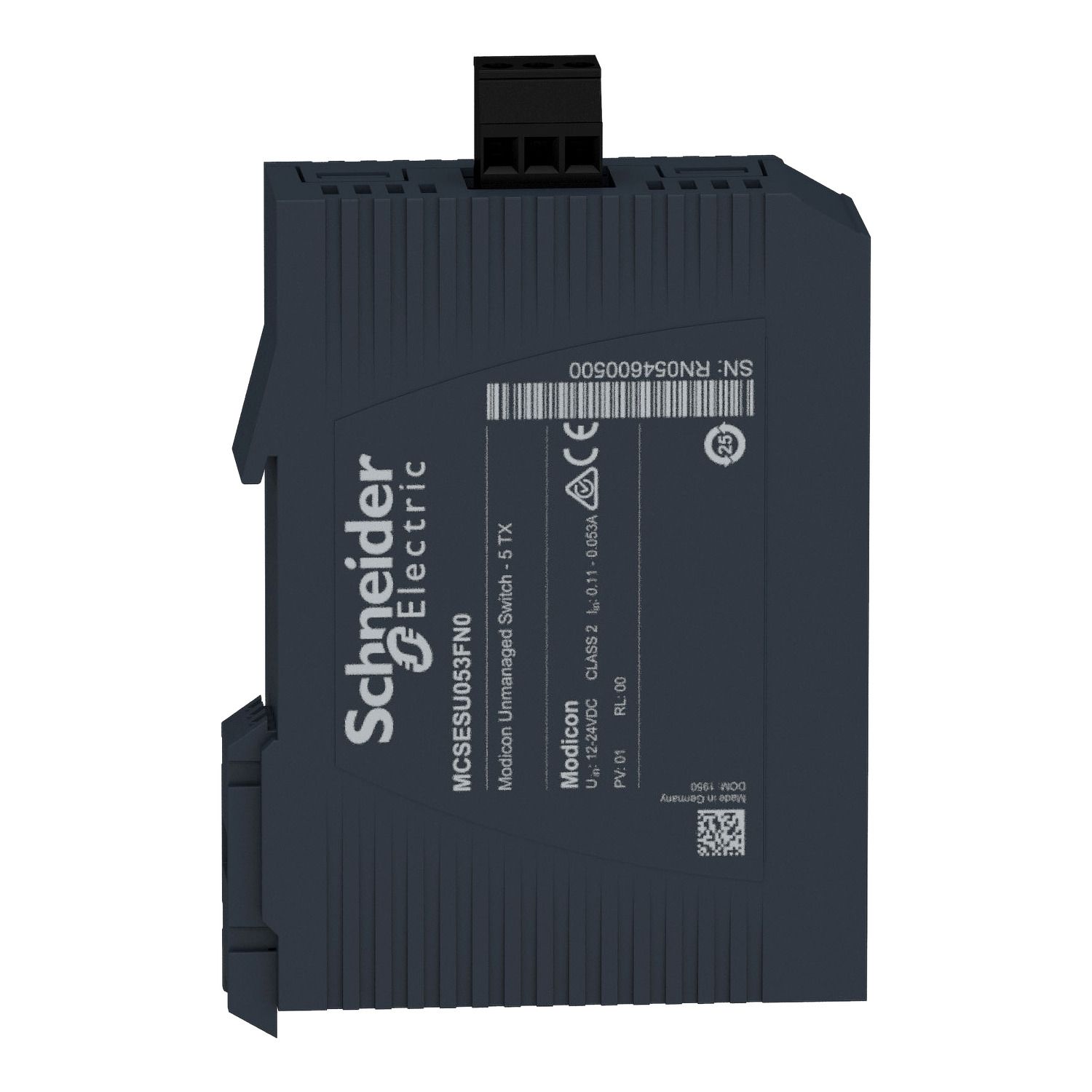

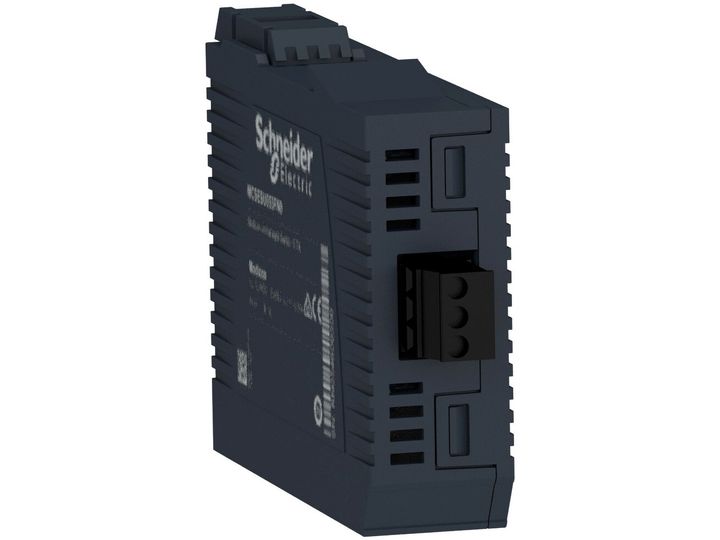

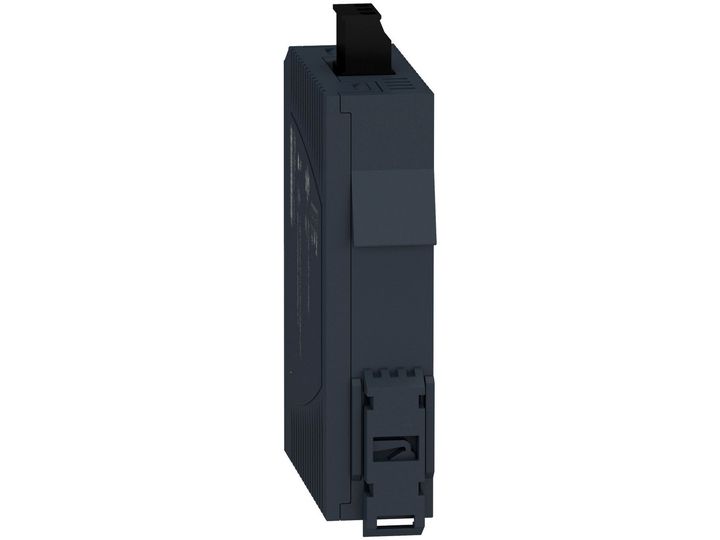

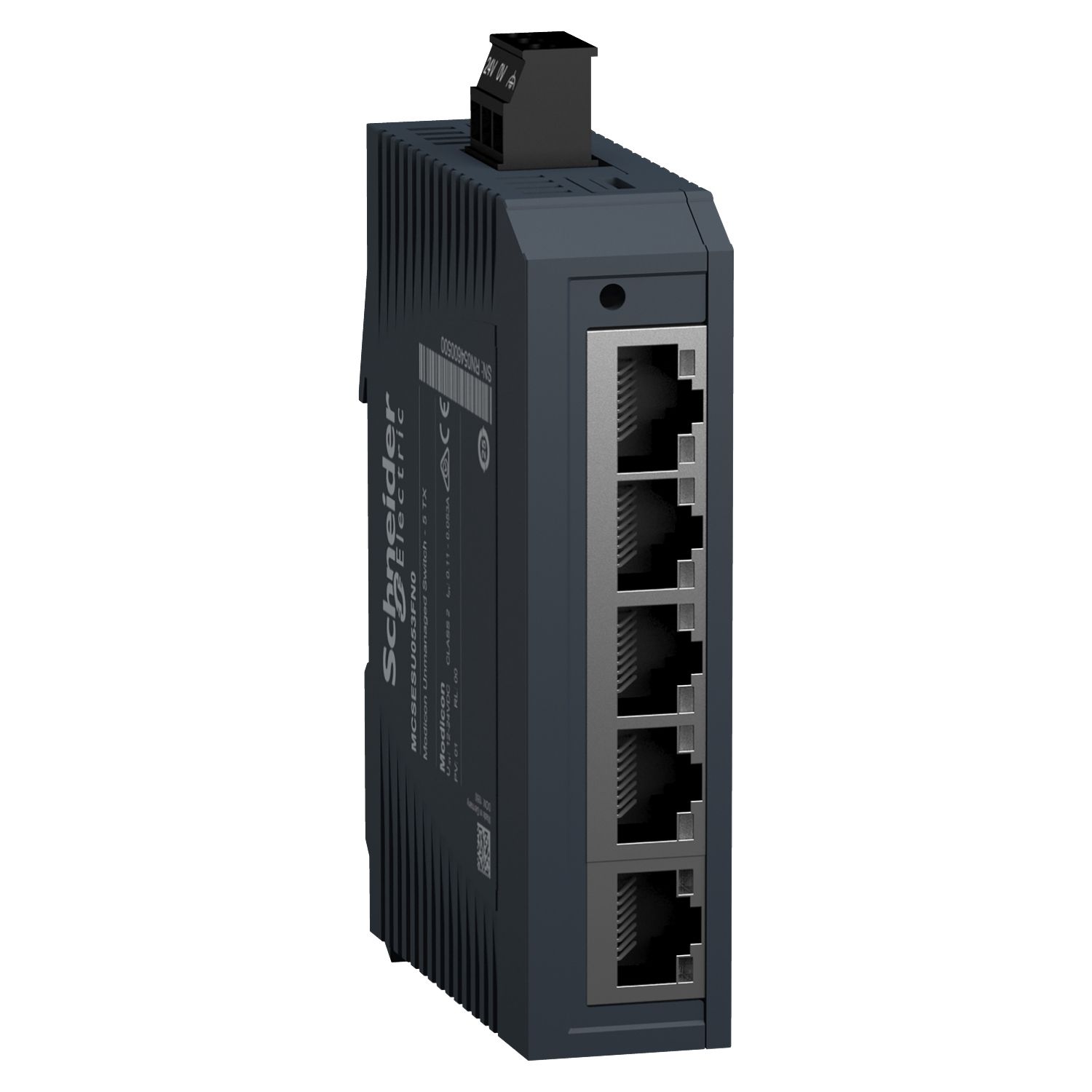

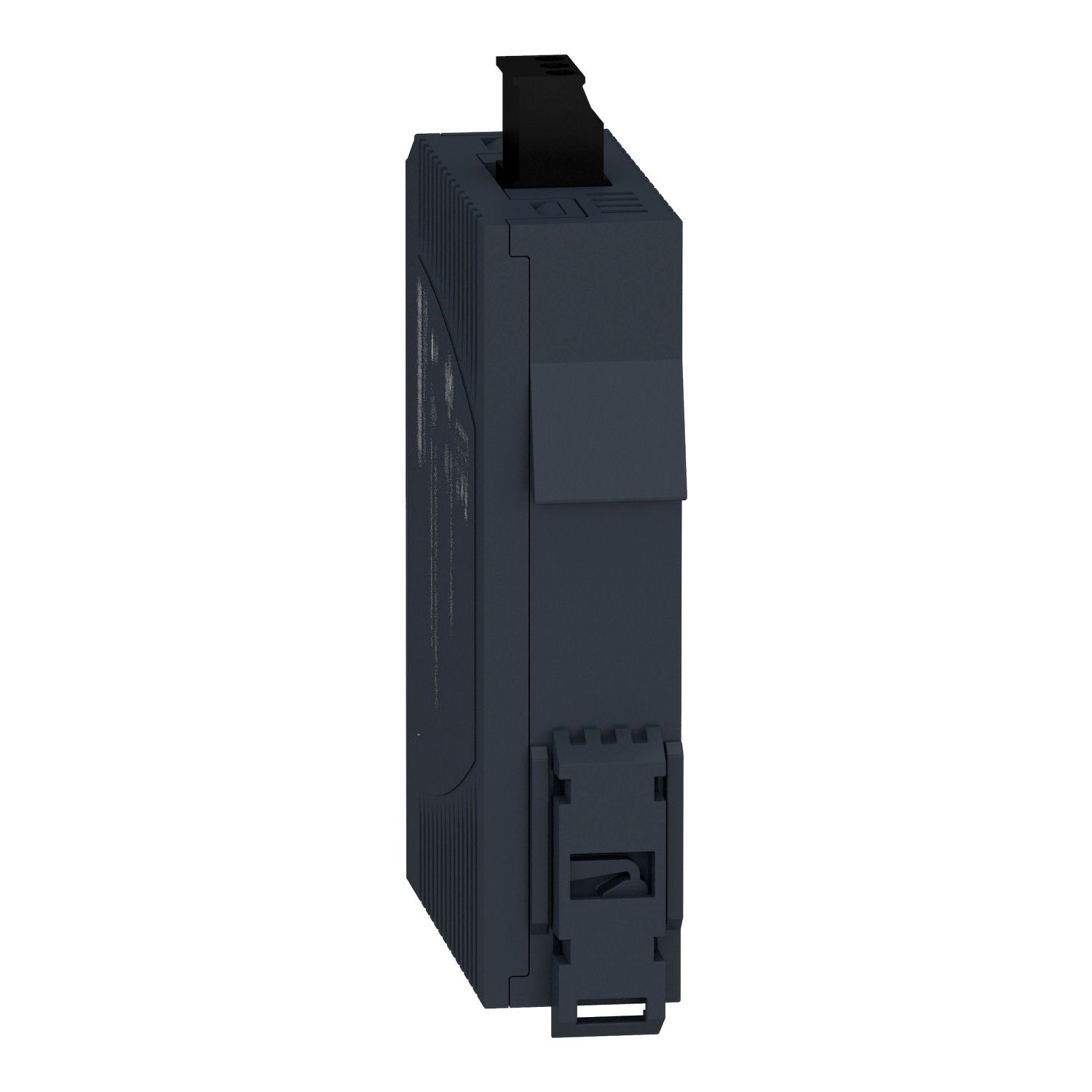

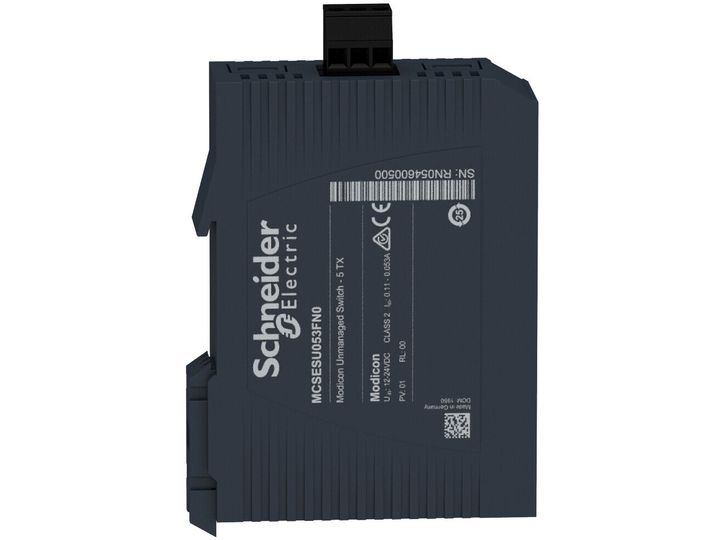

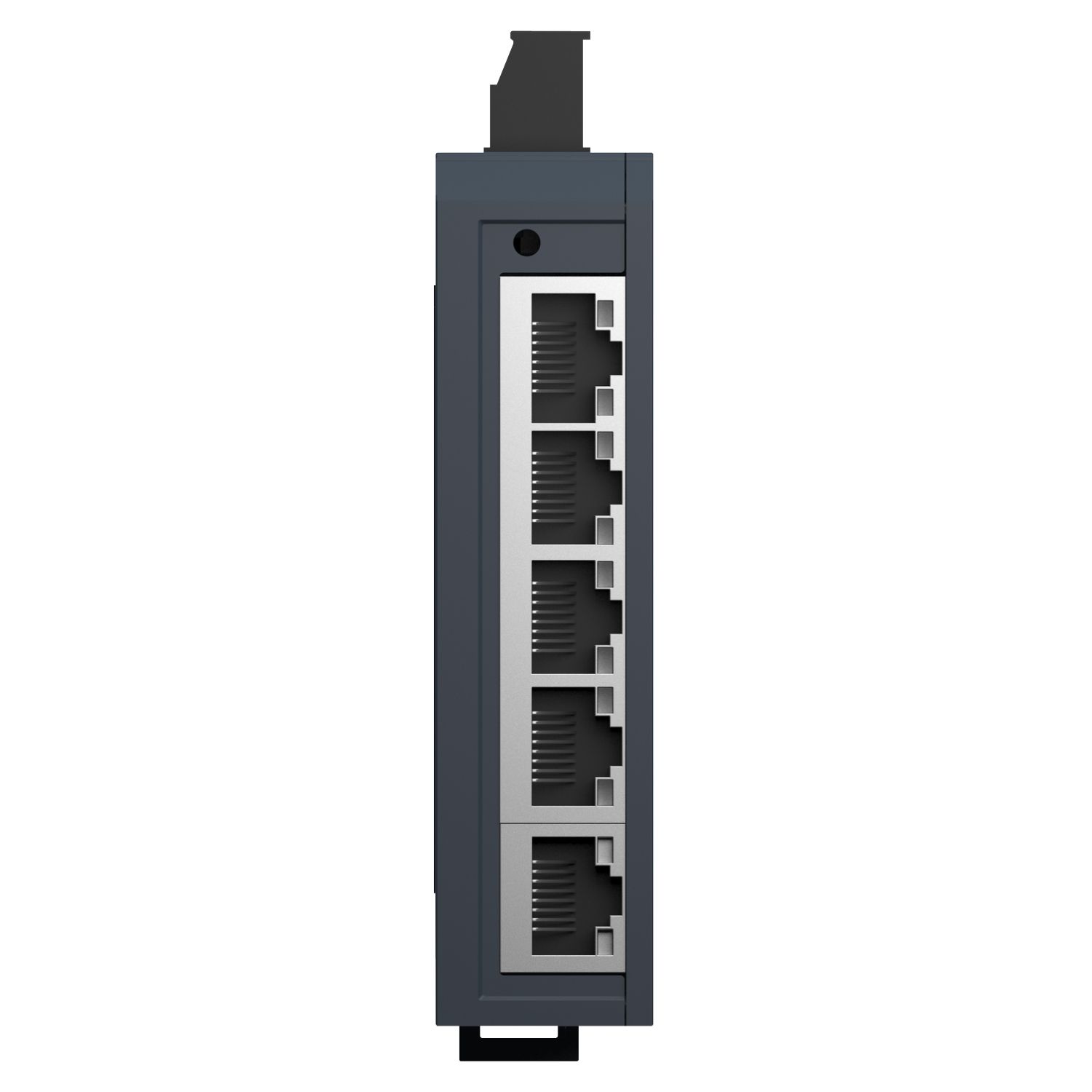

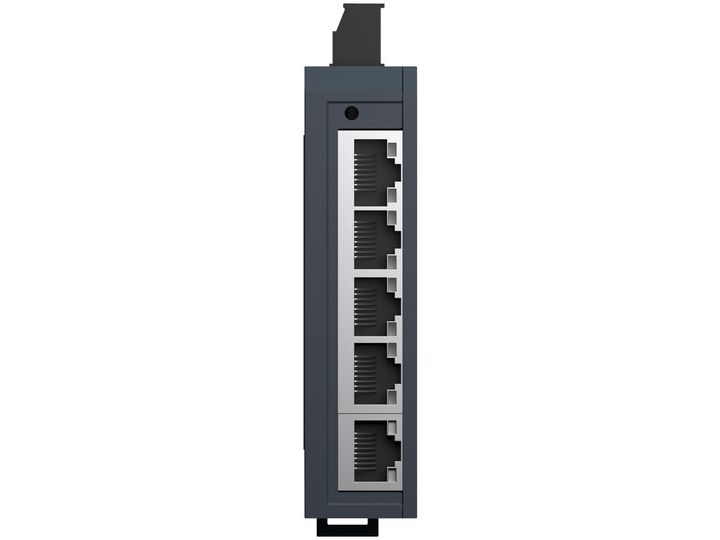

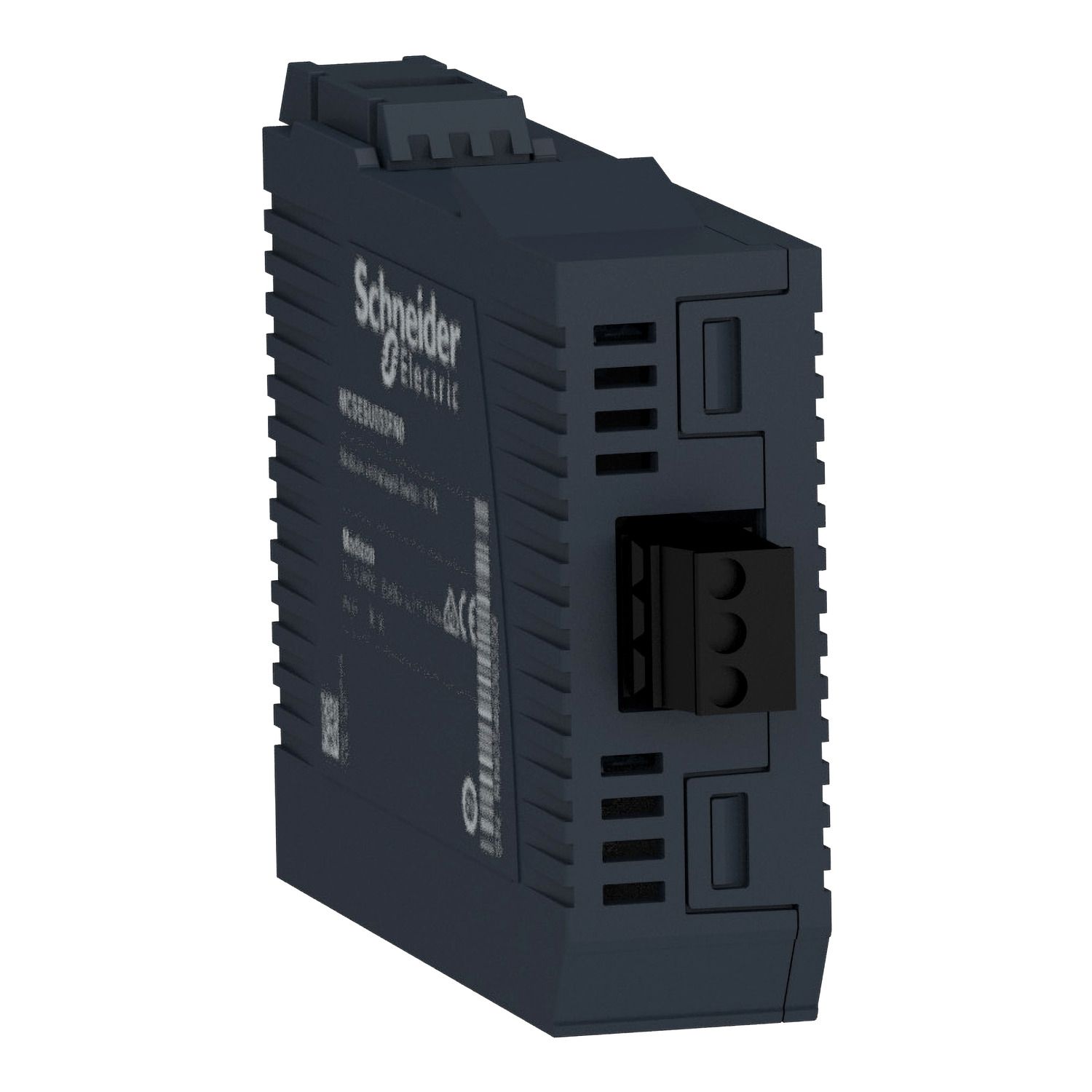

The Schneider Electric Network Switch is a standard unmanaged switch with 5 ports for copper connections. The integrated connection type utilizes shielded RJ45 copper cables, and it supports transmission through twisted shielded pairs cable CAT 5E. The maximum cable distance between devices is 100 meters for copper cables. With a rated supply voltage ranging from 12 to 24 V and supply voltage limits of 9.6 to 32 V DC SELV, the switch consumes 1.3 W of power. Electrical connection is achieved through a removable 3 way power supply connector. The switch is designed for mounting on a 35 mm symmetrical DIN rail and is marked with CE, UL, and RCM certifications.
Mercury free
RoHS compliant
IP30 degree of protection
Green Premium product
