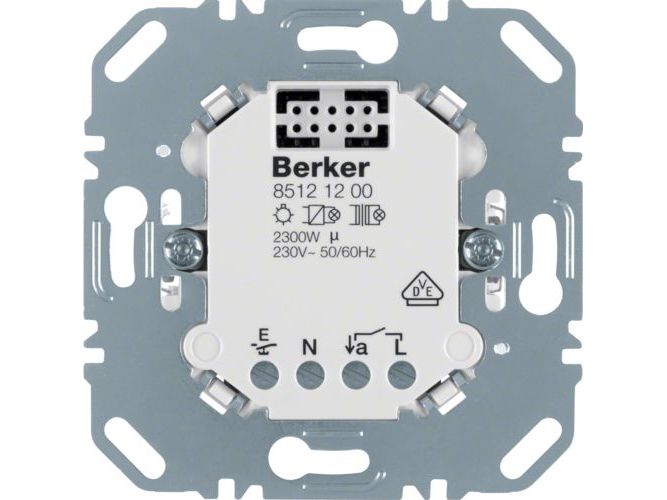

Berker 85121200, Metallinen, Valkoinen, 230 V, 50 - 60 Hz, 1500 VA, -5 - 45 °C

Voltage
Operating voltage 230 V AC
Power
Dimmable conventional transformers 1500 VA
Power consumption, standby (Channel 1/Channel 2) < 0.3/0.7 W
Power consumption (standby) < 0,3 W
Minimum contact load ˜ 15 W
Electronic transformers and dual-mode transformers 1500 W
Measurement
Relative humidity (without condensation) 0 … 65 % (without condensation)

with extension unit input for push-button (NO contact), single-surface operation and motion detector extension unit

Materials
Material Plastic/metal

no conductive connection between supporting ring and spreading claws

Dimensions
Insertion depth 32 mm
Housing installation depth 22 mm
Claw guidance installation depth 32 mm
Lighting control
- with electronical ballast (EB) 1000 W
- uncompensated 1100 VA
Fluorescent bulbs control
Dimmable energy-saving lamps 440 W
Compact fluorescent lamps with electronic ballast 22 x 20 W
- in duo circuit 1000 W
- parallel compensated 1000 W /130 µF
LED control
230 V retrofit LED lamps 440 W
Incandescent bulbs control
230 V incandescent lamps and halogen lamps 2300 W
Installation, mounting

with spreader claws

Connection
Screw terminals (max.) 2 x 1,5/1 x 2,5 mm²
Number of substations unlimited

with screw terminals

Cable
Load cable length max. 100 m
Cable length, extensions max. 50 m
Equipment

also usable as push-button relay switch

Use conditions
Operating temperature -5 … 45 °C
